SMC Networks HRL100-A 40 Series

HRX-OM-X037
Chapter 3 Transport and Setting Up
HRL Series 3.3 Installation
3-17
4. Connect the power supply cable and the ground cable as shown in the figure below.

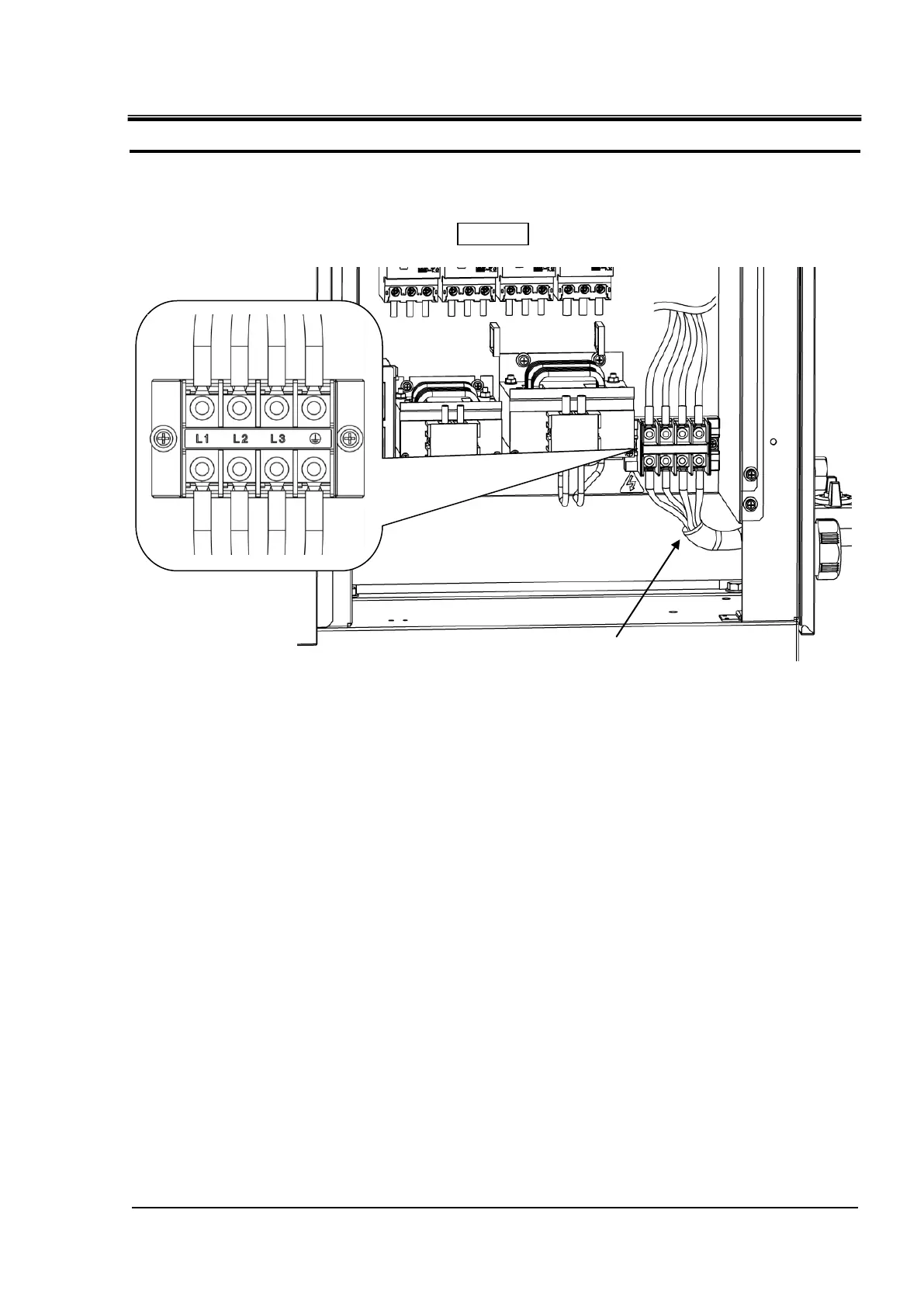

Fig. 3-10 Wiring of power supply cable
* Connect an over current protection to the power cable connected to the equipment to avoid hazard.
power supply cable
View A
