HRX-OM-X037
Chapter 3 Transport and Setting Up
3.3 Installation
HRL Series
Wiring of communication cable
Configuration

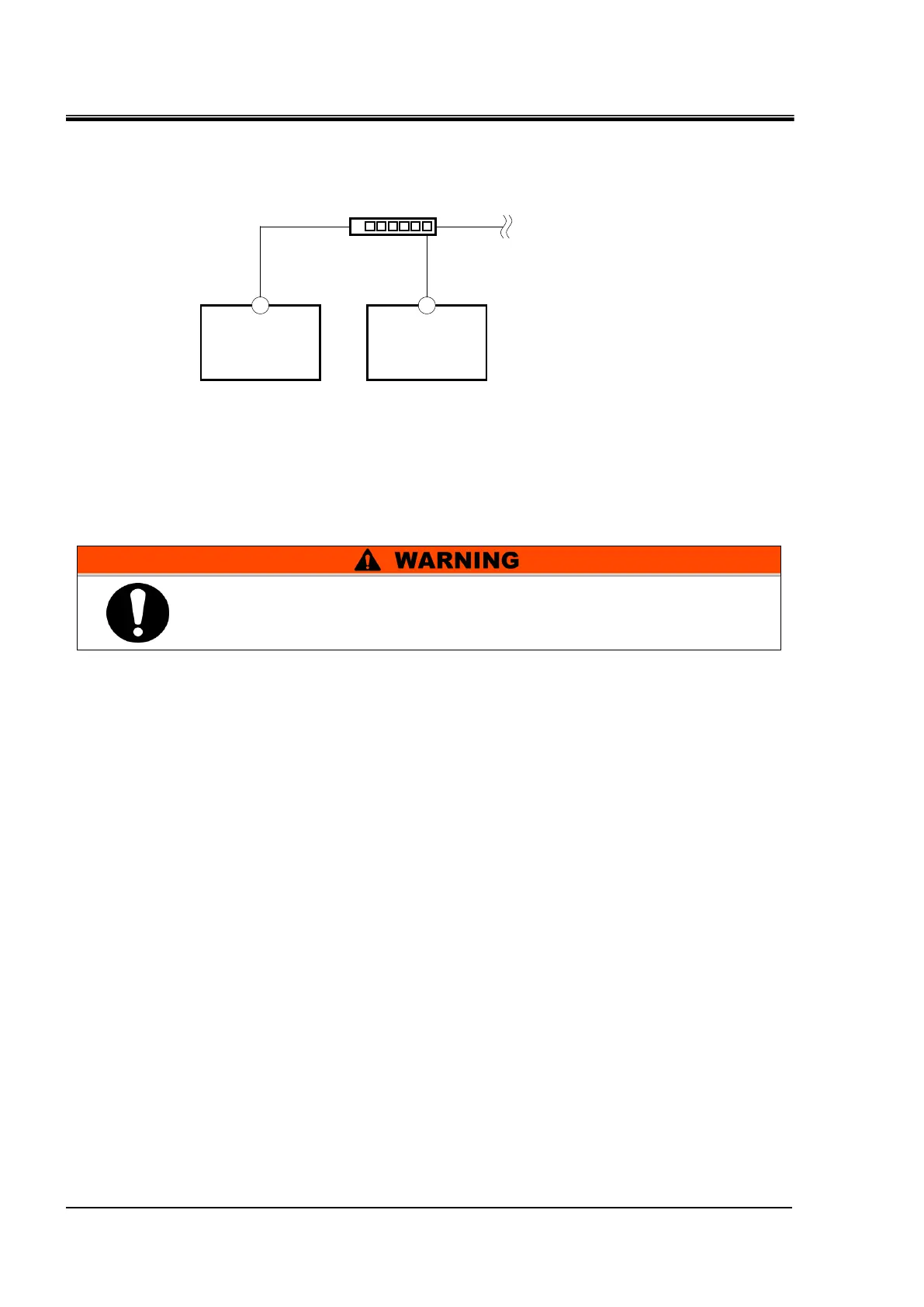

The figure below shows the connection with the user's equipment(client).
• Connect the user's equipment (client) and this product (server) via a hub.
Cable, connector, hub, please use the one that satisfies the standards of
IEEE802.3 10BASE-T / 100BASE-TX.
• User's equipment can be connected up to four at the same time.
Be sure to turn OFF the breaker of the facility power supply (the
user's machine power supply) before wiring.
