SMC Networks HRL100-A 40 Series User Manual

HRX-OM-X037
Chapter 3 Transport and Setting Up
HRL Series 3.3 Installation
3-33
■ Installation of the particle filter
. The attach accessory particle filter must be installed.
1. Wrap seal tape around the nipple (1”) of the CH1 particle filter set, and connect the
union (1”) to the CH1 circulating fluid outlet.
(Recommended tightening torque：36 to 38N・m)

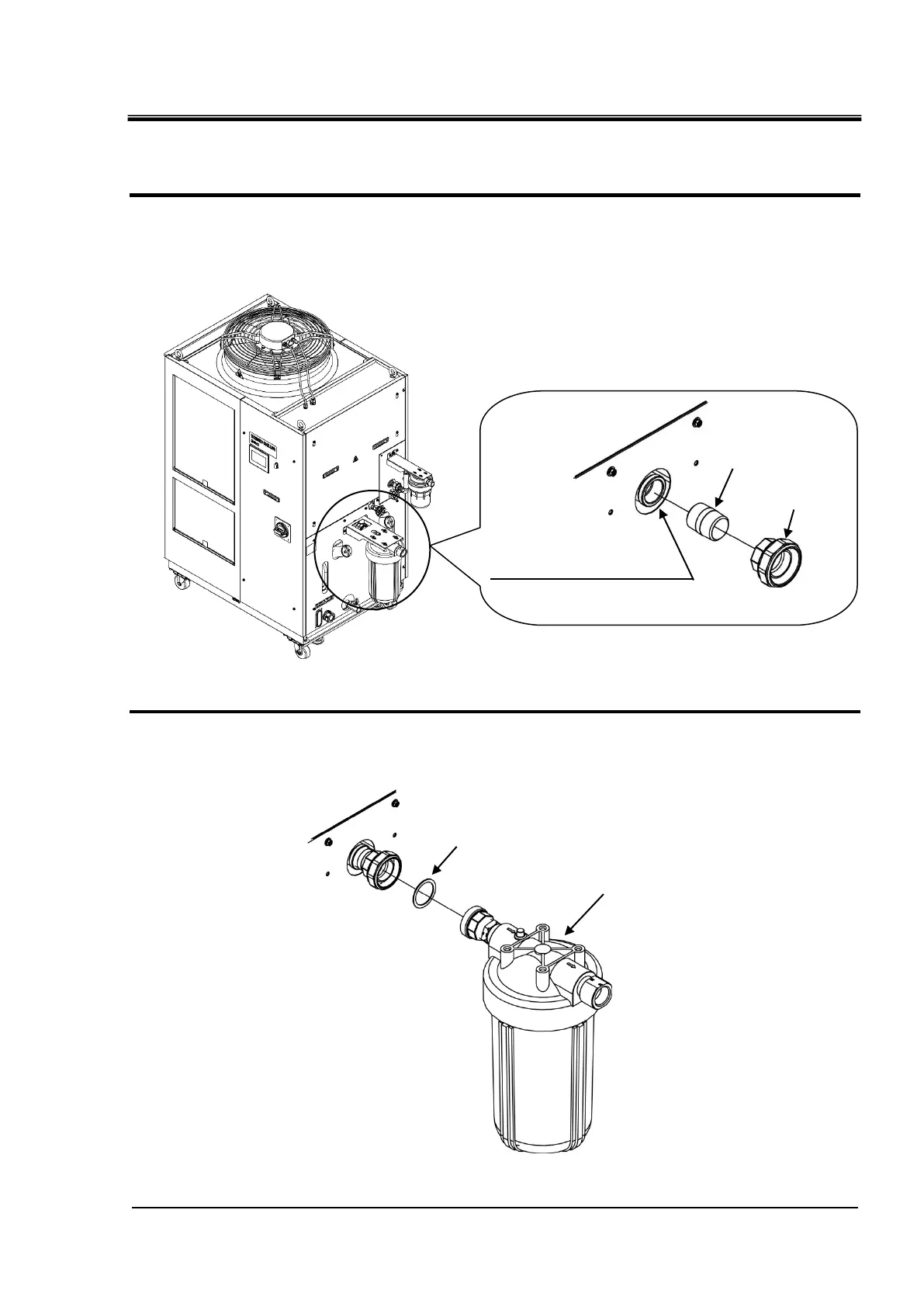

Fig. 3-16 CH1 side Tightening of piping
2. Attach the CH1 particle filter. Insert the gasket (1”) and install it.
(Recommended tightening torque：178 to 185N・m)
Fig. 3-17 CH1 side Installation of particle filter
Nipple(1”)
Union(1”)
Gasket (1”)
CH1 particle filter
CH1 Circulating fluid outlet
