Chapter 3 Transport and Setting Up
3.3 Installation HRL Series
3-34
3. Attach the CH1 filter bracket.

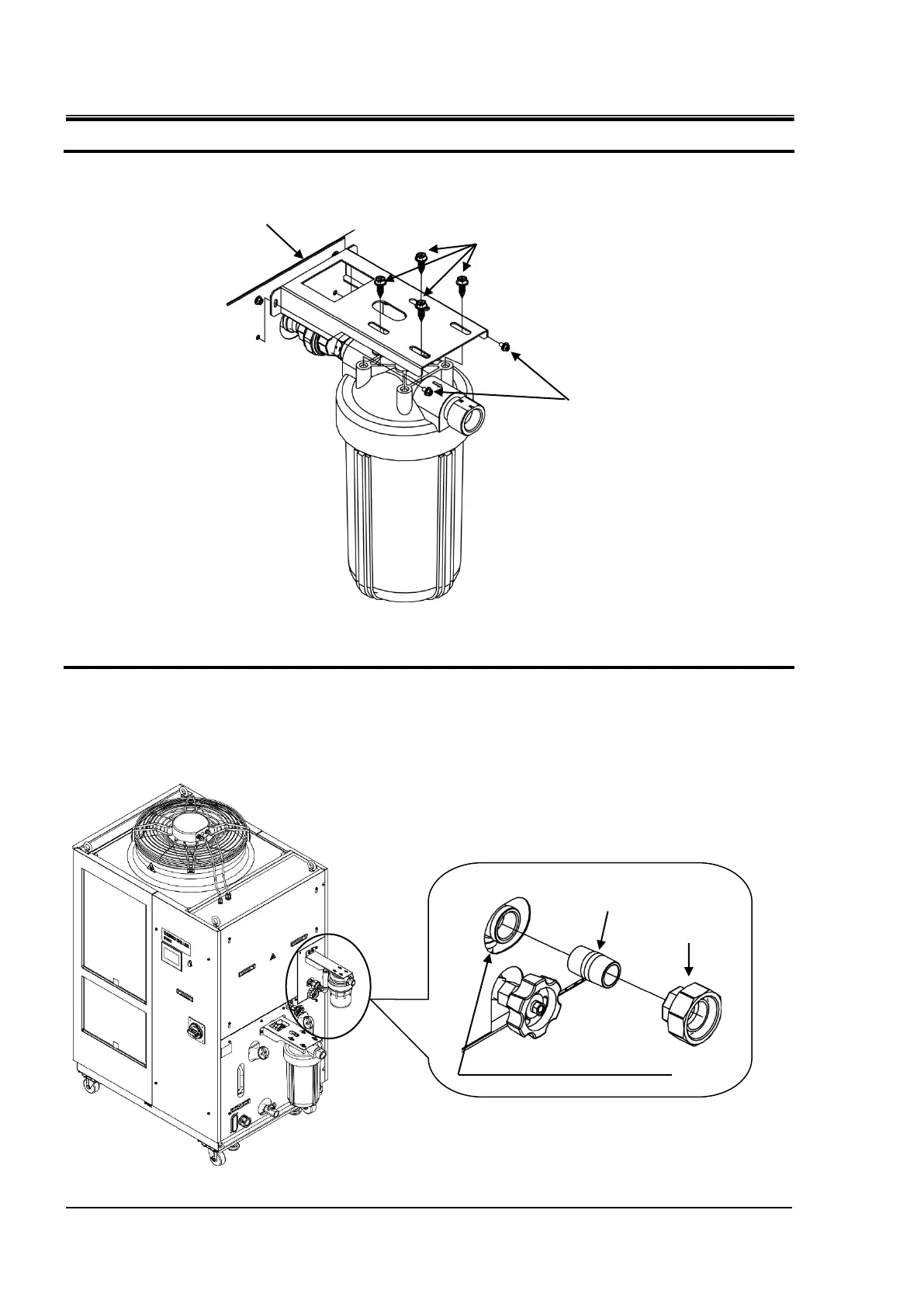

Fig. 3-18 CH1 side Installation of filter bracket.
In case of HRL300-A-40-T3, go to step 7
4. Wrap seal tape around the nipple (1/2”) of the CH2 particle filter set, and
connect the union (1/2”) to the CH2 circulating fluid outlet.
(Recommended tightening torque：20 to 25N・m)
Fig. 3-19 CH2 side Tightening of piping
Filter tapping screw
(Recommended tightening
torque：8.4N・m)
Panel screw
(Recommended tightening
torque：3.0N・m)
CH1 filter bracket
Nipple(1/2”)
Union(1/2”)
CH2 Circulating fluid outlet
