SMC Networks HRL100-A 40 Series User Manual

HRX-OM-X037
Chapter 3 Transport and Setting Up
HRL Series 3.3 Installation
3-35

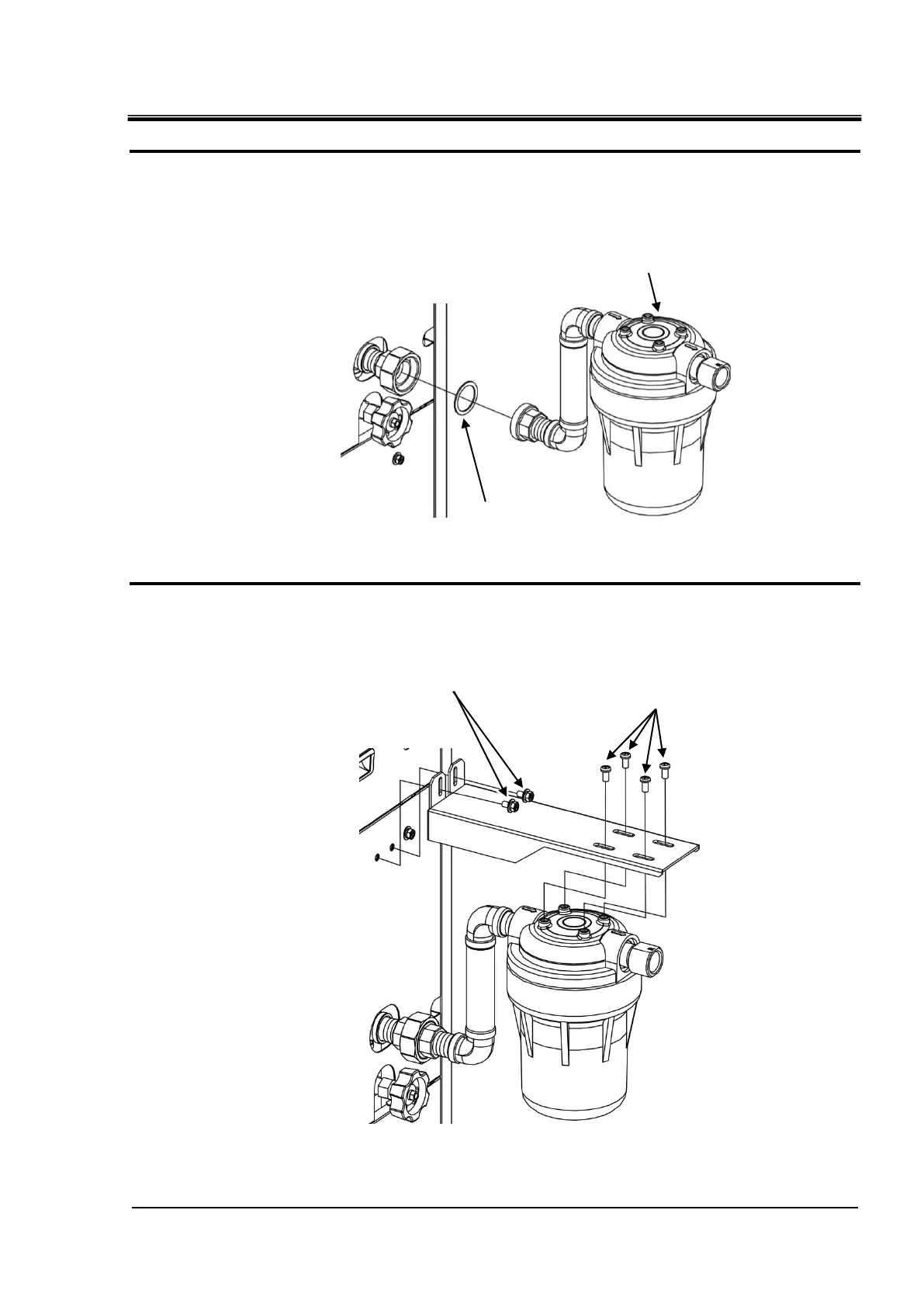

5. Attach the CH2 particle filter. Insert the gasket (1/2”) and install it.
(Recommended tightening torque：64 to 70N・m)
Fig. 3-20 CH2 side Installation of particle filter
6. Attach the CH2 filter bracket.
Fig. 3-21 CH2 side Installation of filter bracket.
Gasket(1/2”）
Filter tapping screw
(Recommended
tightening torque：2.0N・m)
Panel screw
(Recommended tightening
torque：3.0N・m)
CH2 particle filter
