SMC Networks HRL100-A 40 Series User Manual

HRX-OM-X037
Chapter 3 Transport and Setting Up
3.3 Installation HRL Series
3-36
In case of HRL300-A-40-T3.
7. Wrap seal tape around the nipple (3/4”) of the CH2 particle filter set, and
connect the union (3/4”) to the CH2 circulating fluid outlet.
(Recommended tightening torque：28 to 30N・m)

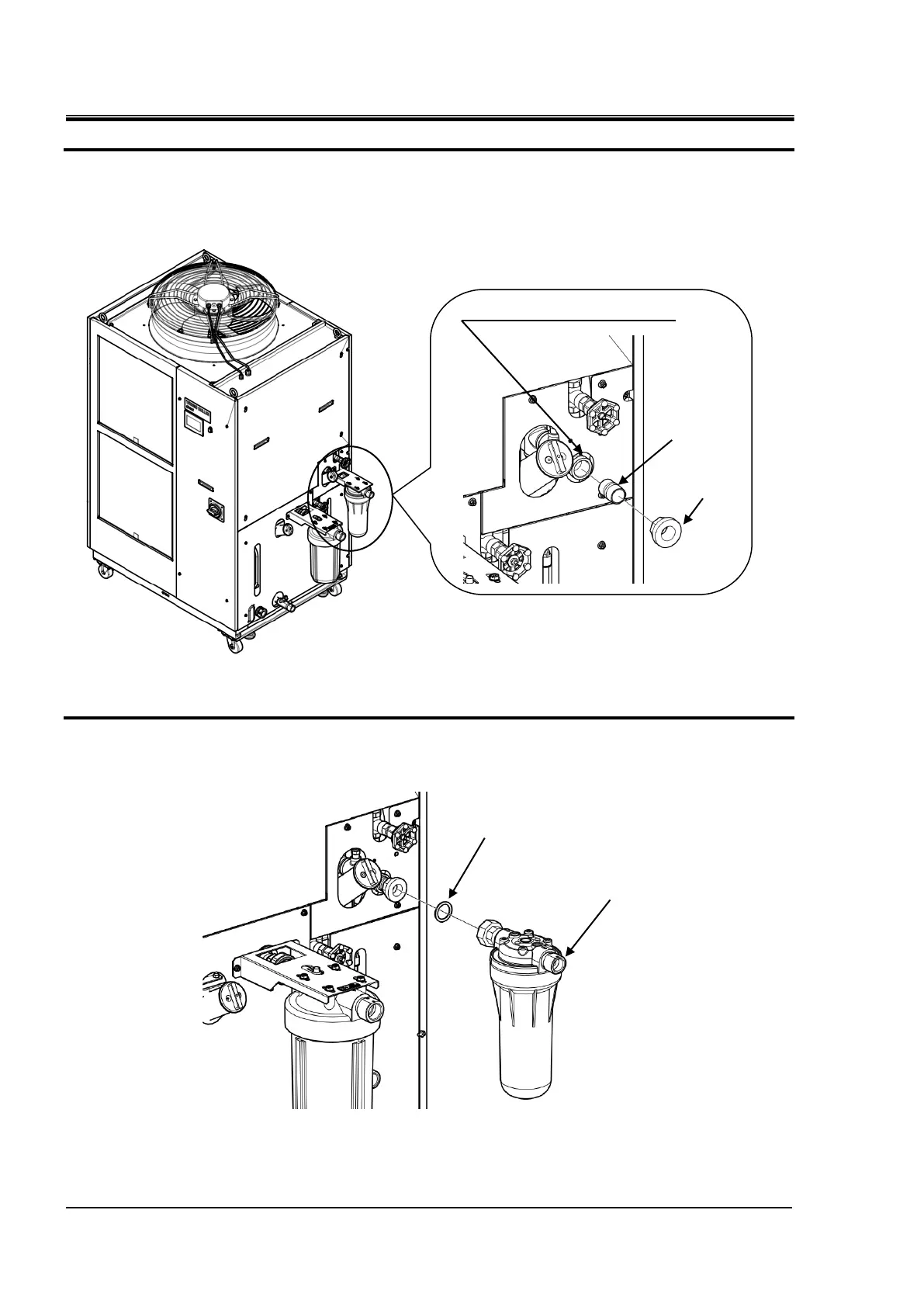

Fig. 3-22 CH2 side Tightening of piping
8. Attach the CH2 particle filter. Insert the gasket (3/4”) and install it.
(Recommended tightening torque：106 to 115N・m)
Fig. 3-23 CH2 side Installation of particle filter
Nipple(3/4”)
Union(3/4”
)
CH2 Circulating fluid outlet
Gasket(3/4”）
CH2 particle filter
