Scope Multimeter Test Leads and Accessories
75
9.4 Test Leads and Accessories
Some of the leads, probes and adapters supplied with or that may be available, are
explained in the following section.
Not all test leads and/or accessories may be available in all markets. Contact
your sales representative for information, or to find out more about these and
other available accessories.
Avoid damaging test leads, do not pull on the wire when removing the
leads from their jacks. Pull only on the lead terminal end.
9.4.1 Channel 1 Lead
The shielded yellow lead is used with channel 1, and is color matched with the
channel 1 jack on the diagnostic tool.

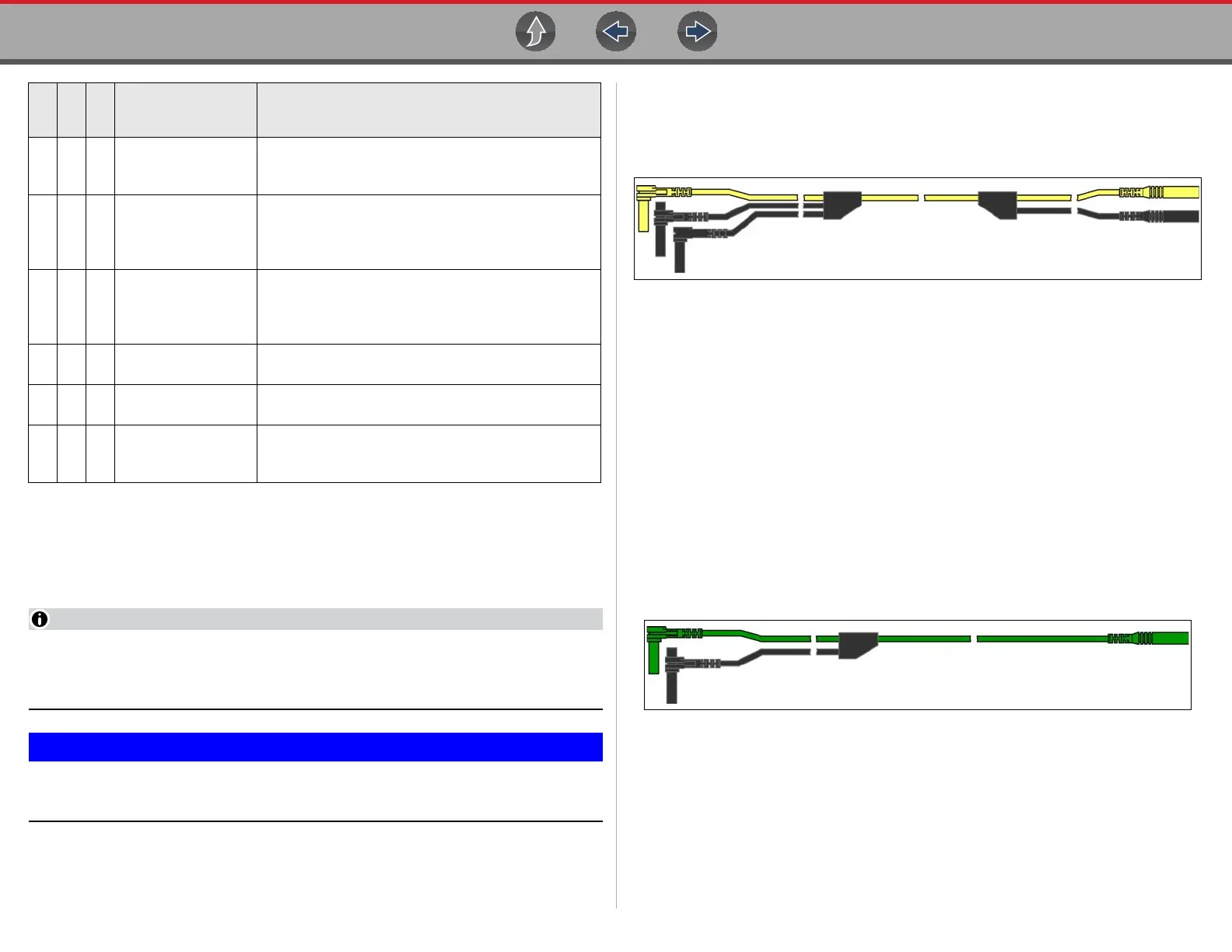

Figure 9-2 Yellow Channel 1 Lead
This lead also includes two black, right-angle common ground plugs. One plug is
standard and the other is stackable. The standard ground plug should always be
connected to the ground (GND) jack on the diagnostic tool.
The stackable ground plug is used for connecting additional ground leads, such as
the Channel 2 or the Secondary Coil Adapter lead grounds. The stackable ground
lead is internally connected to the standard ground lead, therefore it does not need
to be connected to the diagnostic tool ground jack.
9.4.2 Channel 2 Lead
The shielded green lead is used with channel 2, and is color matched with the
channel 2 jack on the diagnostic tool. This lead also includes a black, right-angle
stackable ground plug.
Figure 9-3 Green Channel 2 lead
aa100 PSI Pressure
Used to measure pressures for typical systems such
as, fuel, oil, EVAP, hydraulic/transmission fluid etc. up
to 100 psi, using the 0–100 psi transducer.
aa500 PSI Pressure
Used to measure pressures for typical systems such
as, hydraulic/transmission fluid pressure, cylinder
compression, and AC high side up to 500 psi, using
the 0–500 psi transducer.
aa5000 PSI Pressure
Used to measure pressures for typical systems such
as, ABS, power steering, and heavy-duty hydraulic
system fluid up to 5000 psi, using the 0–5000 psi
transducer.
aaMT5030 Vacuum
Used to measure vacuum up to 29 in.Hg,
using the MT5030 pressure transducer adapter.
aaMT5030 Pressure
Used to measure fluid and gas pressures up to 500
psi, using the MT5030 pressure transducer adapter.
aa
EEDM506D
Temperature
Used to measure temperatures from -50° to 1800° F
(-45 to 982° C), using the EEDM506D pressure
transducer adapter.
D
M
M
G
M
M
L
S
Test Function
