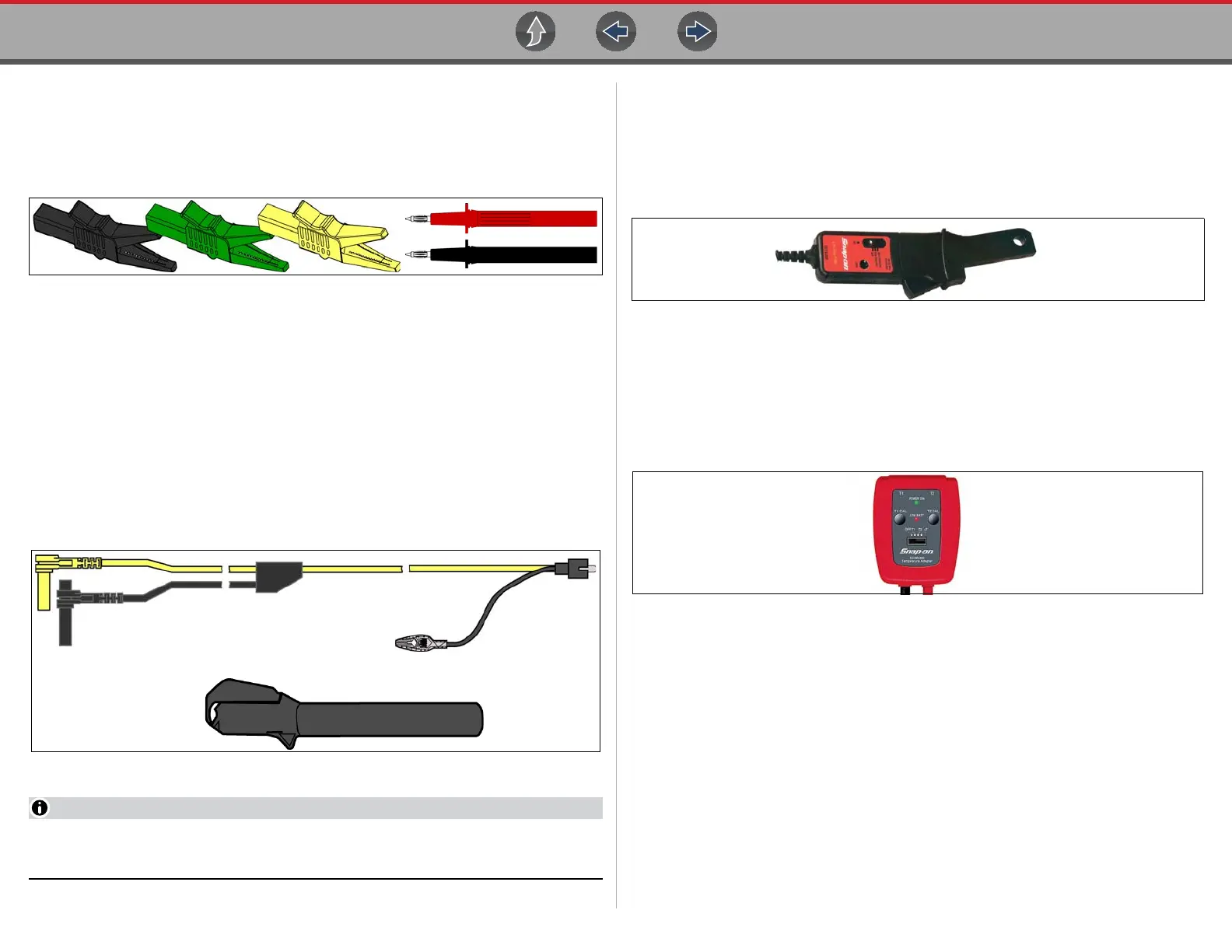

Scope Multimeter Test Leads and Accessories
76
9.4.3 Alligator Clips and Probes
Insulated alligator clips and probes (pointed type) can be attached to the end of the
test leads. Each alligator clip is color matched with a test lead, and the probes are
available in red and black.
Figure 9-4 Alligator clips
9.4.4 Secondary Ignition Coil Adapter Lead and
Clip-on Adapter (optional)
The secondary ignition adapter lead can be used with the secondary ignition clip-on
wire adapter, coil-in-cap (CIC), or coil-on-plug (COP) secondary ignition adapters to
display secondary ignition signals. The clip-on adapter clips over a secondary
ignition wire to pickup a signal, and the CIC and COP adapters attach to the ignition
coil. The coil adapter lead includes a black, right-angle stackable ground plug, and
a RCA type connector that is used to connect the lead to a secondary ignition
adapter. The spring clamp is used to connect to a ground.
Figure 9-5 Secondary Ignition Coil Adapter Lead and Clip-on Wire Adapter
NOTE
Contact your sales representative for additional information on OEM specific
CIC and COP secondary ignition adapters.
9.4.5 Low Amp Current Probe (optional)
The Low Amp Current Probe is used measure AC or DC current up to 60A. This
probe includes two scales (0 to 20A) and (0 to 60A) that can be used to provide
accurate and reliable non-intrusive current measurement for components such as,
ignition coils, fuel injectors, fuel pumps, relays, and electric motors.
Figure 9-6 Low Amp Current Probe
9.4.6 Temperature Probe Adapter (optional)
The temperature probe adapter can be used to measure temperatures ranging from
–50° F to 1,800° F. Different probes are available for surface, fluid and air
temperature measurements.
Figure 9-7
