Scope Multimeter Capturing Data
99
9.8.3 Pausing Data
Data continuously stores in buffer memory until the Pause icon is selected.
Selecting the Pause icon (Figure 9-35), allows you to temporarily pause the data
(input test signal) to review it in detail. See Reviewing Data and Using Zoom
(Review Mode) on page 99 for more information.
To resume data capture, select the Start icon.
For control icon descriptions, see Scope Multimeter Control Icons on page 79.
9.8.4 Reviewing Data and Using Zoom (Review Mode)
Review Mode allows you to search through the captured data in detail to find events
of interest, such as glitches and signal losses.

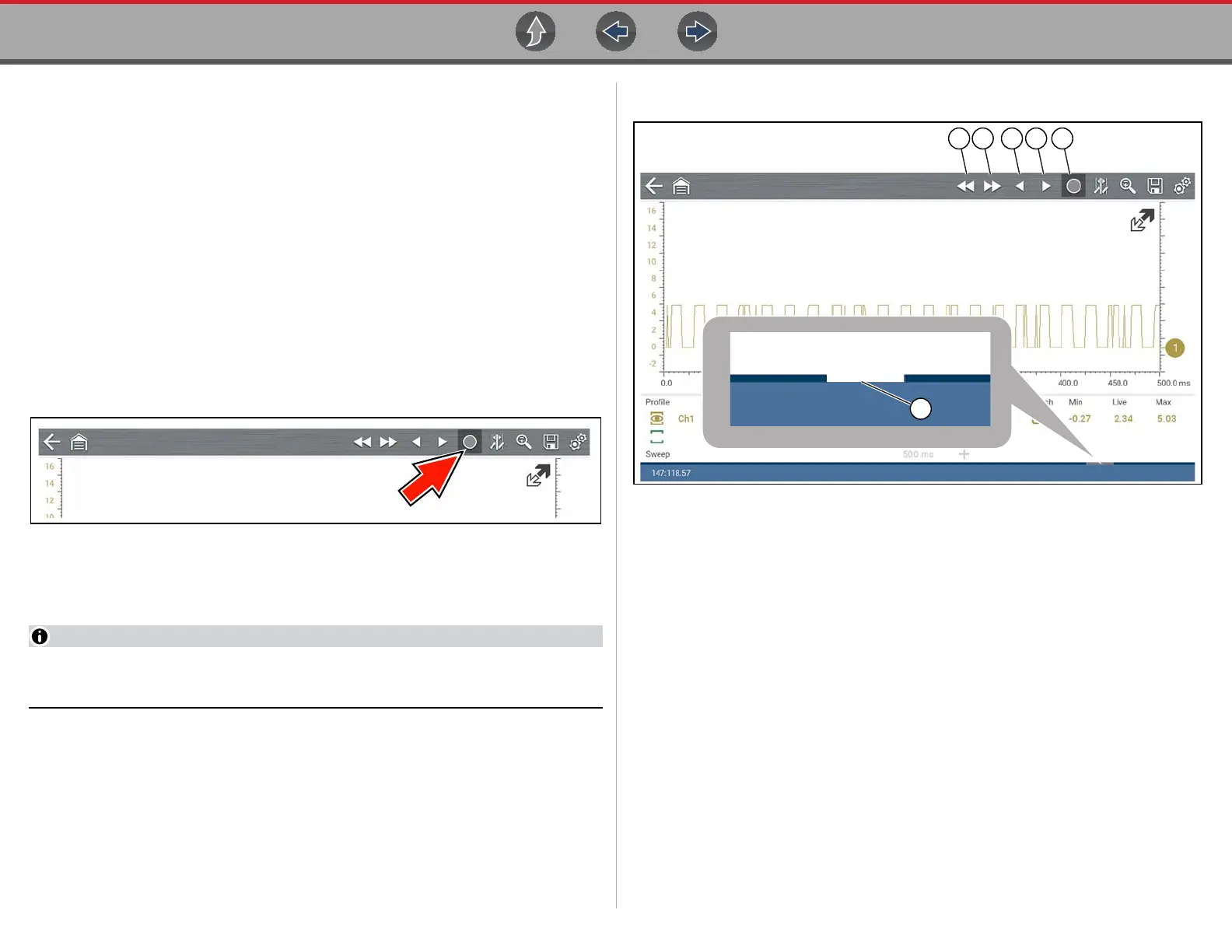

Press the Pause icon (Figure 9-35) to open Review Mode.
Figure 9-35
To search through the captured data, select the desired control icon to move
forward or backward through the data (Figure 9-36).
You can also swipe the screen (side-to-side) to quickly scroll through the
captured data.
For control icon descriptions, also see Scope Multimeter Control Icons on page 79.
Figure 9-36
1— Back 1 Frame Moves to the
previous frame in the data
2— Forward 1 Frame Moves to the
next frame in the data
3— Step Back Moves to the previous
point in the data
4— Step Forward Moves to the next
point in the data
5— Start (Capture) Resumes data
capture
6— Data Buffer Slider
