Stryker CUB FL19F User Manual

Return To Table of Contents
1-98 1900-009-002 REV B www.stryker.com
English

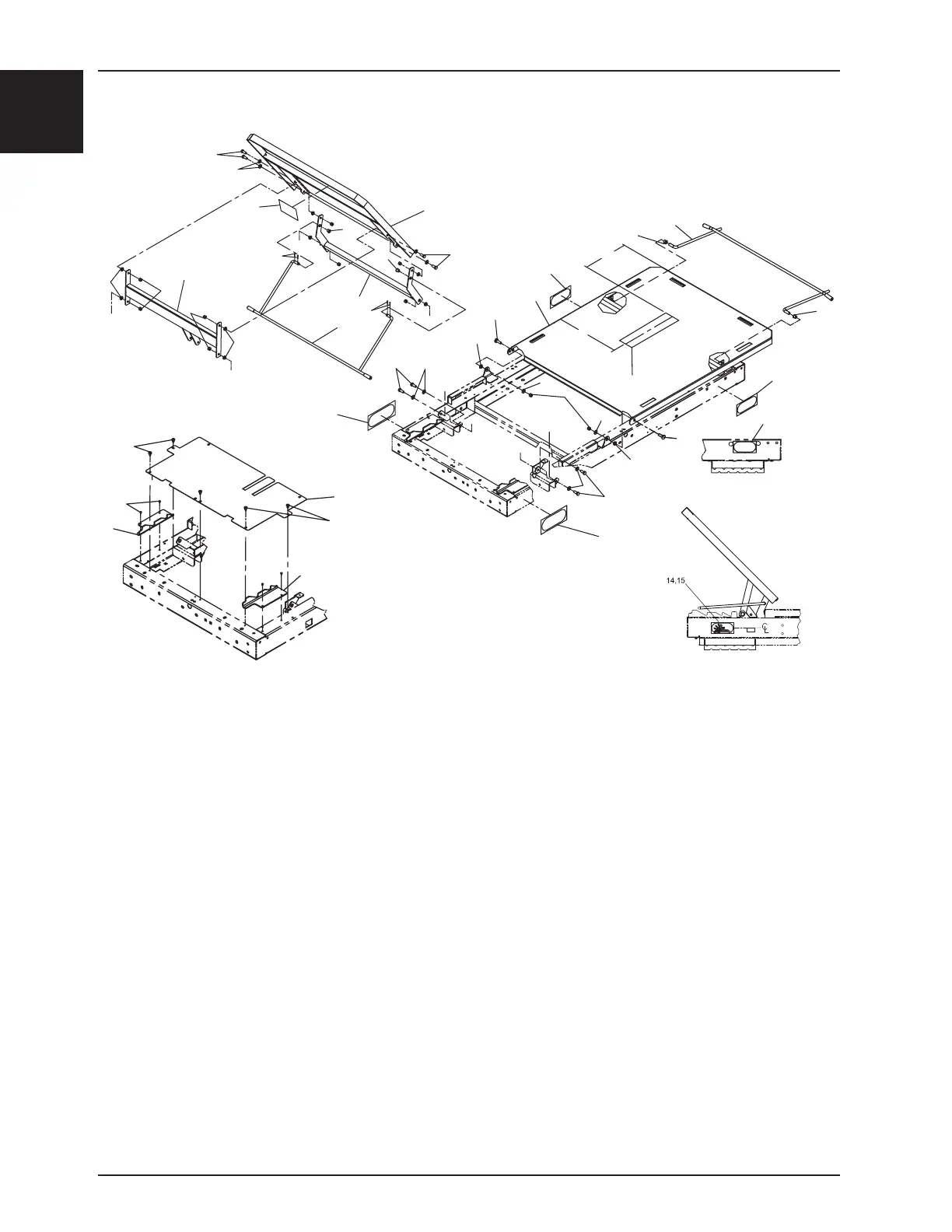

Head Section with Support Arm
A
B
C
D
5
3
4
3
4
1
10
8
1
T130
T130
2
6
7
7
9
9
HEAD
22
OL190025 Rev G (Reference only)
C
D
A
B
3
13
1
2
4
2
3
13
1
T130
14
15
2
2
23,25
24
9
25
FOOT
9
14"
11
12
23
14"
17
18
18
T35
T35
20
21
19
Head Section with Support Arm - OL190025 Rev G - (Reference only)
Item Part No. Part Name Qty.
1 VB15A1O32 Hex Bolt 8
2 VW10A10 Washer 10
3 QDF17-0020 Shoulder Spacer 10
4 VE30A1O Nylon Locknut 12
5 19-0598P Coupling Bar, Short 1
6 19-0761P Head Support Arm with Caps 1
7 VG40B0240 Split Pin 4
8 19-0599P Coupling Bar, Long 1
9 QPNI2404 Nylon Shoulder Bushing 4
10 19-0052P Head Section 1
11 19-0135 Velcro Mattress Fastener 1
12 19-0053P Foot Section 1
13 VB35A1O32 Carriage Bolt 2
14 QE71-0508 Fowler Elevation Label, Right 1
15 QE71-0507 Fowler Elevation Label, Left 1
17 19-0788P Head Cover Plate 1
18 VV83A9G16 Pan Head Tapping Screw 5
19 19-0615P Head Section Stop Notch, Left 1
20 VR11H64 Pop Rivet 4
21 19-0652P Head Section Stop Notch, Right 1
22 QE71-0538-F Inspection Label 1
23 QE71-0451 Foot Section Elevation Label, Left 1
24 19-0749P Foot Section Support with Caps 1
25 QE71-0452 Foot Section Elevation Label, Right 1
