1-114 1900-009-002 REV B www.stryker.com
English

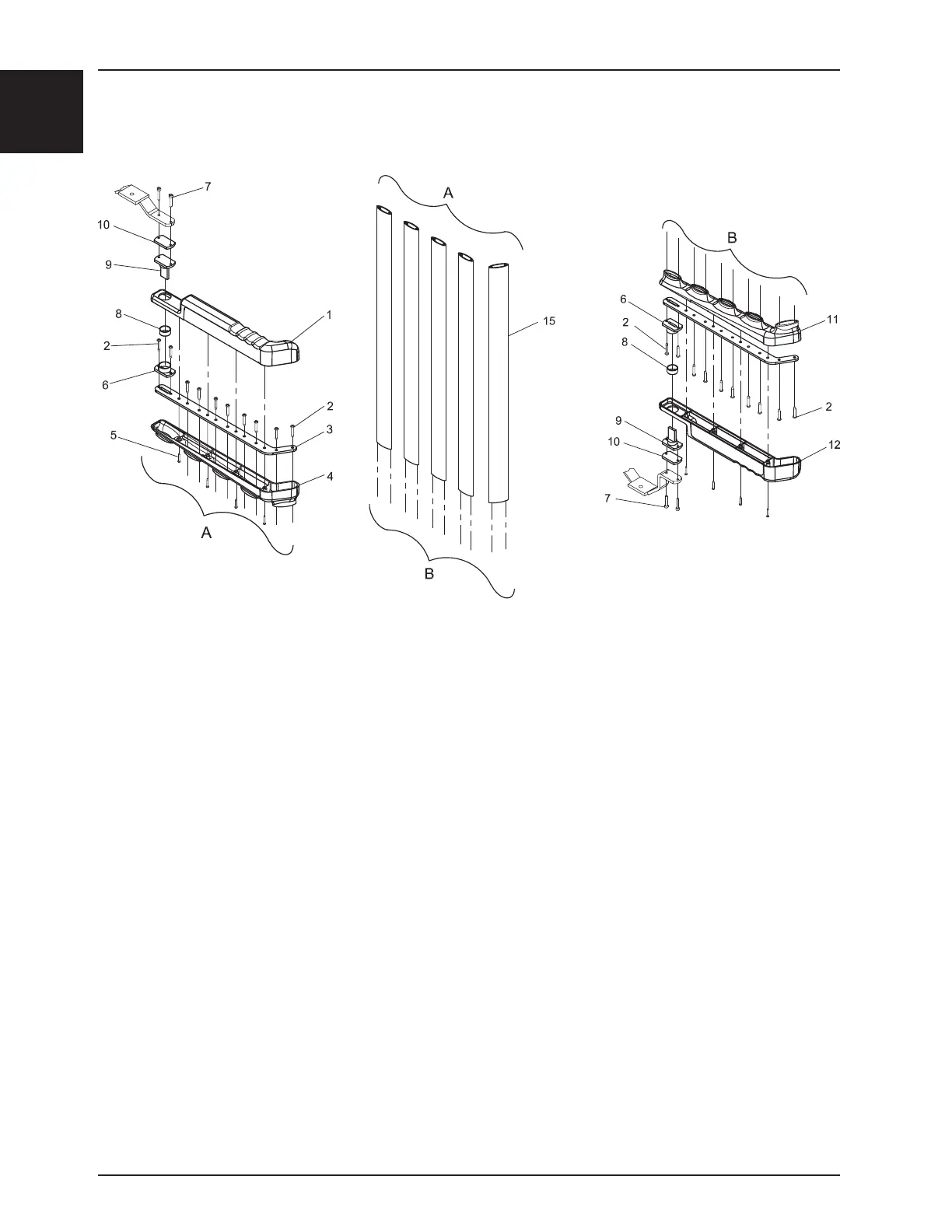

Fixed Access Door, Left
OL190022 Rev 11 (Reference only)
Item Part No. Part Name Qty.
1 QP19-0553-10 Access Door Cover 1
2 VVZ7A1E32 Pan Head Tapping Screw 20
3 19-0288Z Access Door Structural Member 2
4 19-0654 Access Door Perforated Cover 1
5 VV83A9A24HL Truss Head Tapping Screw 8
6 19-0403Z Inner Hinge 2
7 VV10A1G24-S Hex Socket Head Cap Screw 4
8 19-0622 Hinge Sleeve 2
9 19-0791Z Access Door Hinge 2
10 19-0487Z Access Door Spacer 2
11 QP19-0638-10 Access Door Cover 1
12 19-0655 Access Door Perforated Cover 1
15 19-0283P Access Door Post 5
