Access Door, Left
19-0696L Rev 04 (Reference only)

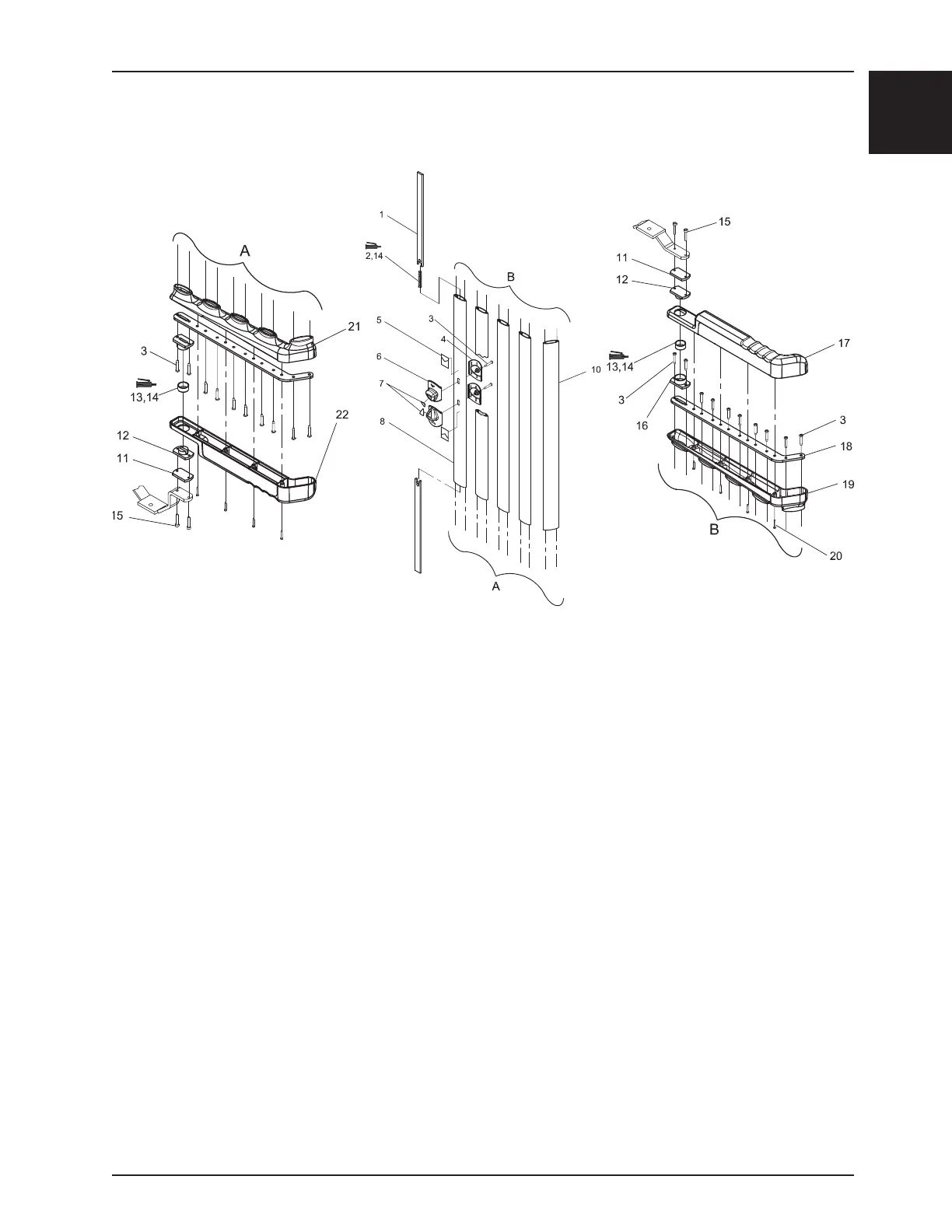

Access Door, Left - OL190016 Rev - - (Reference Only)
Item Part No. Part Name Qty.
1 19-0335Z Locking Mechanism Bar 2
2 QRC19-0336 Compression Spring 1
3 VVZ7A1E32 Pan Head Tapping Screw 22
4 QP19-0546 Release Knob, Inner 2
5 QE71-0456 Latch Release Knob Label, Green 2
6 QP19-0545 Release Knob, Outer 2
7 QE71-0498 Access Door Perforated Cover 2
8 19-0282W Locking Mechanism Post 1
10 19-0283W Access Door Post 4
11 19-0487Z Access Door Spacer 2
12 19-0402Z Outer Hinge 2
13 19-0622 Hinge Sleeve 2
14 M0019 Petro Canada OG2 Grease .16 kg
15 VV10A1G24-S Hex Socket Head Cap Screw 4
16 19-0403Z Inner Hinge 2
17 QP19-0553-10 Access Door Cover 1
18 19-0288Z Access Door Structural Member 2
19 19-0654 Access Door Perforated Cover 1
20 VV83A9A24HL Truss Head Tapping Screw 8
21 QP19-0638-10 Access Door Cover 1
22 19-0655 Access Door Perforated Cover 1
