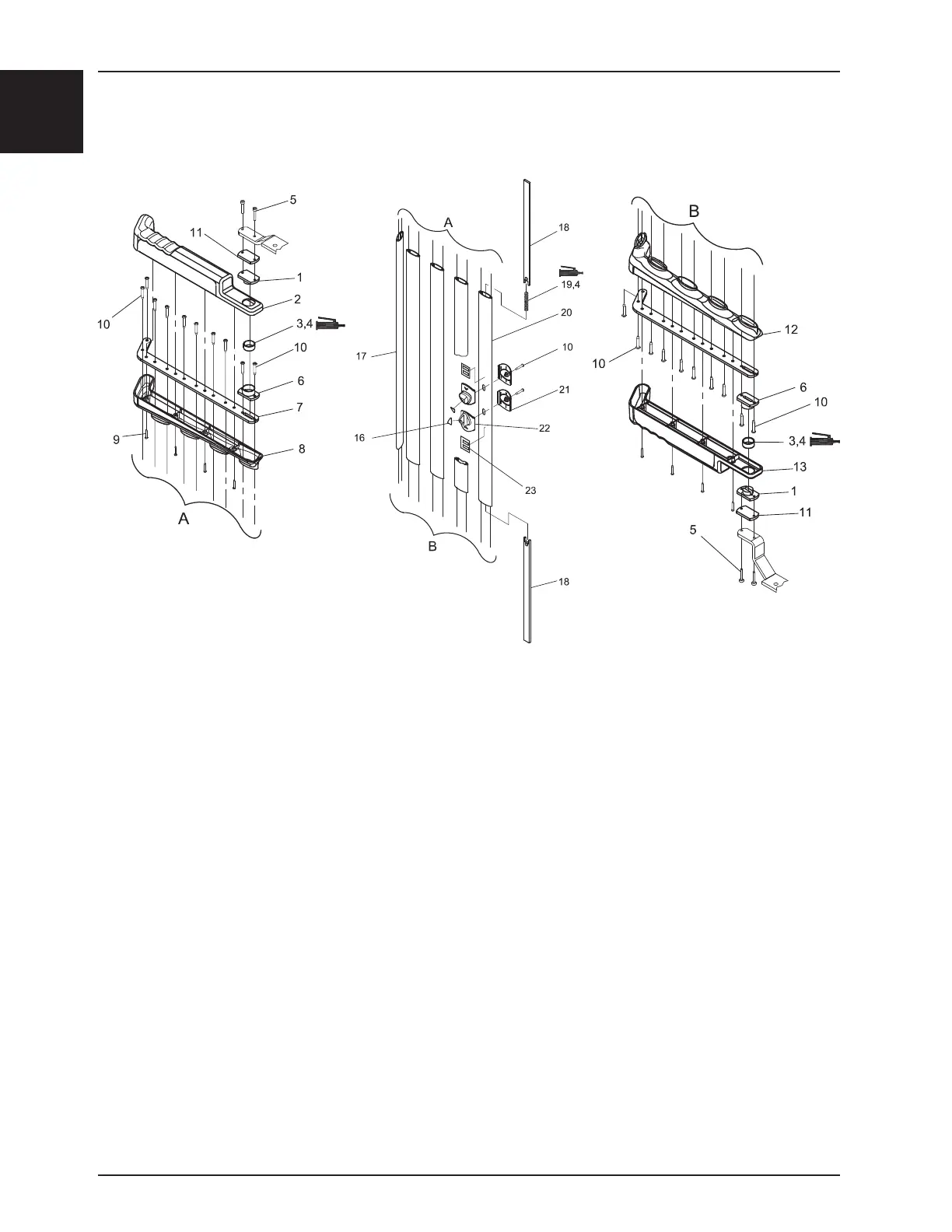

Access Door, Right
19-0699L Rev 04 (Reference only)
Access Door, Right - OL190017 Rev - - (Reference only)
Item Part No. Part Name Qty.
1 19-0402Z Outer Hinge 2
2 QP19-0637-10 Access Door Cover 1
3 19-0622 Hinge Sleeve 2
4 M0019 Petro Canada OG2 Grease .08 kg
5 VV10A1G24-S Hex Socket Head Cap Screw 4
6 19-0403Z Inner Hinge 2
7 19-0288Z Access Door Structural Member 2
8 19-0656 Access Door Perforated Cover 1
9 VV83A9A24HL Truss Head Tapping Screw 8
10 VVZ7A1E32 Pan Head Tapping Screw 22
11 19-0487Z Access Door Spacer 2
12 QP19-0554-10 Access Door Cover 1
13 19-0653 Access Door Perforated Cover 1
16 QE71-0498 Release Knob Label, Orange 2
17 19-0283W Access Door Post 4
18 19-0335Z Locking Mechanism Bar 2
19 QRC19-0336 Compression Spring 1
20 19-0282W Locking Mechanism Post 1
21 QP19-0546 Release Knob, Inner 2
22 QP19-0545 Release Knob, Outer 2
23 QE71-0456 Latch Release Knob Label, Green 2
