Stryker CUB FL19F - Stretcher Component Assemblies; Litter Frame Assembly

Return To Table of Contents
www.stryker.com 1900-009-002 REV B 1-91
English
Litter Frame
T35 2
T35 2
13
10
6
8
T6 7
T6 7
8
9
1
12
11
9
5
6
8
7 T6
10
6
3
2 T35
L19-006 Rev F (Reference only)

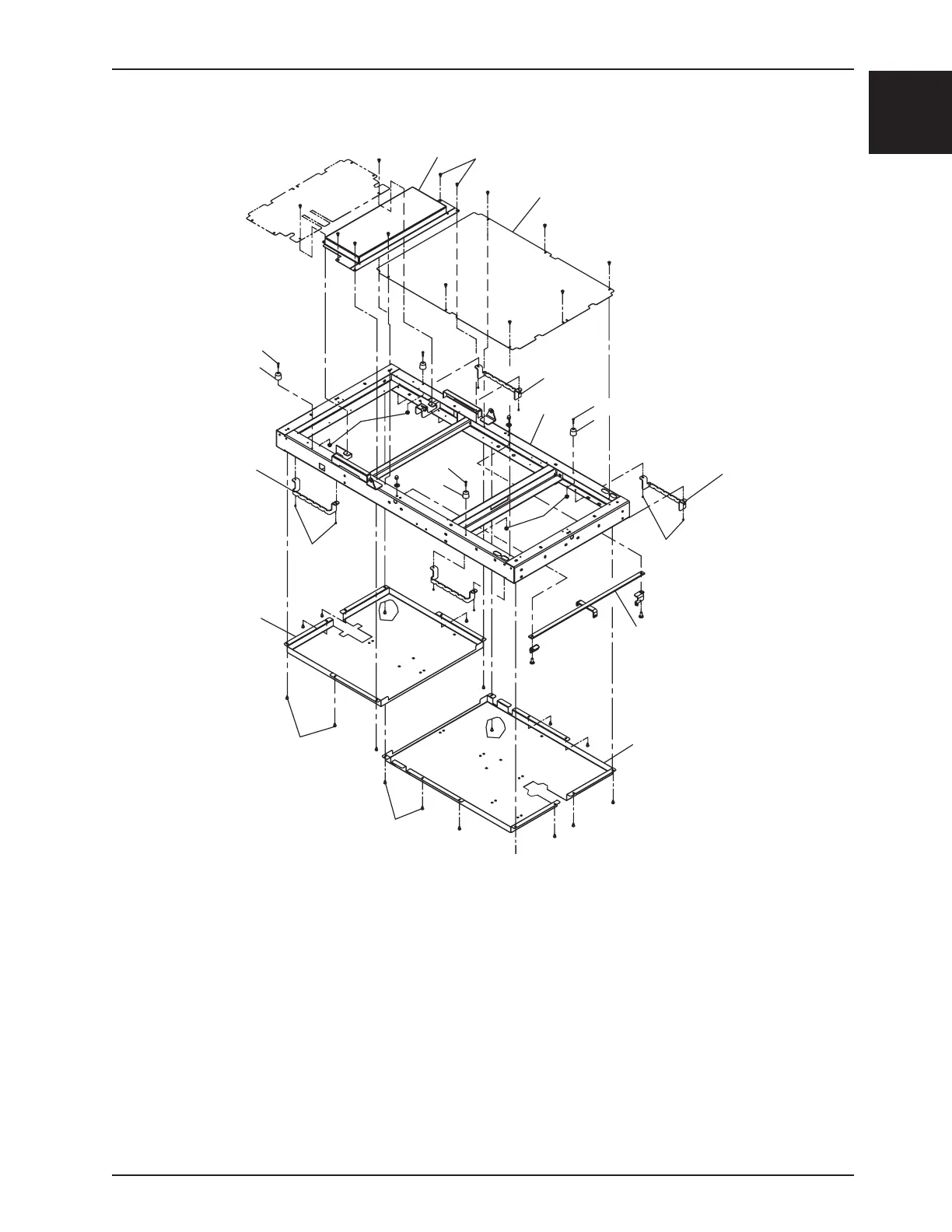

Litter Frame - L19-006 Rev F (Reference only)
Item Part No. Part Name Qty.
1 19-0984P Litter Center Section 1
2 VV83A9G16 Pan Head Tapping Screw 31
3 19-0577P Top Cover Plate, Foot End 1
5 19-0149P Frame 1
6 19-0324P Foley Bag Hook 4
7 VV33A1E24 Pan Head Machine Screw 4
8 QPCD0903 Rubber Bumper 4
9 VE30A1E Nylon Hex Locknut 4
10 VR11H64 Pop Rivet 8
11 19-0715Z Spring Hitch Plate 1
12 19-0578P Lower Cover Plate, Foot End 1
13 19-0579P Lower Cover Plate, Head End 1
