1-50 1900-009-002 REV B www.stryker.com
English
LITTER REMOVAL - FIXED BASE STRETCHER
TOOLS REQUIRED:
• #2 Phillips Screwdriver
• (2) 1/2 in. Combination Wrenches
• (2) Bungee Cords (or equivalent)
• (4) Sawhorses (or equivalent)
PROCEDURE:
1. Raise the rails to the highest position and apply the brakes.
2. Support both ends of the litter frame using sawhorses (or equivalent).
CAUTION
Ensure the sawhorses are capable of supporting at least 200 lb (91 kg).
3. Using #2 Phillips screwdriver, remove the 18 screws (A) holding the lower
cover plates to the litter frame. Remove the cover plates. See Figure 22.
4. Lift the black bellows (C) and support them using bungee cords (or
equivalent).
5. Using two 1/2 in. combination wrenches, remove the four bolts (A) and
four locknuts (B) holding the litter support tubes to the two base posts. If
the bolts are stuck, raise the end of the litter slightly to ease the removal.
See Figure 21.
6. With the assistance of another person, lift off the litter and set it aside
on a second set of sawhorses.
7. Reverse the above steps to reinstall the litter frame.
8. Verify proper operation of the stretcher before returning it to service.
Service
C
B
A
A
A
B
C
C

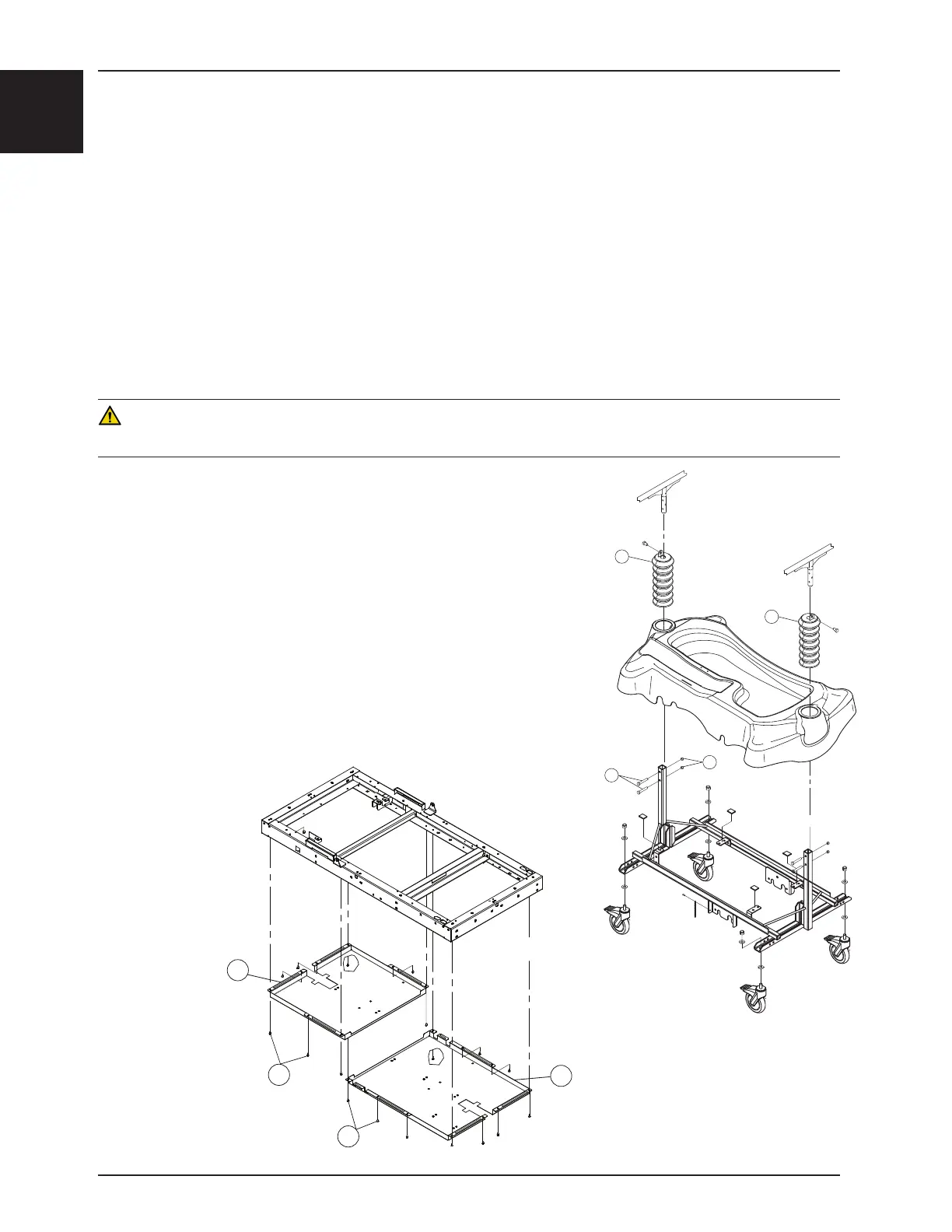

Figure 21
Figure 22
