Hydraulic Base Frame Support without Scale Option
OL190146-XXX Rev F (Reference only)
6
5
4
3
2 T130
1
HEAD
5
11
2 T130
7
9
8
6
6
6
FOOT
10
2
T130
6
8
9
7
PUT GREASE INSIDE BUSHINGS

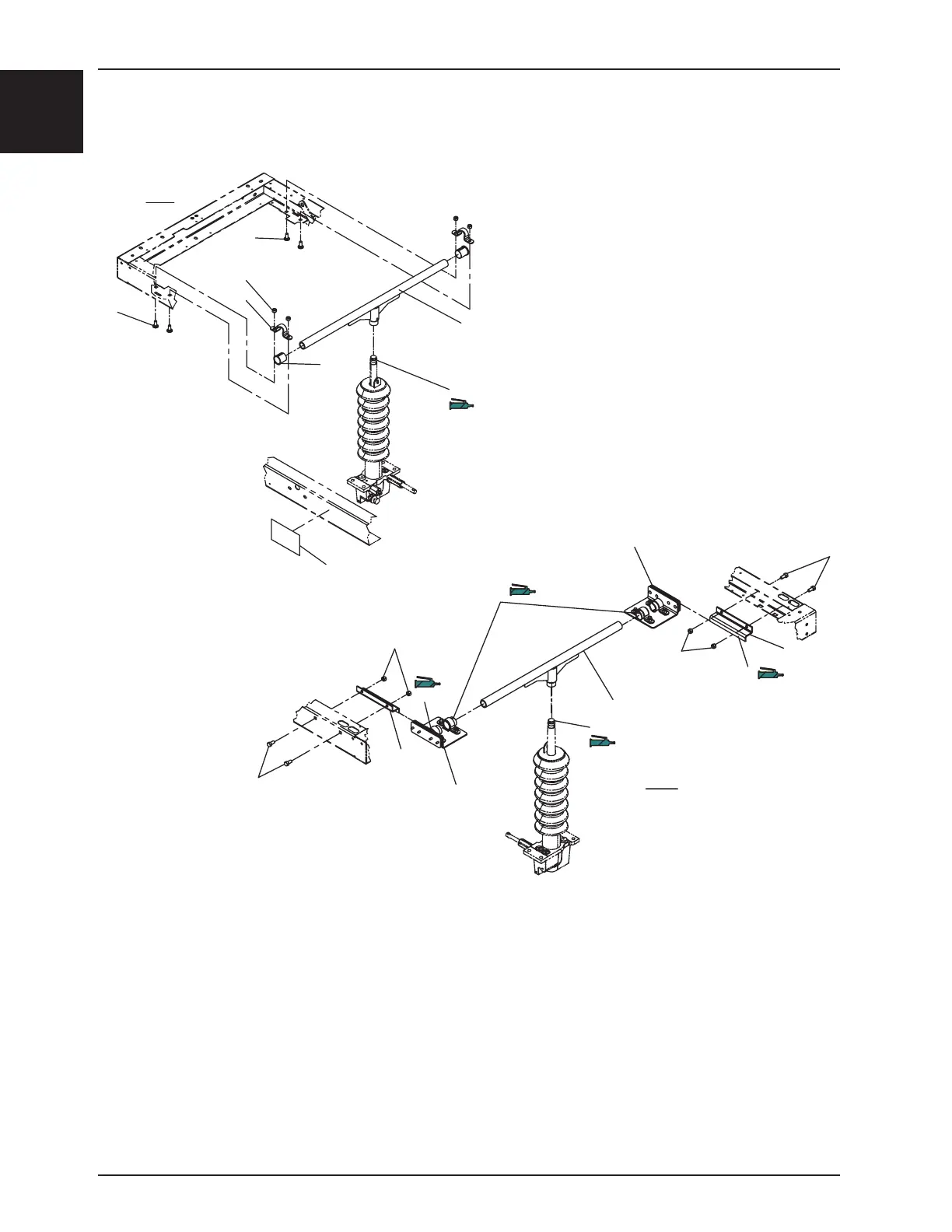

Hydraulic Base Frame Support without Scale - OL190146-XXX Rev F (Reference Only)
Item Part No. Part Name Qty.
1 19-0937P Head End Frame Support 1
2 VE30A1O Nylon Hex Locknut 8
3 14662Z Lever Clamp 2
4 QPN-18121 Molded Frame Bushing 2
5 VB35A1O24 Carriage Bolt 4
6 M0019 Petro Canada OG2 Grease .24 kg
7 VB15A1O24 Hex Bolt 4
8 19-0156Z Slider Rail 2
9 19-0482P Foot Section Glider 2
10 19-0938P Frame Support, Foot End 1
11 QE71-0516-XXX Manufacturer Label 1
