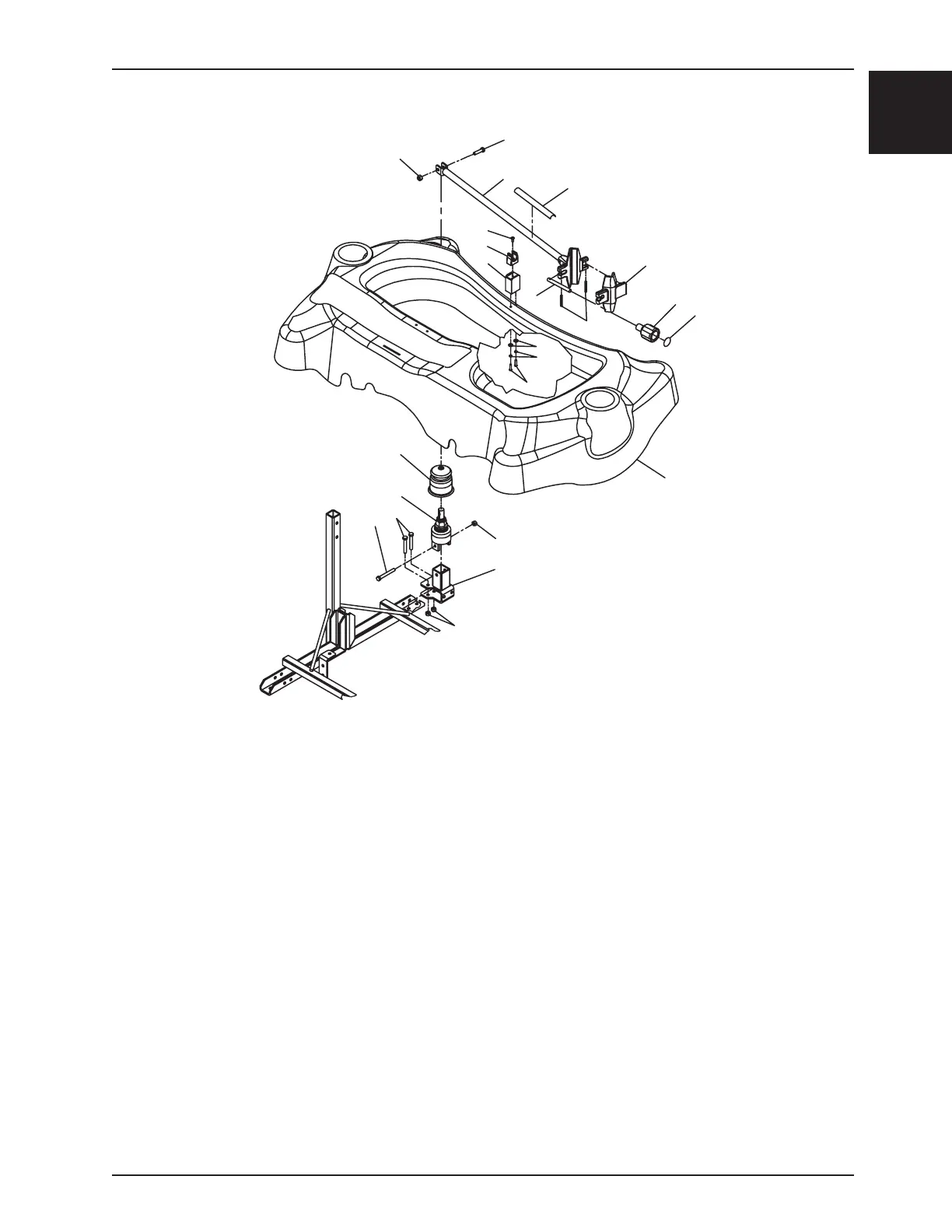

IV Caddy, Fixed Height Base - OL190047-XXX
20
19
18
17
16
10
9
8
14
15
13
12
11
7
3
1
2
4
5
6
T25
1
21
T135
T135
1
T25
T135
Item Part No. Part Name Qty.
1 VE30A1O Nylon Hex Locknut 4
2 19-0736P Mounting Adaptor 1
3 VB15A1O48 Hex Bolt 2
4 VB15A1O52 Hex Bolt 1
5 QDF5065 Clutch Assembly 1
6 QDF5076 Rubber boot 1
7 19-0532 Base Hood for I.V. Caddy 1
8 VV33A0G24 Pan Head Machine Screw 2
9 VW20A06 Spring Washer 2
10 VW10A06 Washer 2
11 QE71-0510 I.V. Caddy Direction Label 1
12 QDF5066 Grip Assembly 1
13 QDF5069 Half Clamp 1
14 VG10B0640 Spring Pin 2
15 QDF5082 Threaded Rod 1
16 QDF5084 Storage Clip 1
17 QDF5083 Storage Clip Support 1
18 VV10A0G16 Hex Socket Head Cap Screw 1
19 QE71-0504-XXX I.V. Caddy Label 1
20 19-0641 Connecting Arm Assembly 1
21 VB15A1O40 Hex Bolt 1
