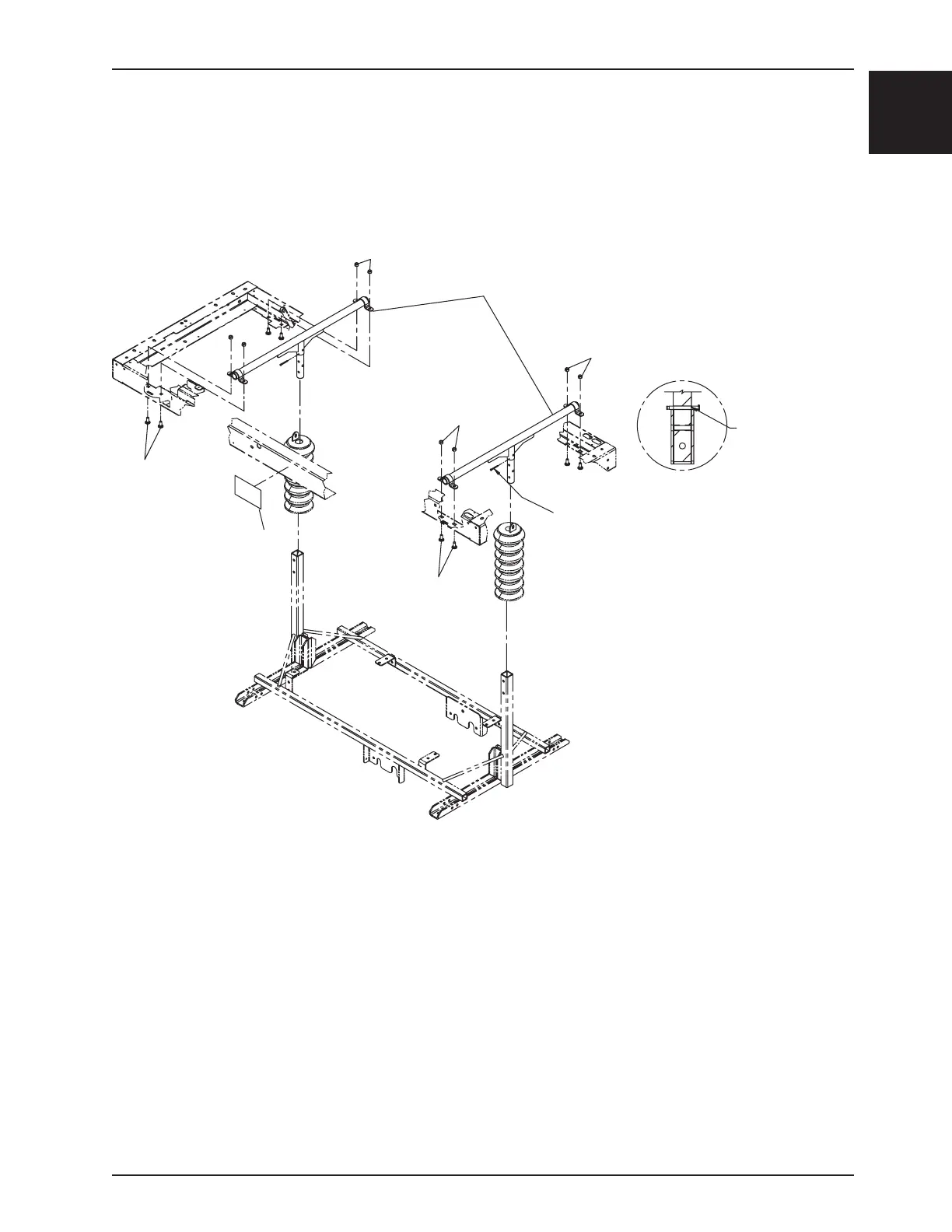

Fixed Base Frame Support without Scale Option
DURING THE ASSEMBLY, PLACE 2 LINES OF
TREADØ3/16" TO SIMPLIFY ASSEMBLY
(EX: VG50B0644)
3
2 T130
1
2 T130
REMOVING THE AXIS TREAD AFTER
INSTALLATION BOLTS OF FIXATION
THE ROCKER.
2 T130
3
4
OL190149-XXX Rev D (Reference only)
Fixed Base Frame Support without Scale - OL190149-XXX Rev D (Reference Only)
Item Part No. Part Name Qty.
1 19-0940P Fixed Height Base Frame Support 2
2 VE30A1O Nylon Hex Locknut 8
3 VB35A1O24 Carriage Bolt 8
4 QE71-0516-XXX Manufacturer Label 1
HEAD
FOOT
