Stryker CUB FL19F User Manual

Return To Table of Contents
1-92 1900-009-002 REV B www.stryker.com
English

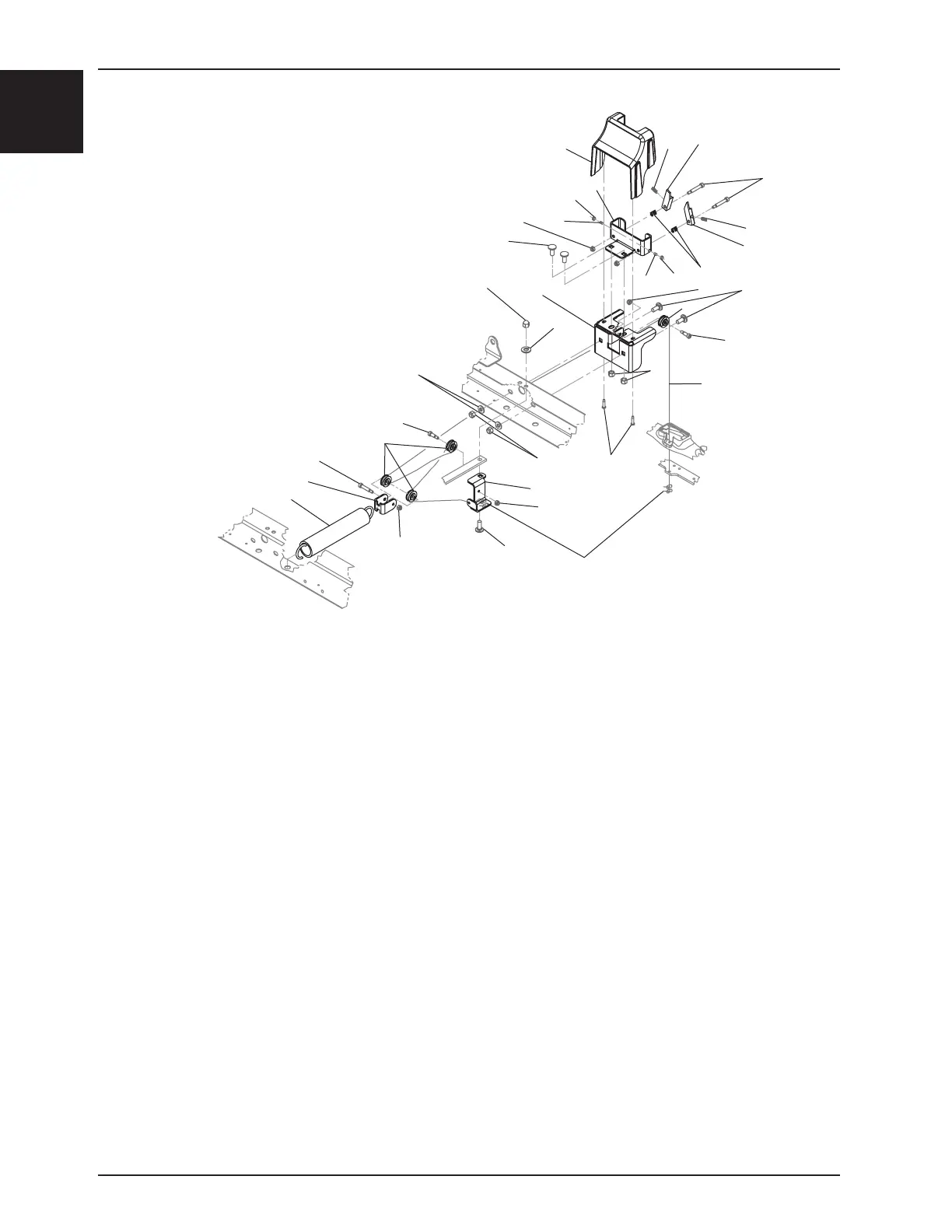

Siderail Assist System
MAKE 2 KNOTS AND ENSURE
THEY ARE FIRMLY DONE
AND BRAKE SHOE) MUST BE ADJUSTED ONCE THE RAIL
IS MOUNTED TO ENSURE PROPER OPERATION OF THE
RAIL LOCKING MECHANISM.
14
15
16
T35
5
7
8
T35
19
5
T130
10
13
12
IMPORTANT: ITEMS 20 AND 21 (BRAKE SHOE SUPPORT
T130
18
17
20
11
T35
5
6
21
22
9
T35
7
T130
10
5
8
6
4
3
2
1
2
23
24
25
24
25
WARNING : BEFORE TYING KNOTS IN THE ROPE (ITEM 9),
PUT THE BARRIER IN HIGH POSITION, STRETCH THE ROPE
TO CREATE TENSION, UNLOCK THE BARRIER AND LET IT
FALL. THE BARRIER MUST FALL TO THE 14" POSITION
WITHOUT ANY IMPACT. REPEAT THE PROCESS APPLYING
MORE OR LESS TENSION UNTIL THE DESIRED EFFECT IS
OBTAINED. THIS DETERMINES WHERE THE KNOT MUST BE.
T4.5
OL190019W Rev L (Reference only)
Siderail Assist System - OL190019W Rev L (Reference only)
Item Part No. Part Name Qty.
1 VD60B1N36 Shoulder Screw 2
2 QRC9793 Compression Spring 2
3 QDF19-0368ZN Left Stop Catch 1
4 QRCB-640 Endrail Compression Spring 2
5 VE30A1G Nylon Hex Locknut 5
6 VB35A1O24 Carriage Bolt 4
7 QP19-0196 Assist System Pulley 4
8 VD60B0G0816 Shoulder Screw 2
9 19-0997 Assist System Cable 1
10 VE30A1O Nylon Hex Locknut 4
11 VW20A10 Spring Washer 1
12 VV83A9E16 Pan Head Tapping Screw 2
13 19-0857Z Fixed Roller Support 1
14 QRE19-0608 Siderail Spring 1
15 19-0187Z Pulley Bracket 1
16 VD60B0G0832 Shoulder Screw 1
17 VW10A10 Washer 2
18 VE40A1O Cap Nut 1
19 VB35A1O24-S Hex Bolt 1
20 19-0452W Brake Shoe Support 1
21 19-0364Z Brake Shoe 1
22 QP19-0411-10 Brake Shoe Cover 1
23 QDF19-0374ZN Right Stop Catch 1
24 VV60B0G12 Set Screw 2
25 VE80A0G “K-lok” Locknut 2
