Stryker CUB FL19F User Manual

Return To Table of Contents
www.stryker.com 1900-009-002 REV B 1-97
English
19
18
17
13
12
14
27
15
7
19
18
13
12
14
11
10
5
6
7
9
8
16
2
1
A
A
B
B
C
C
D
D
E
E
3
4
20
21
22
24
25
25
28
29
30
31
32
28
5
8
15
19
18
17
16
28
26
8
15
23
CONNECT TO CONTROL BOARD
33
T7
T7
34
34
T75
T75
T130
T130
T130
T175
T175
T35
T35
T35
THE BUMPER (ITEM #10) MUST SPIN FREELY
AFTER BOLT (ITEM #8 AND #11) IS TIGHTENE
D.
FOOT LEFT
HEAD LEFT
HEAD RIGHT
FOOT RIGHT
BOTTOM VIEW OF CONTROL BOARD
Power Supply Connector
Angle Sensor Cable
Foot Left
Foot Right
Head Left
Head Right

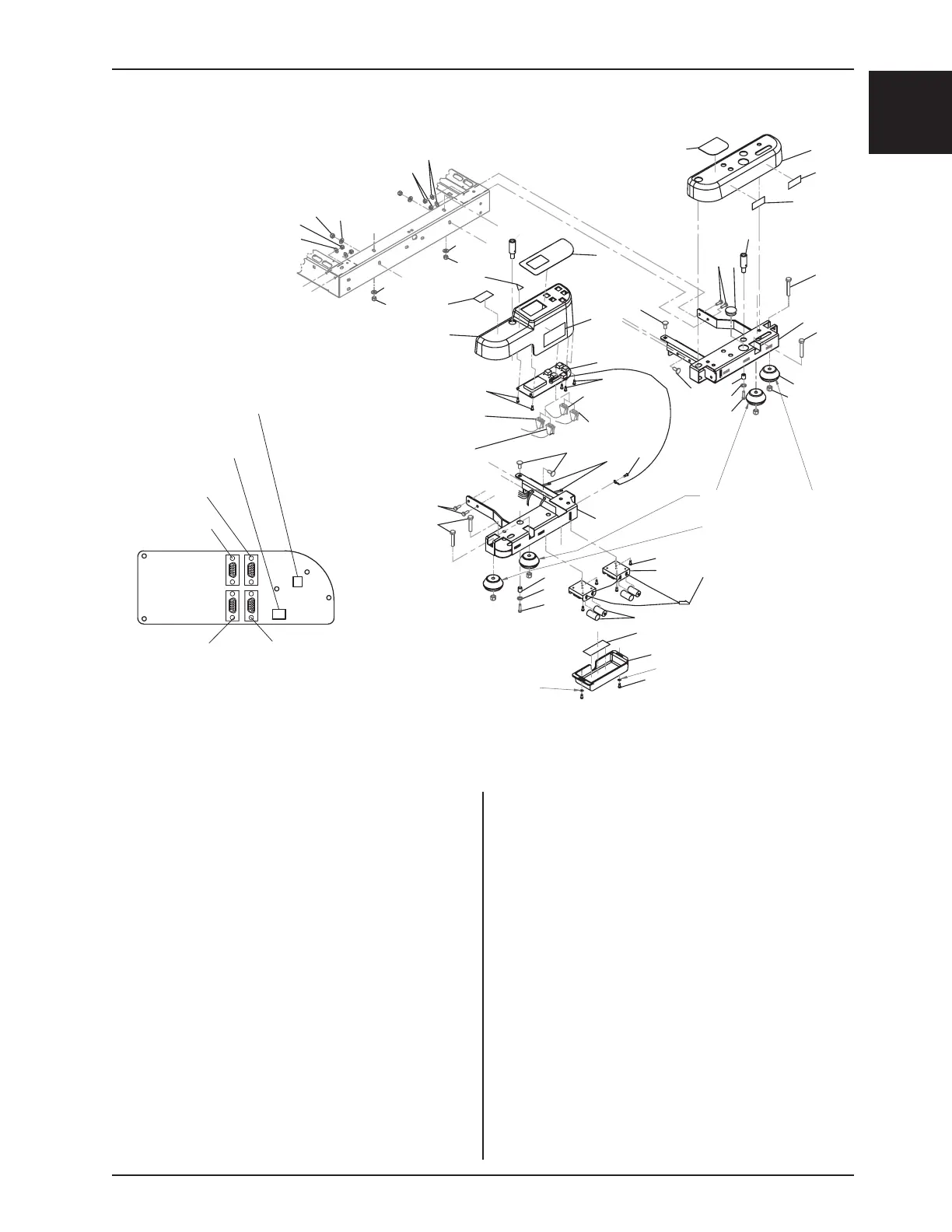

Premium Accessory Brackets with Scale Option
OL190143W Rev F (Reference only)
1 QP19-0357 Bracket Cover, Left 1
2 QE71-0346 ‘Stryker’ Label 1
3 QE71-0655-F I.V. Pole Label 1
4 QE71-0534-BIL Oxygen Bottle and I.V. Pole
Label 1
5 VB15A1N24 Hex Bolt 4
6 QDFP1514 Domed Cap 1
7 19-0777C Fixed Socket 2
8 VB15A1P50 Hex Bolt 4
9 19-0392W Accessory Bracket, Left 1
10 QDF5072 Corner Bumper 4
11 VE30A1P Nylon Hex Locknut 4
12 VB15A1P40 Hex Bolt 2
13 VW20A12 Washer 2
14 19-0778Z Fixed Socket Spacer 2
15 VB35A1O24 Carriage Bolt 4
16 VW10A08 Washer 4
17 VE30A1N Nylon Hex Locknut 4
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
18 VW10A10 Washer 4
19 VE30A1O Nylon Hex Locknut 4
20 QE71-0654-F ‘Electronic Component’ Label 1
21 QP19-0868 Bracket Cover with Scale 1
22 QDF19-0867 Scale Membrane 1
23 QE18545 ‘Refer to Manual’ Label 1
24 QDF19-0888 Scale PC Board 1
25 VV83A9E08 Pan Head Tapping Screw 5
26 QDF9518 Black Cable Tie 2
27 19-0879W Standard Bracket for Scale 1
28 VV83A9E16 Pan Head Tapping Screw 7
29 QDF19-0933 Battery to PC Board Lead 1
30 QDF7909 ‘C’ Type Battery 4
31 QE71-0656-F ‘Battery Type’ Label 1
32 QP19-0887 Battery Housing Cover 1
33 QE71-0680-F ‘Weighing Zone’ Label 1
34 VW11A9E Flat Washer 2
Premium Accessory Brackets with Scale - OL190143W Rev F - (Reference only)
