Wheel Assembly, Fixed Base
1 QDF5059 Butterfly Brake Pedal 2
2 VG10B0642 Spring Pin 2
4 QPN-13-0159 Nylon Bushing 2
5 M0019 Petro Canada OG2 Grease .16 kg
6 VG10B0432 Spring Pin 2
7 VV11B1P48 Flat Head Cap Screw 1
8 17-0243 5
th
Wheel Bushing 1
9 17-0104Z 5
th
Wheel Support 1
10 17-0124W 5
th
Wheel Spring 1
11 17-0083Z Torsion Lever 2
12 QPN-18315 Nylon Bushing 4
13 VV11A1O36 Flat Head Cap Screw 2
14 17-0061W Clearance Arm 1
15 VE30A1O Nylon Hex Locknut 13
16 RL5 5
th
Wheel 1
17 VB15A1O50 Hex Bolt 1
18 19-0272W 5
th
Wheel Shaft 1
19 19-0624Z Right Support Plate 1
20 VB15A1O32 Hex Bolt 7
21 VB15A1O40 Hex Bolt 1
OL190007 Rev J (Reference only)
Item Part No. Part Name Qty.
22 28-0150Z Counter Lever 4
23 QDF17-0020 Shoulder Spacer 8
24 VE50A1N Two-way Hex Locknut 1
25 19-0268W Brake Pedal Shaft 1
26 VB15A1P52 Hex Bolt 2
27 VE10A1P Hex Nut 2
28 VW10A12 Washer 4
29 VE30A1P Nylon Hex Locknut 2
30 VV33A0G16 Pan Head Machine Screw 2
31 VE30A0G Nylon Hex Nut 2
32 QR19-0812 Neutral Guide Plate 1
33 19-0810Z Left Support Plate 1
34 QDB7812 Grey Anti-slip Tape .083 ft
35 VW20A10 Spring Washer 1
36 VE10A1O Hex Nut 1
37 QREB-690 Spring 1
38 VD60A1N2410 Shoulder Bolt 1
39 19-0811 Neutral Wheel 1
40 VB15A1O52 Hex Bolt 1
Item Part No. Part Name Qty.
5
th

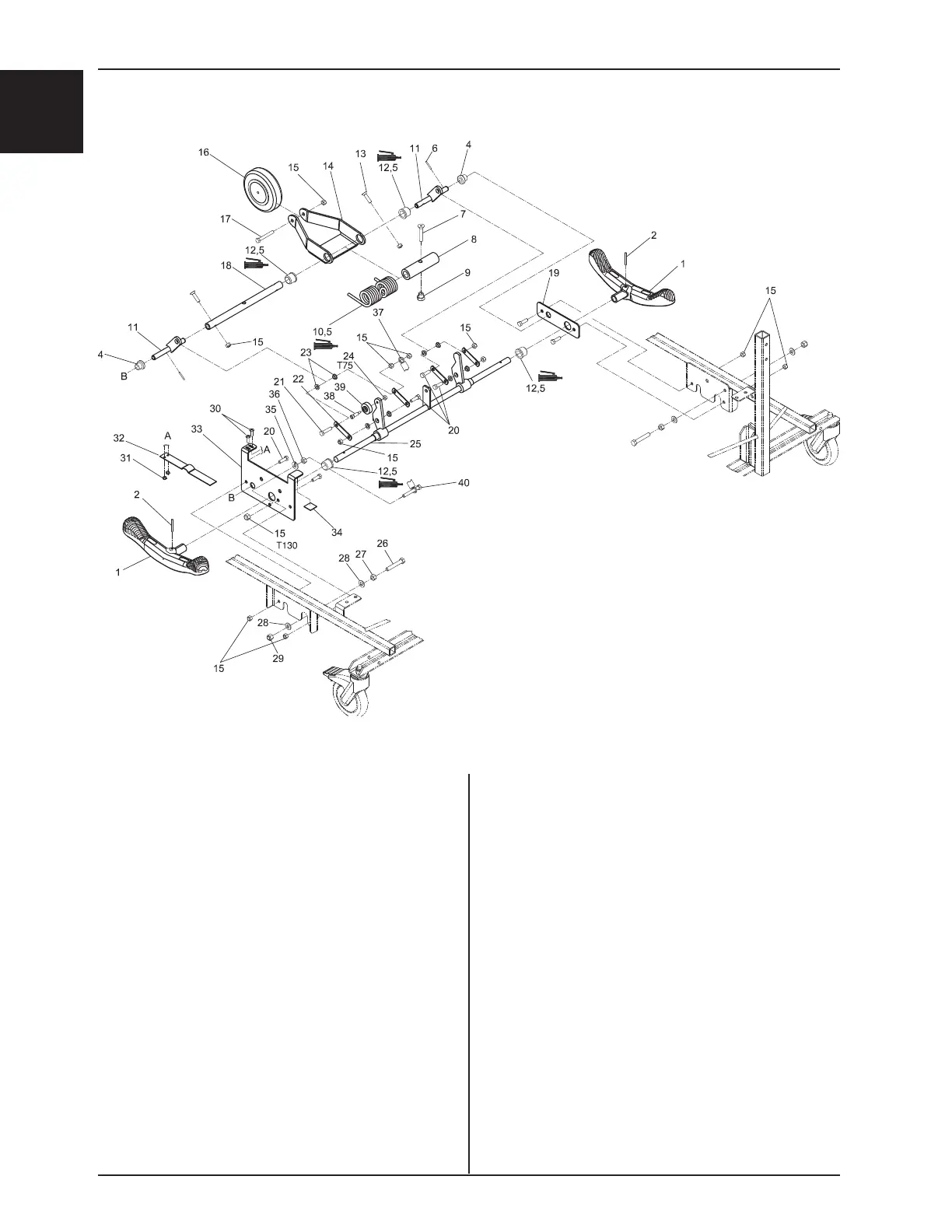

Wheel Assembly, Fixed Base - OL190007 Rev J (Reference only)
