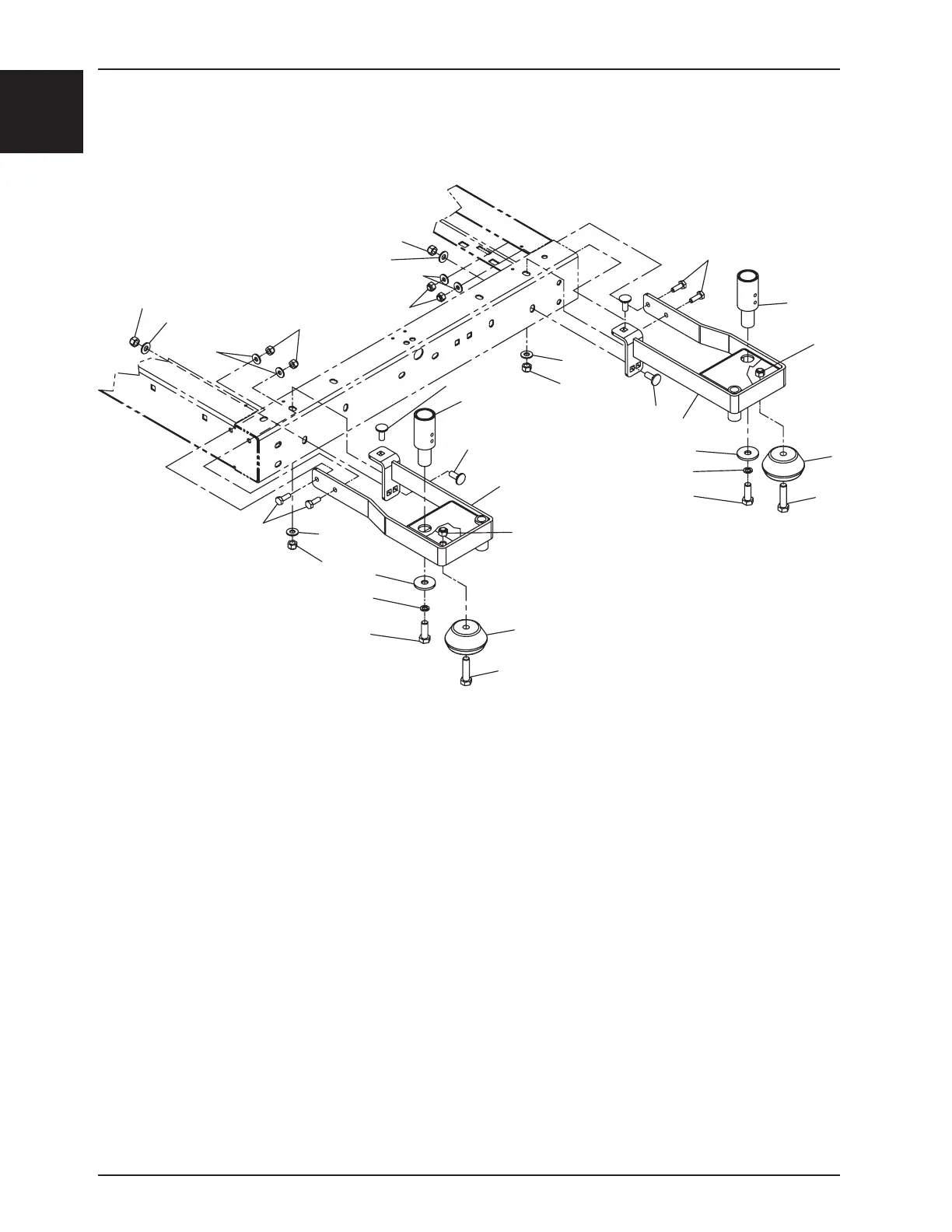

Head end Standard Accessory Brackets - OL190089W Rev K (Reference Only)
Item Part No. Part Name Qty.
1 19-0832W Standard Support, Right 1
3 QDF5072 Corner Bumper 2
4 VB15A1P40 Hex Bolt 2
5 VB35A1O24 Carriage Bolt 4
6 VB15A1N24 Hex Bolt 4
7 VW10A10 Washer 4
8 VE30A1O Nylon Hex Locknut 4
9 VE30A1N Nylon Hex Locknut 4
10 VW10A08 Washer 4
11 19-0833W Standard Support, Left 1
12 19-0973C Fixed Socket for Std. Accessory Brkt. 2
13 VW11A12 Washer 2
14 VW20A12 Lock Washer 2
15 VB15A1P24 Hex Bolt 2
16 VE30A1P Nylon Hex Locknut 2
