www.stryker.com 1900-009-002 REV B 1-117
English

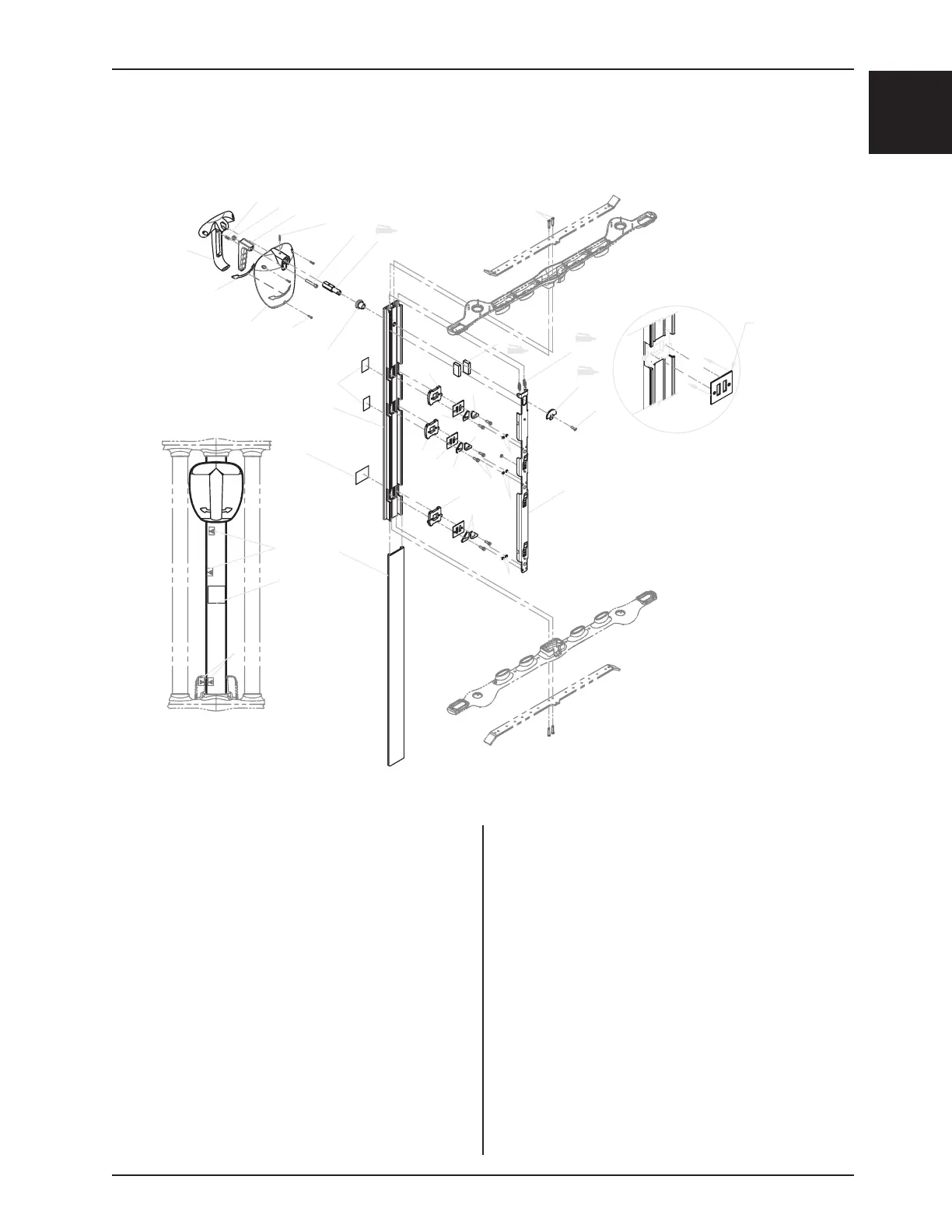

Central Column without 9 in Double Safety Lock
1
9
2
3
4
5
6
7,8
12
11
10
13
28
22
23
24
25
26
27
19,8
14
18,8
16
15,8
21
26
26
29
29
29
29
30
30
30
22
25
31
THE BURRS ON PART 19-049
4
TOWARDS THE INSIDE OF
MUST BE ORIENTED
THE COLUMN.
THE TRIGGER (ITEM 4 AND 6) MUST COME
BACK TO ITS INITIAL POSITION EVERYTIME
TO GARANTEE THE DOUBLE ACTION
MOVEMENT AND THE SAFETY.
T35
T45
T45
T35
OL190141-XXX Rev L (Reference only)
1 QP19-0529-09 Handle 1
2 QRC9793 Compression Spring 1
3 VE30A1N Nylon Hex Locknut 1
4 QP19-0054 Trigger 1
5 VV60A1G20 Set Screw 1
6 VV10A1N40 Hex Socket Head Cap Screw 1
7 19-0806Z Handle Shaft 1
8 M0019 Petro Canada OG2 Grease .1kg
9 QE71-0502 Handle Left/Right Label 1
10 QP19-0530-10 Handle Guard 1
11 VV23A9A16 Pan Head Tapping Screw 3
12 QPN-13-0159 Nylon Bushing 1
13 19-0515P Central Locking Column 1
14 VVZ7A1E32 Pan Head Tapping Screw 4
15 19-0807Z Handle Cam 1
16 VV31K0G20 Machine Screw 1
18 19-0491Z Push Bar 2
19 QRE19-0500 Spring, Outer 2
21 19-0929 Bolt Activation Plate 1
22 19-0793Z Truncated Fixed Stopper 2
23 19-0494 Nylon Spacer 3
24 19-0814Z Locking Pivot 6
25 19-0517 Truncated Latch Release 2
26 19-0499 Latch Release 4
27 19-0792Z Fixed Stopper 1
28 QP19-0519 Column Cover 1
29 QE71-0503 Siderail 26 in. Position Label 2
30 VW10A05 Washer 6
31 QE71-0624-XXX Without 9 in Double Safety
Lock’ Label 1
Item Part No. Part Name Qty.
Item Part No. Part Name Qty.
Central Column without Double Safety Lock - OL190026W Rev 13 - (Reference only)
