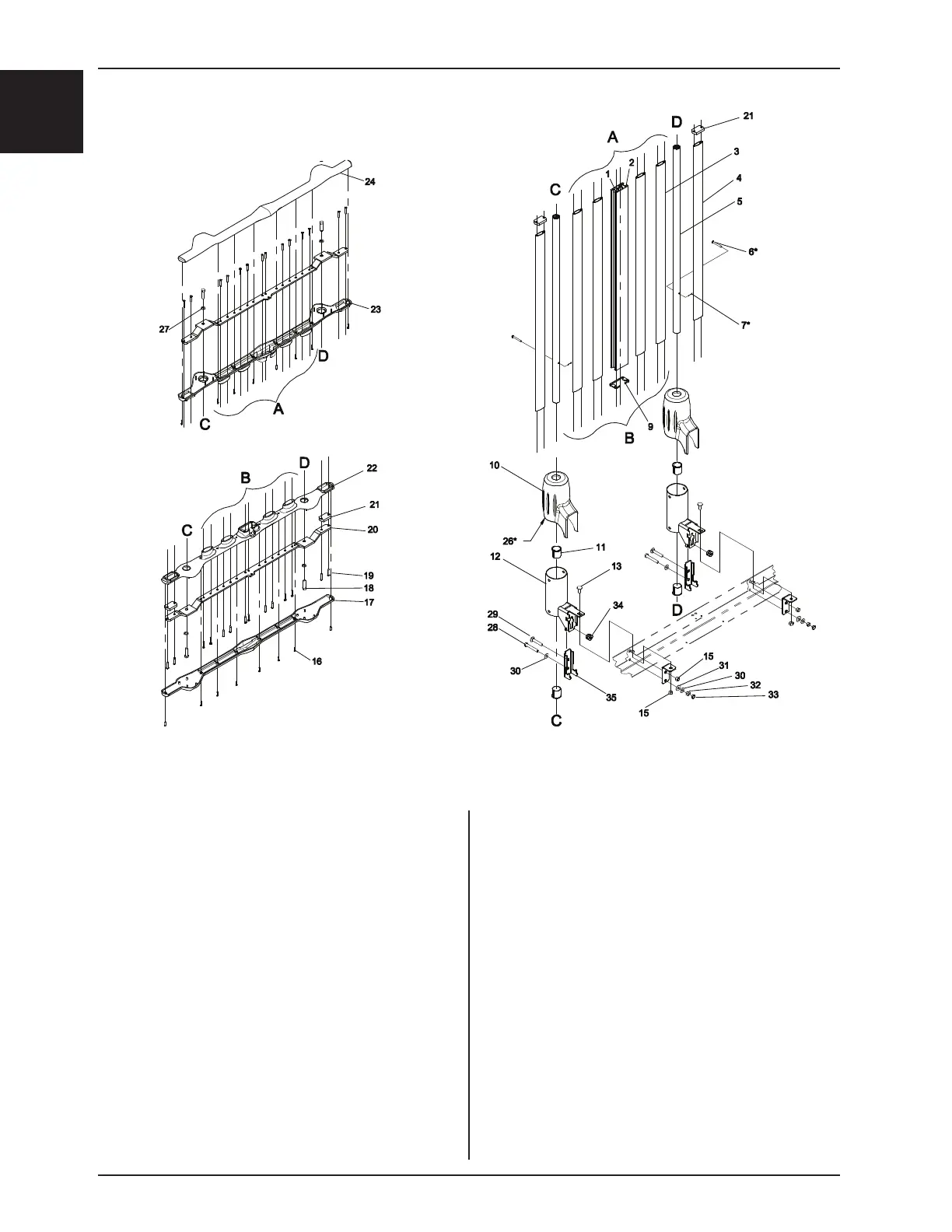

Fixed Endrail Assembly
19-0695L Rev 04 (Reference only)
1 19-0630W Fixed Central Column 1
2 QP19-0519 Column Cover 1
3 19-0263W Inner Oval Post 4
4 19-0264W End Oval Post 2
5 19-0632W Fixed Guide Post 2
6 VG50B0642 Clevis Pin 2
7 VG40B0316 Cotter Pin 2
9 QPN-19-0647 Seal 1
10 QP19-0256-10 Barrel Cover 2
11 QPN-18121 Molded Frame Bushing 4
12 19-0870Z Fixed Enderail Support 2
13 VB35A1O24 Carriage Bolt 2
14 19-0548Z Frame Reinforcement Plate 2
15 VE30A1O Nylon Hex Locknut 4
16 VV83A9A20HL Pan Head Tapping Screw 16
17 19-0649 Perforated Siderail Cover 1
18 VB18A1O36 Hex Bolt 4
19 VVZ7A1E32 Pan Head Tapping Screw 28
20 19-0507Z Siderail Structural Member 2
21 19-0487Z Access Door Spacer 4
22 QP19-0466-10 Siderail Cover 1
23 19-0650 Perforated Siderail Cover 1
24 QP19-0465-10 Siderail Cover 1
25 L70-268 Fixed Parts Bag (not shown) 1
26 M0029 Baby Powder 1 g
27 VW20A10 Spring Washer 4
28 VB15A1O48FT Hex Bolt 2
29 VB30A1O44 Carriage Bolt 2
30 VW10A10 Washer 4
31 VW10C241002 Nylon Washer 2
32 VE10A1O Hex Nut 2
33 VE20A1O Hex Jam Nut 2
34 19-0869Z Floating Nut 2
35 19-0861W Adjustment Support 2
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
Fixed Endrail Assembly - OL190015W Rev - - (Reference only)
