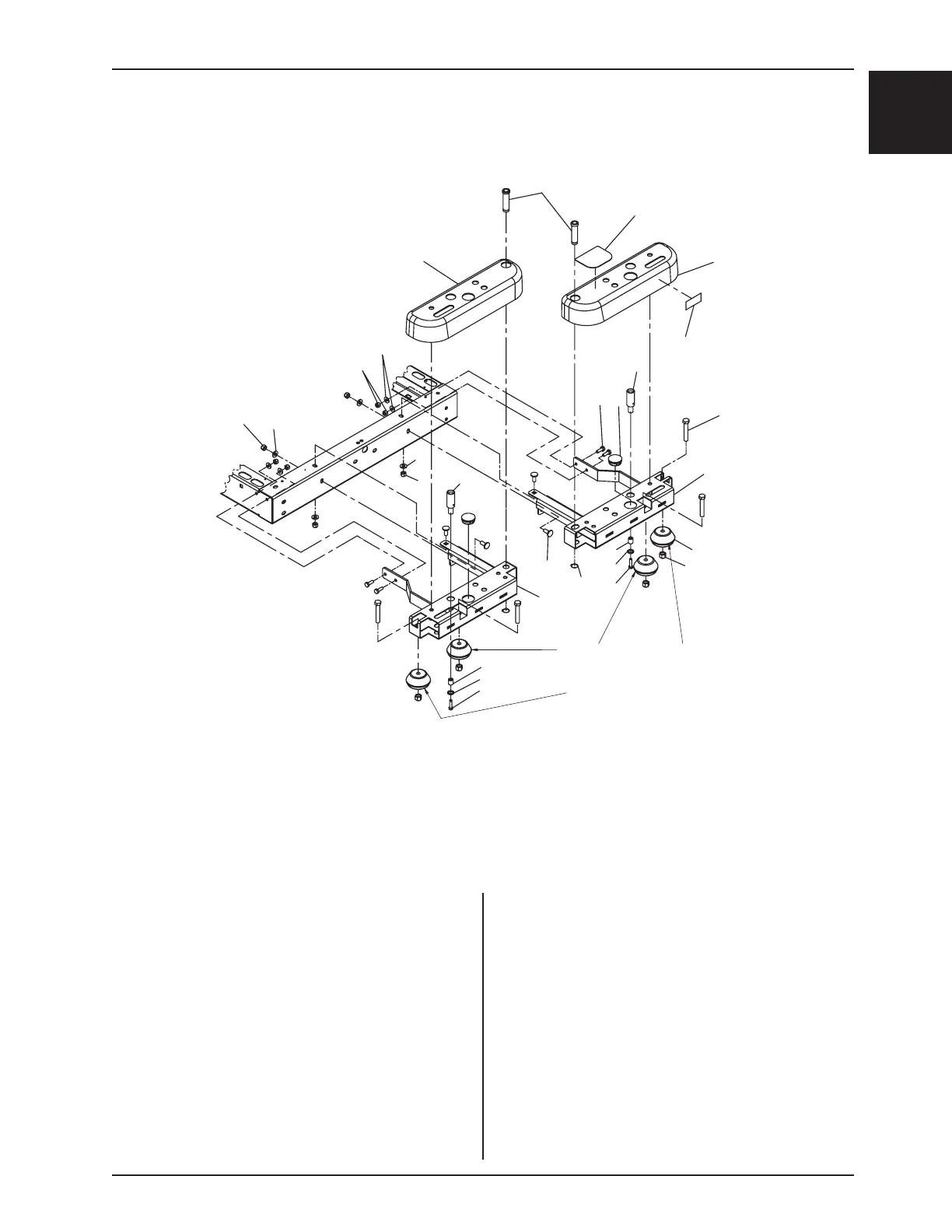

Premium Accessory Brackets
14
15
16
22
23
21
12
11
20
14
15
22
23
10
21
9
8
5 6
20
7
4
17
1
2
19
18
3
THE BUMPER (ITEM #8) MUST SPIN FREELY
AFTER BOLT (ITEM #9 AND #4) IS TIGHTENED.
T175
T175
T75
T130
T130
1 QP19-0357 Accessory Bracket Cover, Lt 1
2 QDF5057 Accessory Support Socket 2
3 QP19-0358 Accessory Bracket Cover, Rt 1
4 VB15A1P50 Hex Bolt 4
5 VB15A1N24 Hex Bolt 4
6 QDFP1514 Cap 2
7 19-0392P Accessory Bracket, Left 1
8 QDF5072 Corner Bumper 4
9 VE30A1P Nylon Hex Locknut 4
10 QDF7893 Snap Ring 2
11 VB35A1O24 Carriage Bolt 4
12 19-0391P Accessory Support, Right 1
14 VE30A1O Nylon Hex Locknut 4
15 VW10A10 Washer 4
16 VE30A1N Nylon Hex Locknut 4
17 VW10A08 Washer 4
18 QE71-0346 Stryker Label 1
19 QE71-0534-XXX Oxygen Bottle and I.V. Pole
Label 1
20 19-0777C Fixed Socket 2
21 19-0778Z Fixed Socket Spacer 2
22 VW20A12 Lock Washer 2
23 VB15A1P40 Hex Bolt 2
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
Premium Accessory Bracket Assembly - OL190040-XXX Rev K - (Reference only)
OL190040-XXX Rev K (Reference only)
