Stryker CUB FL19F User Manual

Return To Table of Contents
www.stryker.com 1900-009-002 REV B 1-93
English

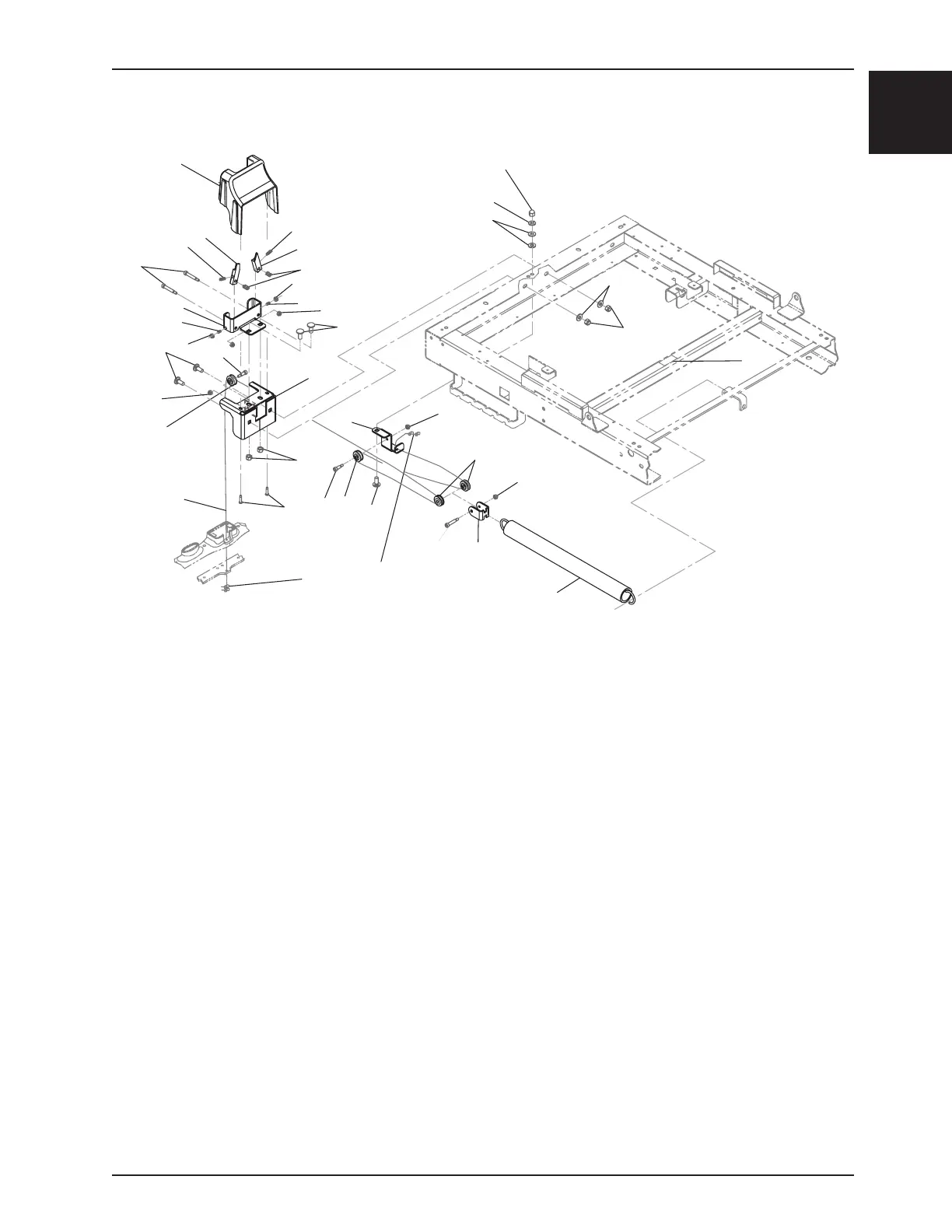

Endrail Assist System
OL190020W Rev L (Reference only)
THEY ARE FIRMLY DONE
MAKE 2 KNOTS AND ENSURE
FAIRE 2 NOEUDS ET S'ASSURER
QU'ILS SONT SOLIDES
20
18
23
8
7
T35
3
12
10
T130
22
9
10
21
18
14
16
T35
7
17
19
6
5
4
8
24
11
T35
7
8
T35
7
9
1
3
T130
1
25
T130
13
2
27
26
26
27
T4.5
T35
Endrail Assist System - OL190020W Rev L (Reference Only)
Item Part No. Part Name Qty.
1 VW10A10 Washer 4
2 VE40A1O Cap Nut 1
3 VE30A1O Nylon Hex Locknut 4
4 QRE19-0219 Endrail Spring 1
5 19-0187Z Pulley Bracket 1
6 VD60B0G0832 Shoulder Screw 1
7 VE30A1G Nylon Hex Locknut 5
8 QP19-0196 Assist System Pulley 4
9 VB35A1O24 Carriage Bolt 4
10 VD60B0G0816 Shoulder Screw 2
11 19-0857Z Fixed Roller Support 1
12 VV83A9E16 Shoulder Screw 2
13 VW20A10 Spring Washer 1
14 19-0452W Brake Shoe Support 1
16 QRCB-640 Endrail Compression Spring 2
17 QDF19-0368ZN Left Stop Catch 1
18 QRC9793 Compression Spring 2
19 QP19-0411-10 Brake Shoe Cover 1
20 QDF19-0374ZN Right Stop Catch 1
21 VD60B1N36 Shoulder Screw 2
22 19-0364Z Brake Shoe 1
23 19-0997 Assist System Cable 1
24 VB35A1O24-S Hex Bolt 1
25 QDB7812 Grey Anti-slip Tape .1667 ft
26 VV60B0G12 Set Screw 2
27 VE80A0G “K-lok’ Locknut 2
