Optional 5
th
Wheel Assembly, Hydraulic Base
1,2
3
4
6
7
8
4
3
12
1,2
13
14
15
16,2
17
18
8
12
9
11
10
5,2
5,2
19
20
10
9
11
17
ASSEMBLED VIEW
T130
T75
T75
PLACE THE WHEEL IN THE
HORIZONTAL POSITION
8
T130
22
8
T130
20
T240
T130
OL190006 Rev F (Reference only)
5
th

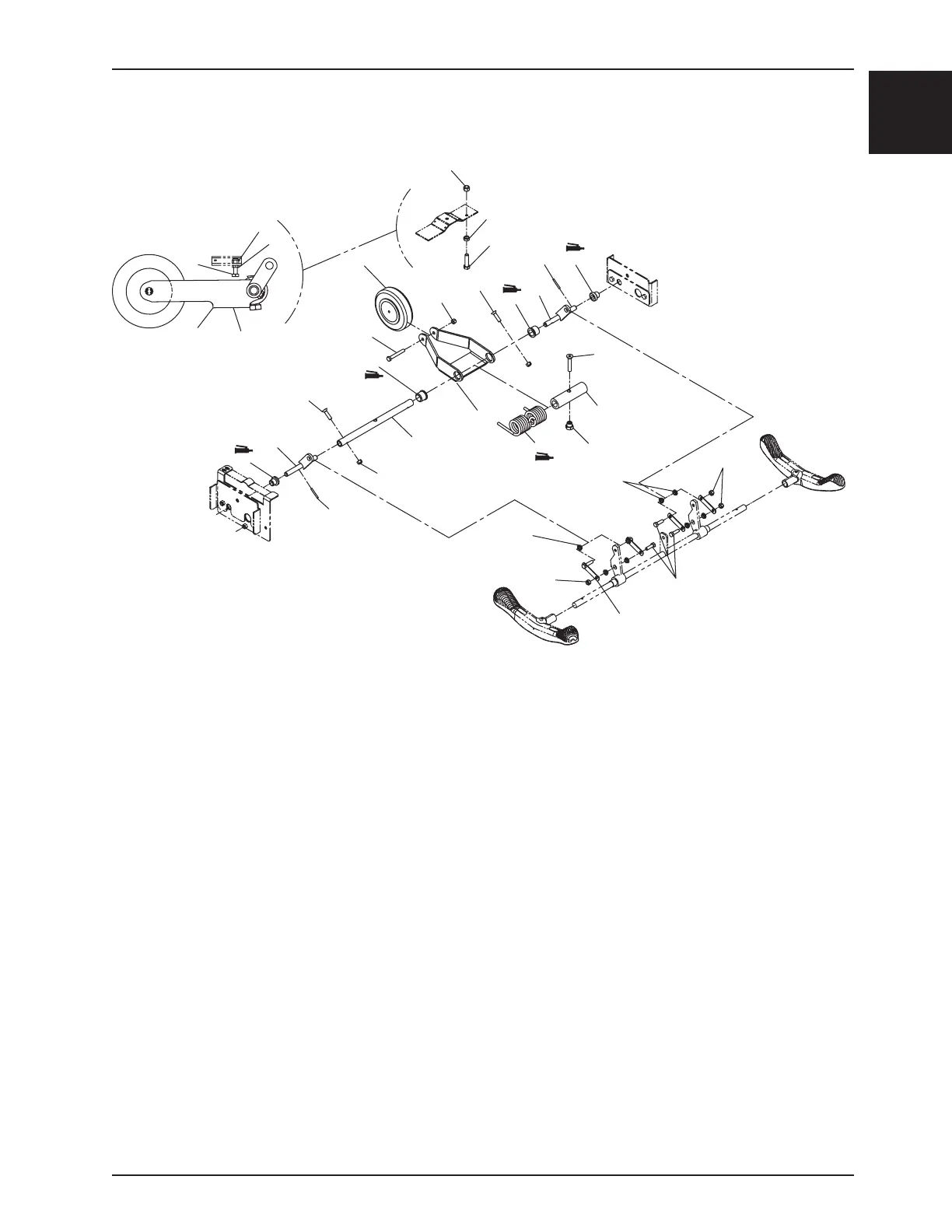

Wheel Assembly, Hydraulic Base - OL190006 Rev F (Reference Only)
Item Part No. Part Name Qty.
1 QPN-13-0159 Nylon Bushing 2
2 M0019 Petro Canada OG2 Grease .24 kg
3 17-0083Z Torsion Lever 2
4 VV11A1O36 Flat Head Hex Socket Cap Screw 2
5 QPN-18315 Nylon Bushing 2
6 VB15A1O50 Hex Bolt 1
7 RL5 5
th
Wheel 1
8 VE30A1O Nylon Hex Locknut 9
9 VE30A1N Nylon Hex Locknut 1
10 VE20A1N Hex Locknut 1
11 VB15A1N32 Hex Bolt 1
12 VG10B0432 Spring Pin 2
13 VV11B1P48 Flat Head Hex Socket Cap Screw 1
14 17-0243 5
th
Wheel Bushing 1
15 17-0104Z 5
th
Wheel Support 1
16 17-0124W 5
th
Wheel Spring 1
17 17-0061W Clearance Arm 1
18 19-0272W 5
th
Wheel Shaft 1
19 28-0150Z Counter Lever 4
20 QDF17-0020 Shoulder Spacer 7
22 VB15A1O32 Hex Bolt 3
