Footend Standard Accessory Brackets
7
6
7
8
10
8
7
9
4
3
8
FOOT
5
1
9
10
8
5
11
7
6
5
16
4
3
16
12
12
13
14
15
15
14
13
T175
T175
T130
T130
T75
T130
T75
OL190091W Rev K (Reference only)

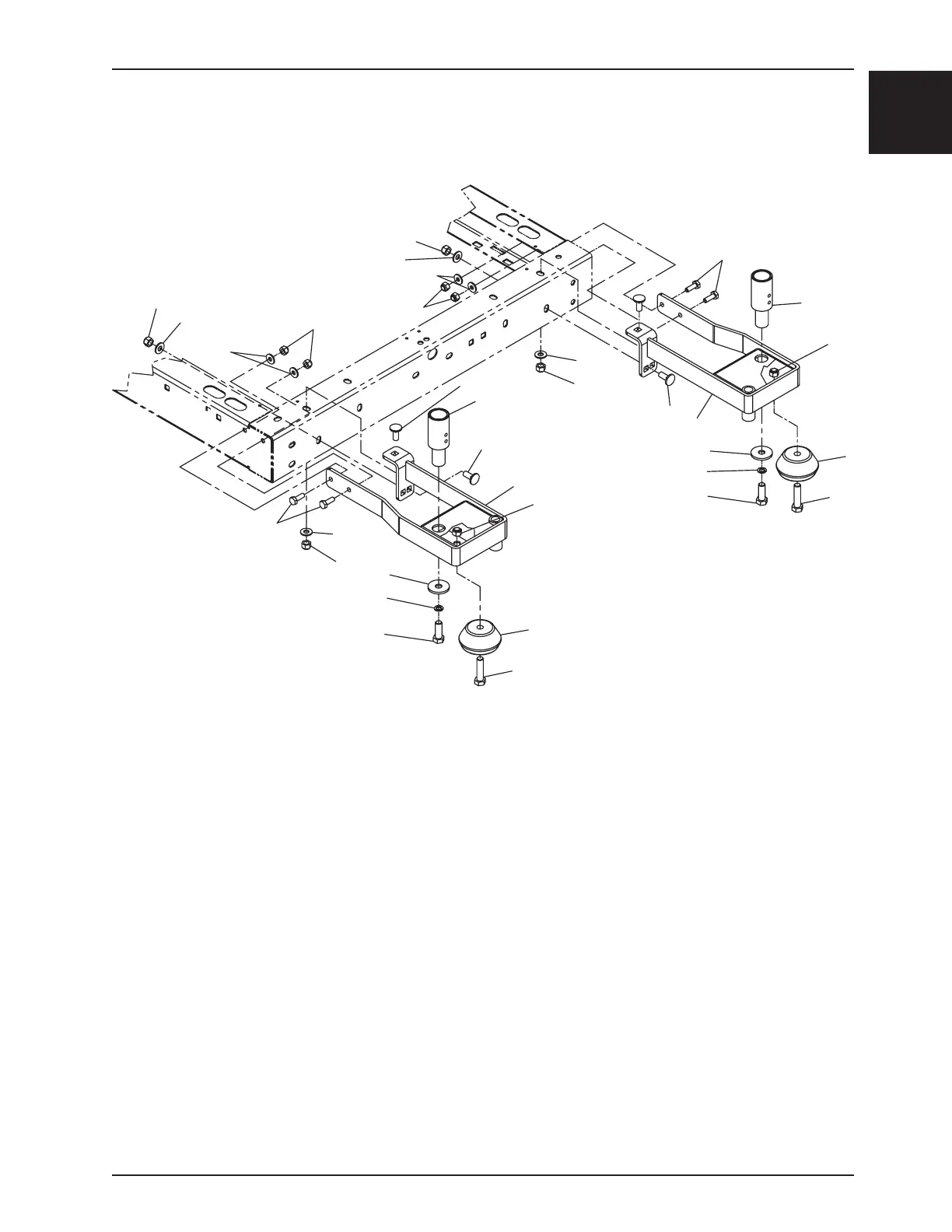

Footend Standard Accessory Brackets - OL190091W Rev K - (Reference only)
Item Part No. Part Name Qty.
1 19-0832W Standard Support, Right 1
3 QDF5072 Corner Bumper 2
4 VB15A1P40 Hex Bolt 2
5 VB35A1O24 Carriage Bolt 4
6 VB15A1N24 Hex Bolt 4
7 VW10A10 Washer 4
8 VE30A1O Nylon Locknut 4
9 VE30A1N Nylon Locknut 4
10 VW10A08 Washer 4
11 19-0833W Standard Support, Left 1
12 19-0973C Fixed Socket for Std. Accessory Brkt. 2
13 VW11A12 Washer 2
14 VW20A12 Lock Washer 2
15 VB15A1P24 Hex Bolt 2
16 VE30A1P Nylon Hex Locknut 2
