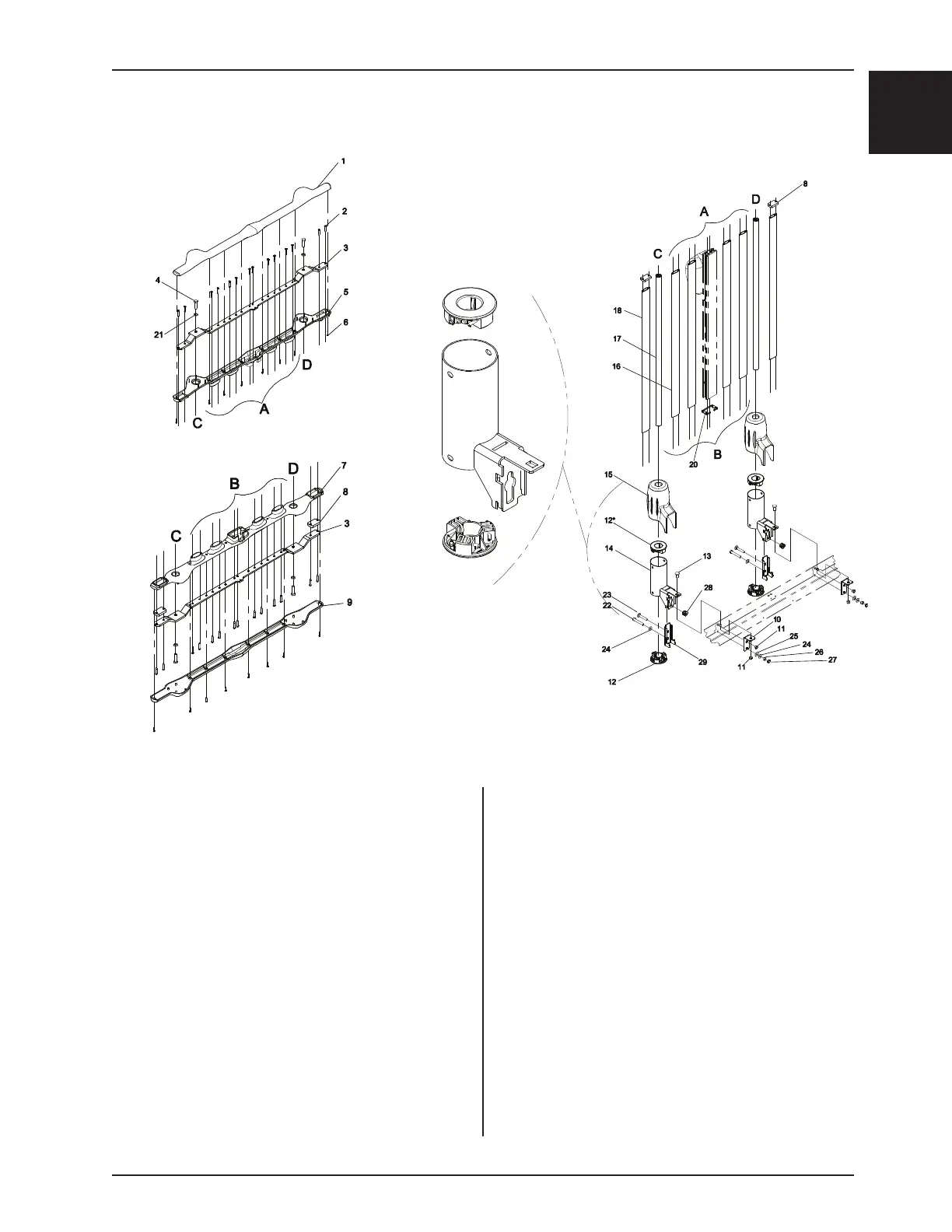

Adjustable Endrail Assembly
OL190010 Rev 16 (Reference only)
1 QP19-0465 Siderail Cover 1
2 VVZ7A1E32 Pan Head Tapping Screw 24
3 19-0507Z Siderail Structural Member 2
4 VB18A1O36 Hex Bolt 4
5 19-0650 Perforated Siderail Cover 1
6 VV83A9A20HL Pan Head Tapping Screw 16
7 QP19-0466 Siderail Cover 1
8 19-0487Z Access Door Spacer 4
9 19-0649 Perforated Siderail Cover 1
10 19-0548Z Frame Reinforcement Plate 2
11 VE30A1O Nylon Hex Locknut 4
12 19-0305 Rolling Bearing Support 4
13 VB35A1O24 Carriage Bolt 2
14 19-0859Z Moving Siderail Support 2
15 QP19-0256-10 Barrel Cover 2
16 19-0263P Inner Oval Post 4
17 19-0513C Sliding Guide Post 2
18 19-0264P End Oval Post 2
20 QPN-19-0647 Seal 1
21 VW20A10 Spring Washer 4
22 VB15A1O48FT Hex Bolt 2
23 VB35A1O44 Carriage Bolt 2
24 VW10A10 Washer 4
25 VW10C241002 Nylon Washer 2
26 VE10A1O Hex Nut 2
27 VE20A1O Hex Jam Nut 2
28 19-0869Z Floating Nut 2
29 19-0861P Adjustment Support 2
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
Adjustable Endrail Assembly - OL190010 Rev 16 - (Reference only)
