1-126 1900-009-002 REV B www.stryker.com
English

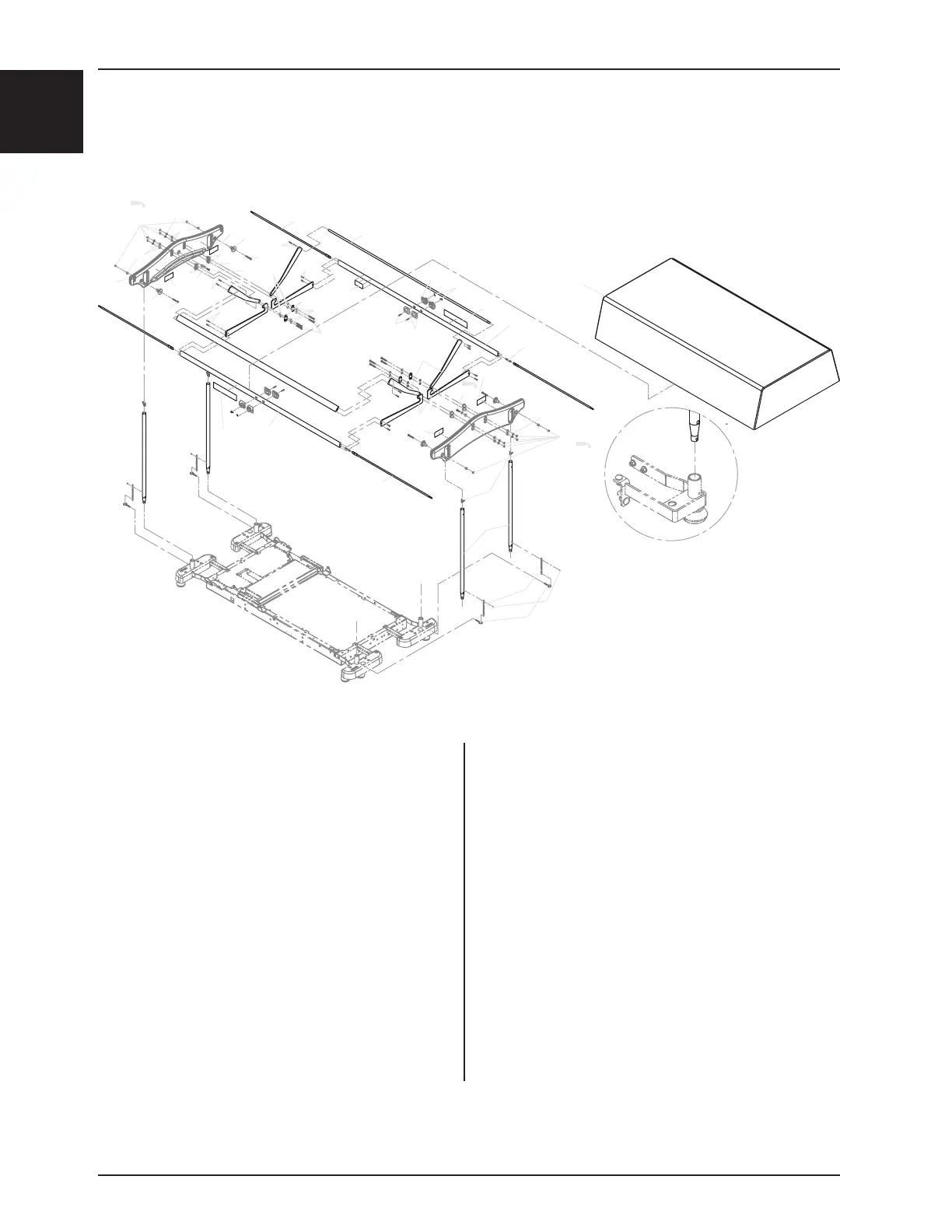

Retracting Protective Top - FA64074-XXX
18 QP19-0719 Mounting Structure 2
19 QDF5092 Snap Button 4
20 19-0684P Protective Top Post, Left 4
22 19-0527 Ground Chain 4
23 VR11H42 Pop Rivet 4
24 VG50A0632 Hitch Pin 4
27 QE-71-1339-XXX Manufacturer Label 1
29 QE71-0533 Protective Top Label 4
32 19-0795Z Friction Plate 4
33 QDF9540 Fiber Washer 8
34 M0008 Thread Locker (Medium) .16mL
35 VEX3A1N Hex Nut Insert 2
36 VW10C081802 Nylon Washer 2
37 VV33A1N24 Pan Head Machine Screw 2
38 VE30A1N Nylon Hex Locknut 8
39 QE71-0560-XXX Warning Label 2
2
1,34
18
6
7
6
7
14
17
15
7
6
11
8*
12
10
9
19
20
22
23
24
13
4
3
6
6
2
T15
T15
T15
T15
T15
4
16
16
5
5
27
12
29
29
29
29
33
32
1,34
35
36
37
38
34
T75
38
OL190089 ET OL190091
VIEW WITH STANDARD ACCESSORY BRACKETS
39
39
A
A
B
B
* PART 8 AND 12 MUST BE ASSEMBLY IN
THE MEMBRANE PROTECTIVE TOP (3)
BEFORE YOU BEGIN ASSEMBLY.
T25
T25
T15
T15
1 VE40A1N Cap Nut 12
2 19-0723 Outer Support 12
3 QDF19-0725 Protective Top Membrane 1
4 19-0748Z Protective Top Bolt 4
5 19-0820 Protective Top Guide 4
6 VVZ7A1E32 Pan Head Tapping Screw 20
7 VV33A1N50 Pan Head Machine Screw 12
8 19-0677P Protective Top Upper Rail 2
9 QP19-0545 Release Knob, Outer 4
10 QE71-0498 Release Knob Label, Orange 4
11 QP19-0546 Release Knob, Inner 4
12 19-0676P Protective Top Lower Rail 2
13 QRC19-0839 Protective Top Spring 2
14 19-0680P Upper Hinge Arm 4
15 VW30A0816 Spring Washer 8
16 19-0724 Inner Support 8
17 19-0679P Lower Hinge Arm 4
Item Part No. Part Name Qty.Item Part No. Part Name Qty.
L64-0041-XXX Rev M (Reference only)
