Siderail Common Components
4
2
5
1
14
6
7
28
27
14
24
23
8
22
25
26
9
9
14
TIGHTEN ITEMS 25 AND 26 TOGETHER SO
THAT ITEM 22 ROTATE WITH THOSE ITEMS.
C
D
A
B
14
OL190014 Rev 15 (Reference only)
1 19-0513C Sliding Guide Post 2
2 19-0263P Inner Oval Post 4
4 QP19-0256 Barrel Cover 2
5 19-0305 Rolling Bearing Support 4
6 QPN-19-0647 Seal 1
7 19-0859Z Moving Siderail Support 2
8 VB35A1O24 Carriage Bolt 2
9 VE30A1O Nylon Hex Locknut 4
10 VV83A9A20HL Pan Head Tapping Screw 16
11 QP19-0468 Siderail Cover 1
12 VB18A1O36 Hex Bolt 4
13 VVZ7A1E32 Pan Head Tapping Screw 16
14 VW10A10 Washer 8
15 19-0509Z Siderail Structural Member 1
17 QP19-0469 Siderail Cover 1
18 19-0650 Perforated Siderail Cover 1
19 19-0507Z Siderail Structural Member 1
20 QP19-0465 Siderail Cover 1
21 VW20A10 Spring Washer 4
22 VB15A1O48FT Hex Bolt 2
23 VB35A1O44 Carriage Bolt 2
24 VW10C241002 Nylon Washer 2
25 VE10A1O Hex Nut 2
26 VE20A1O Hex Jam Nut 2
27 19-0869Z Floating Nut 2
28 19-0861P Adjustment Support 2
Item Part No. Part Name Qty.
Item Part No. Part Name Qty.
20
12
21
19
13
18
10
C
D
A
PLACE CENTRAL COLUMN AND ACCESS
DOOR OPTIONS BEFORE BEGINNING THE
SIDERAIL ASSEMBLY.
10
10
12
21
15
17
13
11
C
B
D

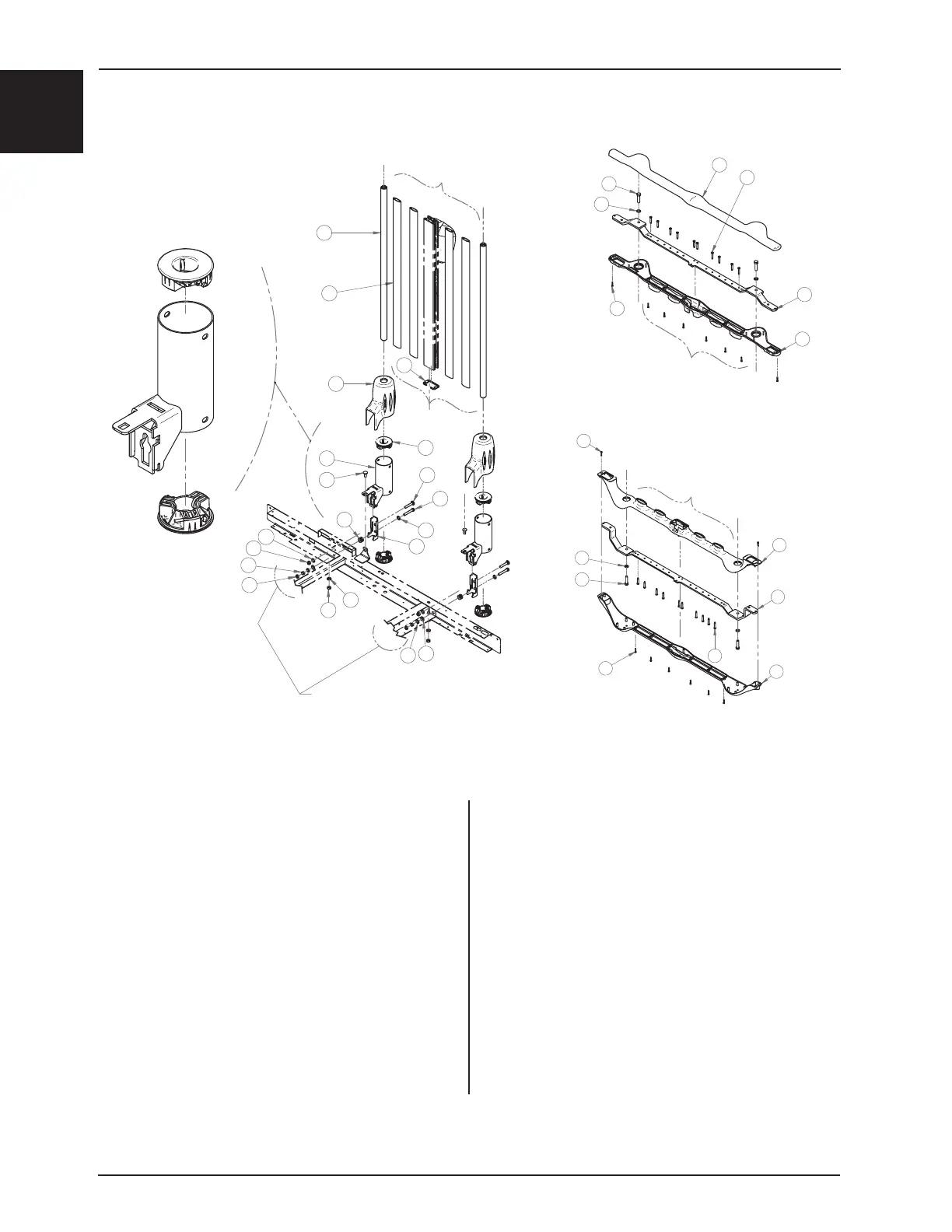

Siderail Assembly with Access Doors - OL190014 Rev 15 - (Reference only)
