1-80 1900-009-002 REV B www.stryker.com
English

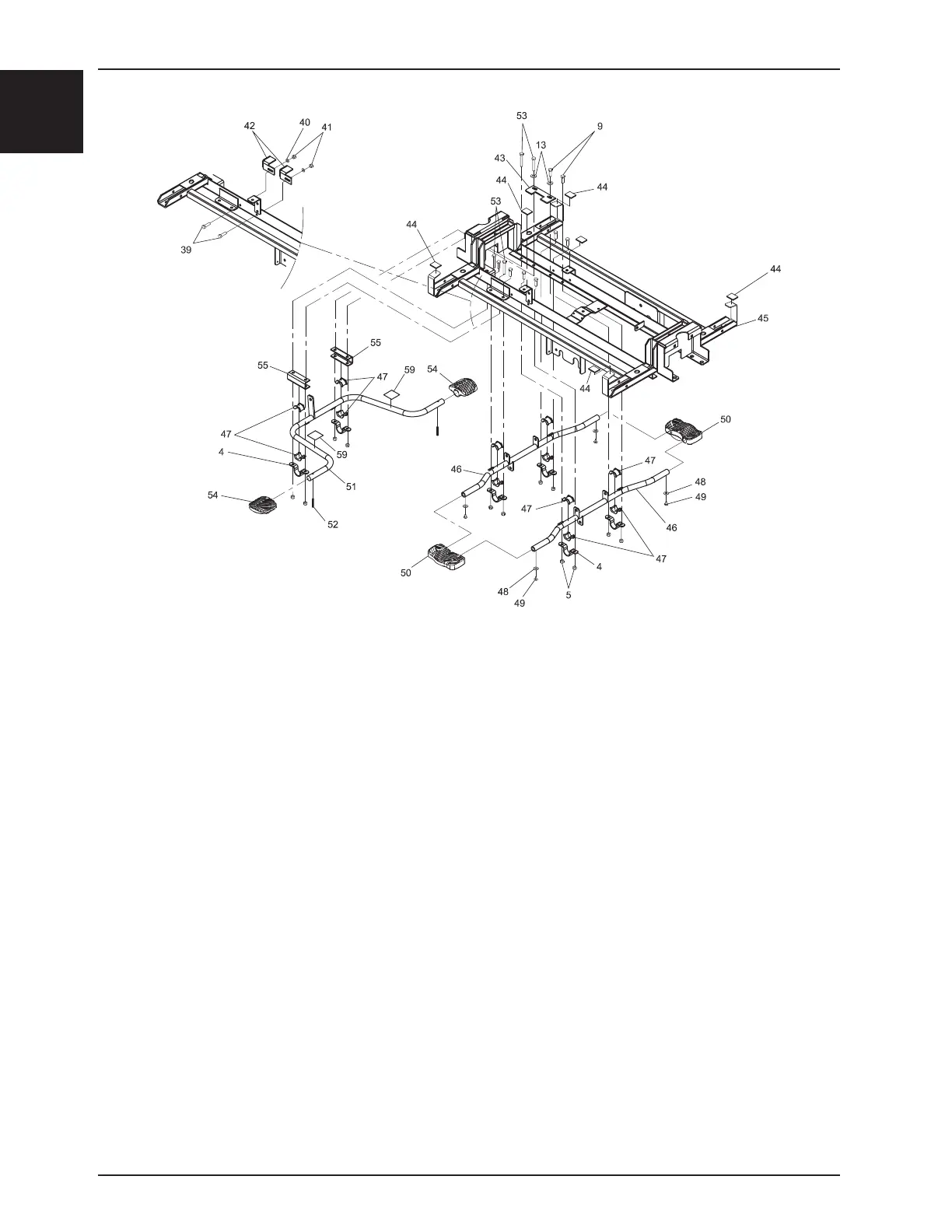

Hydraulic Base Assembly
1 QDF5053 Black Bellow 2
2 VB35A1O24 Carriage Bolt 4
4 14662Z Lever Clamp 6
5 VE30A1O Nylon Hex Locknut 22
7 VB15A1O24-S Hex Bolt 2
9 VB15A1O32 Hex Bolt 12
10 19-0346Z Cylinder Activation Bar 2
11 19-0345Z Activation Bar 1
12 QDF17-0020 Shoulder Spacer 6
13 VW10A10 Washer 6
14 VG40B0332 Cotter Pin 1
15 19-0344P Pivot Plate 1
16 VB18A1O36 Hex Bolt 2
17 19-0349Z Shoulder Socket 2
18 QRC763001015 Jack Spring 2
19 QDF5058 Spring Holder 2
20 QDF5055 Descent Lever 2
21 QDF5060 Constant Descent Hydraulic
Jack 2
22 VB18A1P36 Hex Bolt 8
23 VW10A12 Washer 8
24 QDF5054 Jack Clamp 2
25 QDF5077 Saftey Stop 2
26 VV60A0G08-S Hex Socket Set Screw 4
27 VE30A1P Nylon Hex Locknut 8
28 QPNI2402 Nylon Bushing 5
29 VG40B0316 Cotter Pin 3
Item Part No. Part Name Qty.
30 QRC17363 Compression Spring 2
31 19-0478Z Adjustable Stopper 2
32 19-0387Z Short Lowering Rod 1
33 19-0386Z Long Lowering Rod 1
34 VV81A9E16 Flat Head Tapping Screw 1
35 19-0527 Ground Chain 1
39 VB15A1N24 Hex Bolt 2
40 VW10A08 Washer 2
41 VE30A1N Nylon Hex 2
42 19-0670Z Single Stopper 2
43 19-0671Z Dual Stopper 1
44 19-0634 Hood Velcro Fastener 6
45 19-0441P Base 1
46 19-0351P Litter Lowering Pedal 2
47 QP19-0270 Shaft Support Bushing 12
48 VW10A06 Washer 4
49 VR11H64 Pop Rivet 4
50 QDF5061 Hydraulic Lowering Pedal 2
51 19-0233P Litter Raising Pedal 1
52 VG10B0642 Spring Pin 2
53 VB15A1O50 Hex Bolt 4
54 QDF5056 Hydraulic Raising Pedal 2
55 19-0483P Activation Pedal Support 2
58 M0019 Petro Canada OG2 Grease .24 kg
59 QDB7812 Grey Anti-slip Tape .167 ft
Item Part No. Part Name Qty.
Hydraulic Base Assembly - L19-014 Rev 01 (Reference only)
HEAD
FOOT
To Next Page
