AC-18
HVAC SYSTEM (HEATER, VENTILATOR AND A/C)
General Description

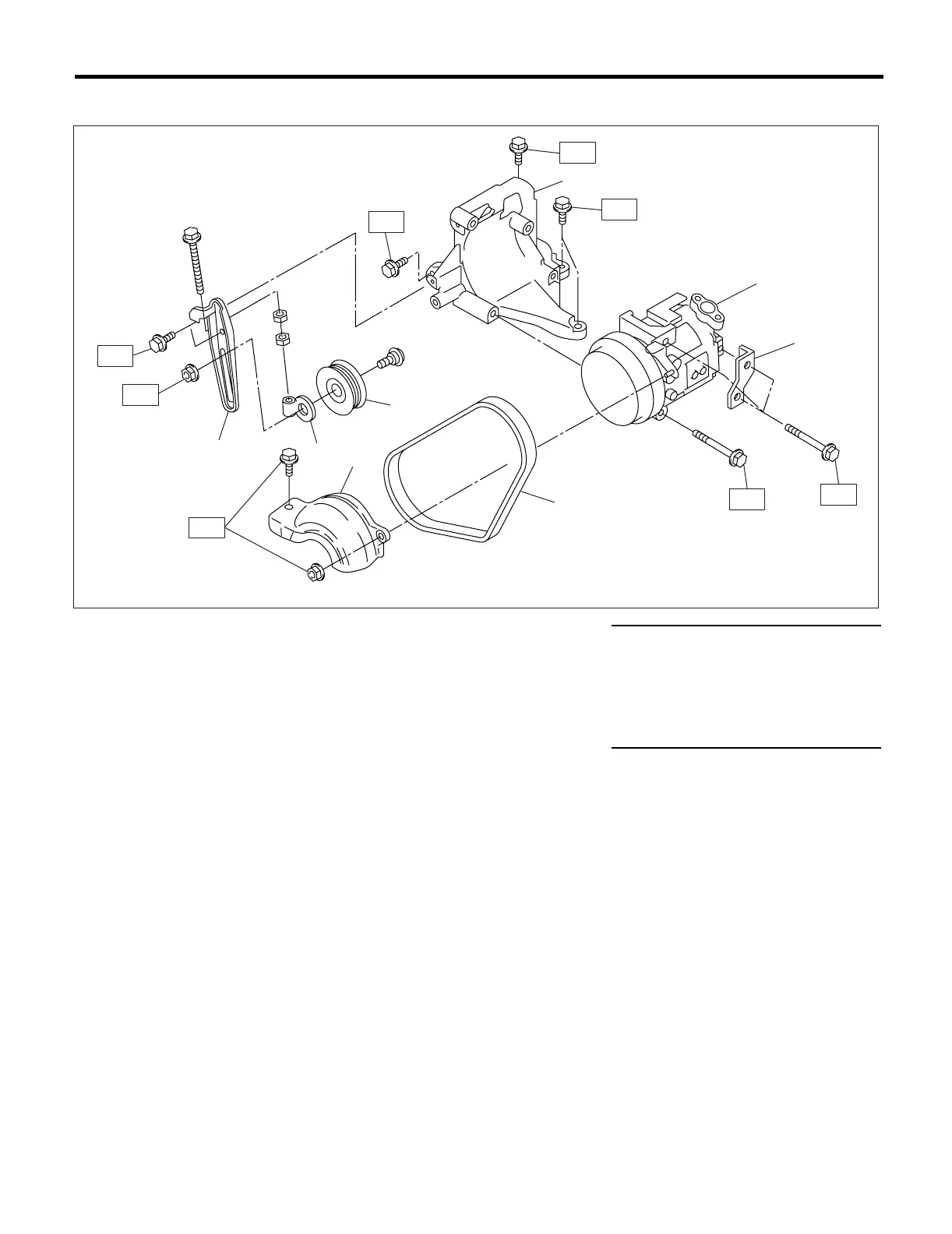

5. COMPRESSOR
(1) Idler pulley bracket (7) Compressor belt cover (Non-turbo
model)
Tightening torque: N·m (kgf-m, ft-lb)
(2) Idler pulley adjuster T1: 4.0 (0.40, 2.95)
(3) Idler pulley (8) Compressor stay T2: 22.6 (2.3, 16.6)
(4) Compressor bracket T3: 23.0 (2.35, 17.0)
(5) Compressor T4: 28.9 (2.95, 21.3)
(6) V-belt T5: 35 (3.6, 26)
AC-00335
(1)
(3)
(2)
(4)
(5)
(8)
(6)
(7)
T3
T2
T1
T5
T5
T5
T4
T4
