Rear Door Glass
B: INSTALLATION
1) Install in the reverse order of removal.
CAUTION:
Make sure that the glass stay is placed securely
in sash.
2) Adjust the rear door glass. <Ref. to GW-23, AD-
JUSTMENT, Rear Door Glass.>
Tightening torque:
Refer to COMPONENT in General Descrip-
tion. <Ref. to GW-4, REAR DOOR GLASS,
COMPONENT, General Description.>
C: ADJUSTMENT
NOTE:
The rear door glass, as a rule, should be adjusted in
the same manner as front glass, although they are
different in dimension. Special notes for the rear
glass are given below.
1) Adjust the glass position using the following di-
mensions as a guide line. (Clearance between up-
per side and lower side is within 1.5 mm (0.059 in).)
NOTE:
• If the dimensions are smaller than the given di-
mensions, glass may get caught in weather strip
during lifting/lowering operation. In the worst case, it
may cause the glass not to be opened fully.
• After adjustment, move the glass up and down to
check whether it is caught.
2) Adjust the crimp of glass using the following di-
mensions as a guide line.
NOTE:
• If the crimp of rear glass is higher than neces-
sary, glass may get caught in weather strip of cen-
ter pillar corner, resulting in early wear of weather
strip. Be careful when adjusting.
• After adjustment, move the glass up and down to
check whether it is caught.

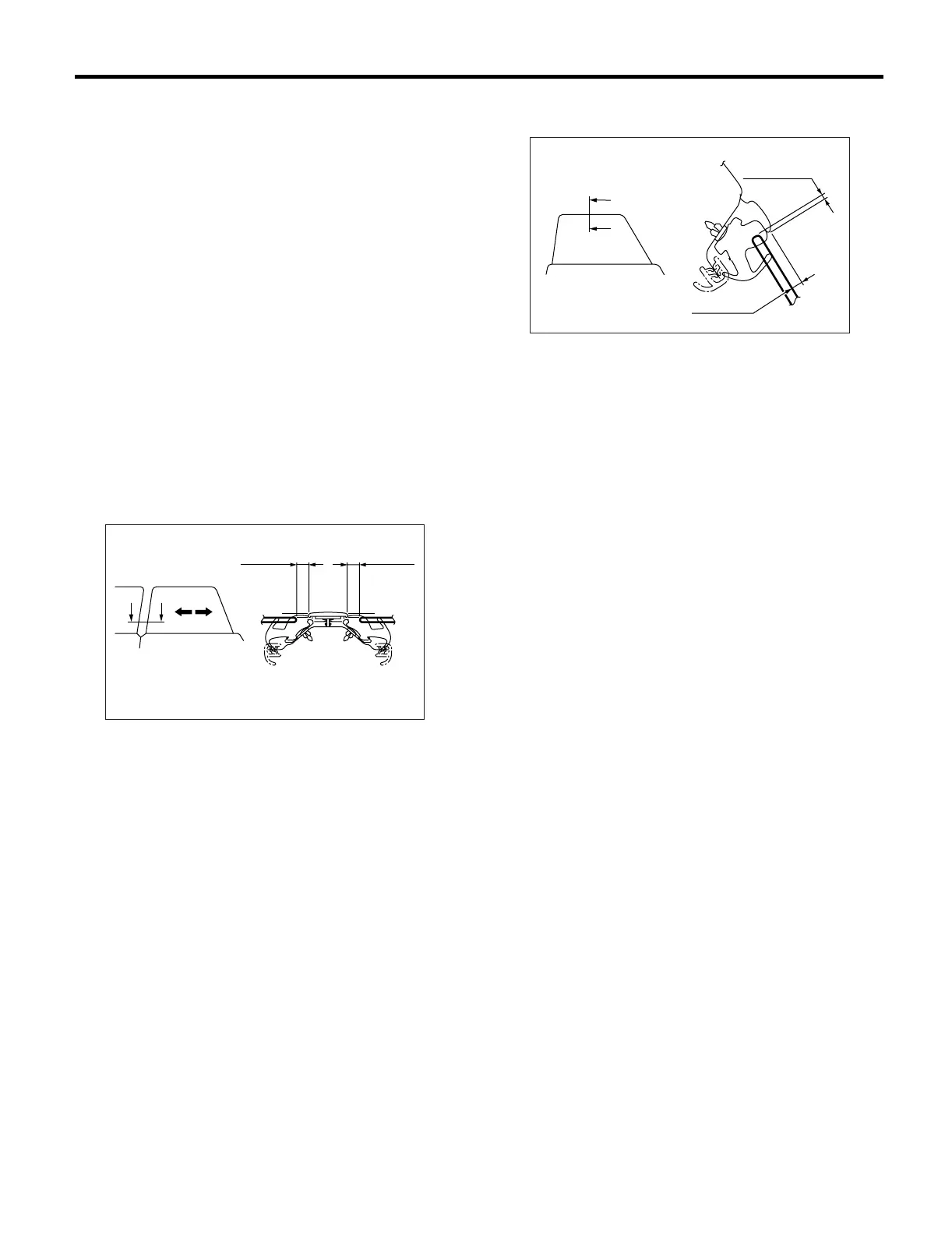

(1) 12±1 mm (0.472±0.039 in)
AA
A-A
(1)
(1)
GW-00067
(1) 3.5±0.8 mm (0.137±0.031 in)
(2) 9.5±1 mm (0.374±0.039 in)
A
A
(1)
(2)
GW-00068
