Subaru Forester 2004 - Page 357

BS-11
BODY STRUCTURE
Datum Dimensions
3. Datum Dimensions
A: MEASUREMENT
Refer to LOCATION for details on measurement
points. <Ref. to BS-3, LOCATION, Datum Points.>
NOTE:

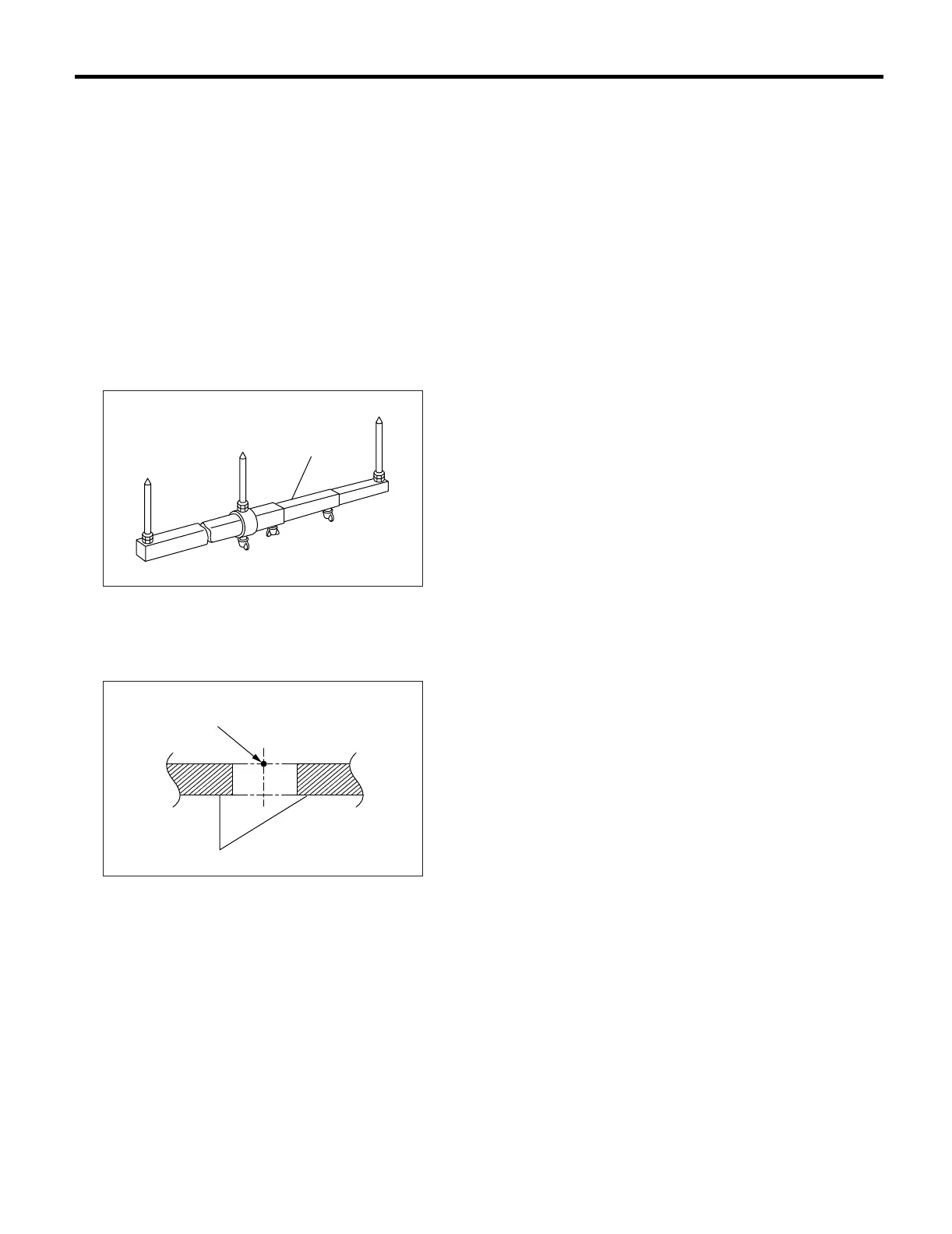

• Using a tram tracking gauge, measure all dimen-
sions.
• When using a tape measure, carefully measure
dimensions without letting the tape measure sag or
twist.
• Measure the linear dimensions between cores of
holes.
• Suffixes “RH” and “LH” indicate right-hand and
left-hand.
• Measure at the center of the circle around the
outside of the body panel.
(1) Tram tracking gauge
(1) Datum point
(2) Body panel
(3) Outside
BS-00033
(1)
BS-00034
(1)
(3)
(2)
