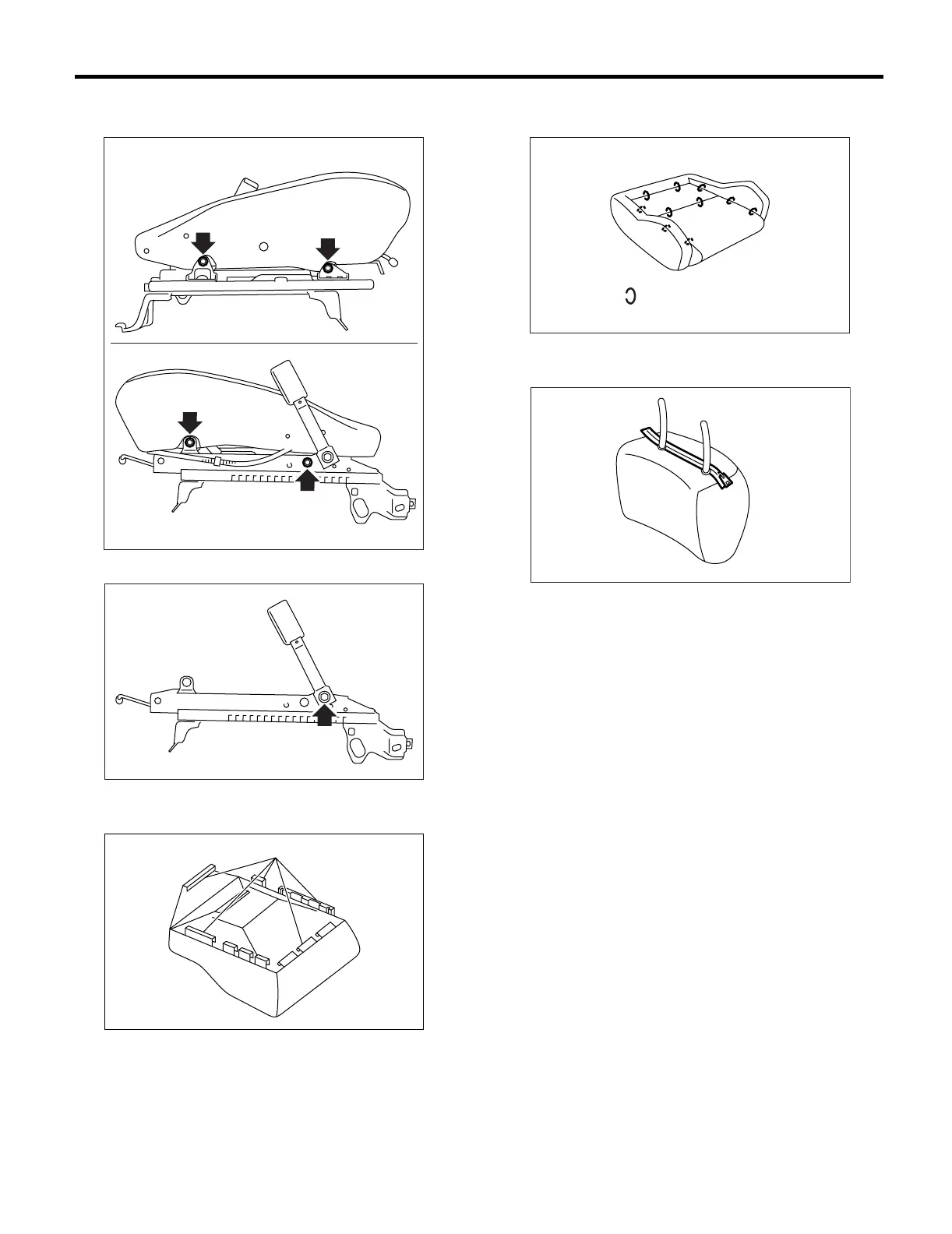

14) Loosen the bolts and nuts to remove the seat
cushion from slide rail.
15) Remove the inner belt.
16) Remove the hooks (A), and then remove the
seat cushion frame.
17) Remove the hog rings (A), and then remove the
seat cushion cover from seat cushion pad.
18) Open the zipper at bottom of headrest, and
then remove the headrest cover from headrest.
D: ASSEMBLY
1. DRIVER’S SIDE
Assemble in the reverse order of disassembly.
2. PASSENGER’S SIDE
Assemble in the reverse order of disassembly.
CAUTION:
Because it may cause the side airbag to acti-
vate incorrectly, observe the following steps to
install the side airbag correctly.
• Be careful not to dirty or damage the backrest
cover.
• Always use new hog rings.
• Secure the hog ring using hog ring pliers.
• Install the hog ring to its original position,
and not to twist or wrinkle the backrest cover.
Tightening torque:
Refer to “COMPONENT” of “General Descrip-
tion”. <Ref. to SE-2, FRONT SEAT, COMPO-
NENT, General Description.>
