SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)
Sunroof Lid
3. Sunroof Lid
A: REMOVAL
1) Completely close sunroof lid and open sunshade.
2) Detach the four covers (A) and then remove eight
nuts.
3) Carefully remove sunroof lid.
B: INSTALLATION
Install in the reverse order of removal.
C: ADJUSTMENT
1. ALIGNMENT OF HEIGHT BETWEEN
SUNROOF LID AND ROOF PANEL
Loosen sunroof lid nuts and then adjust height by add-
ing (max: four pieces) or extracting (min: zero piece)
shims (standard: two pieces) between sunroof lid and
roof panel.
Difference in height between sunroof lid and
roof panel
2.0
± 1.0 mm (0.079 ± 0.039 in)

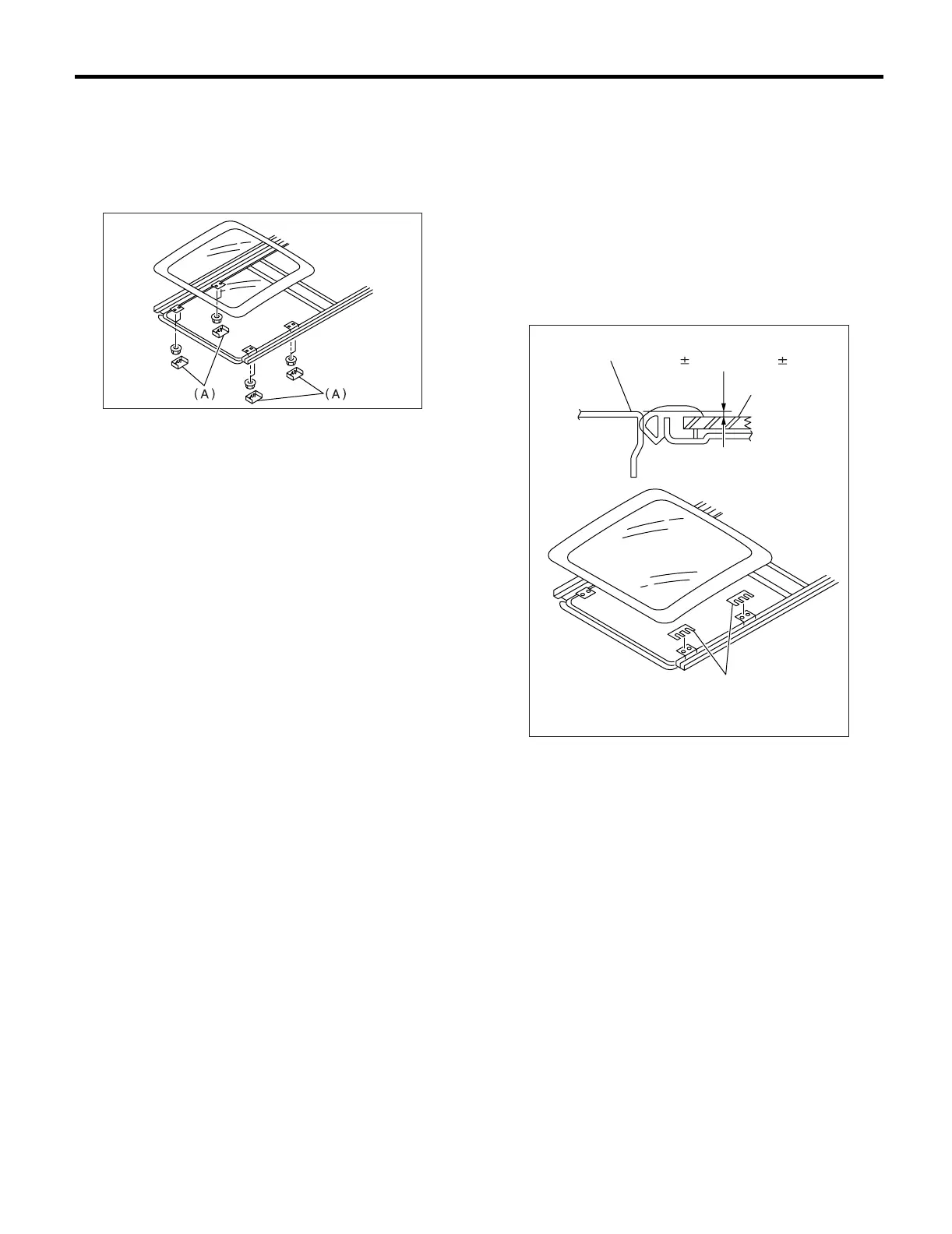

SR-00002
(A) Shim
(B) Sunroof lid
(C) Roof panel
SR-00003
2.0 1.0 mm (0.079 0.039 in)
(B)
(C)
