Subaru Forester 2004 - Page 442

SR-6
SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)
Sunroof Assembly

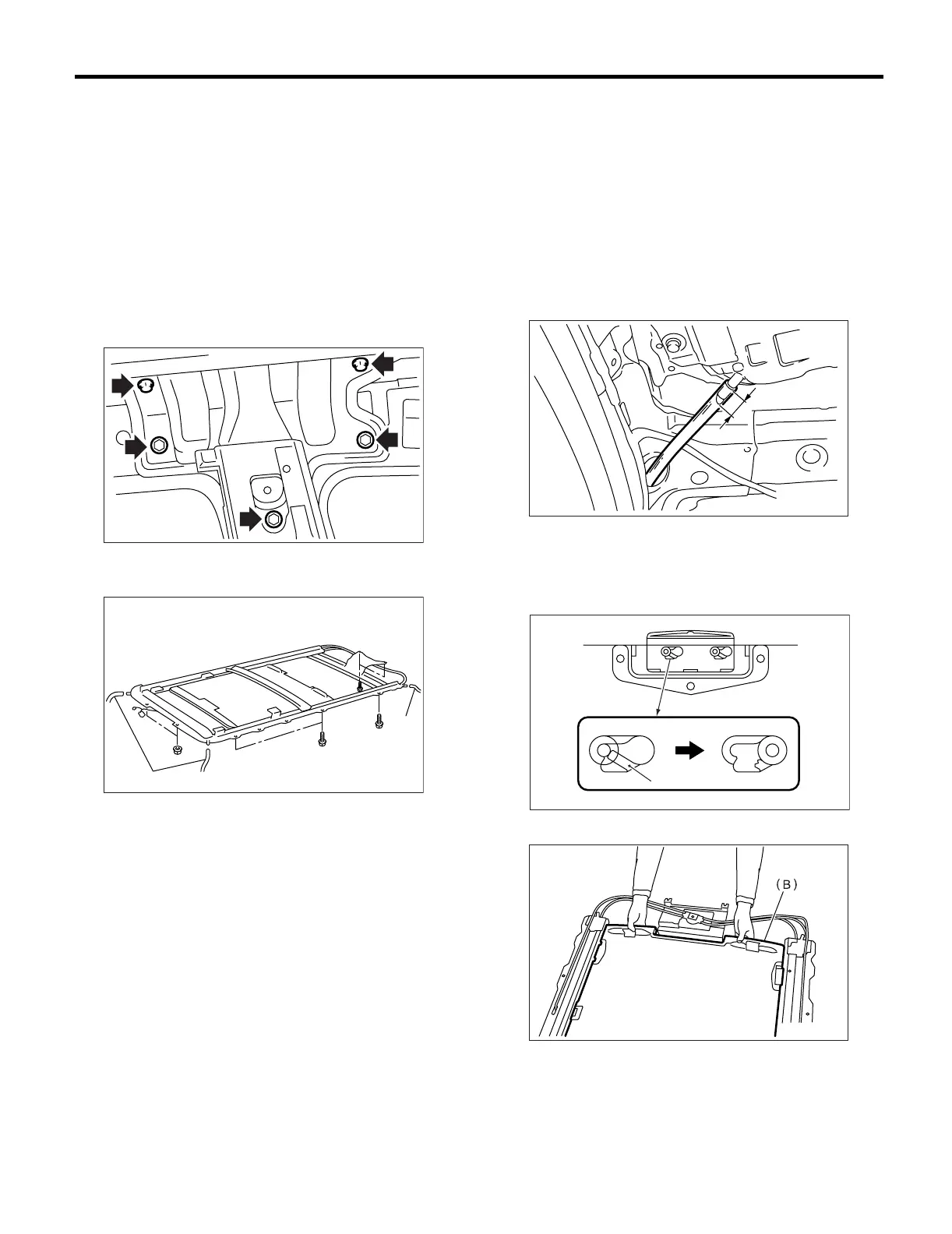

4. Sunroof Assembly
A: REMOVAL
1) Disconnect the ground cable from battery.
2) Remove roof trim. <Ref. to EI-47, REMOVAL,
Roof Trim.>
3) Remove sunroof lid. <Ref. to SR-5, REMOVAL,
Sunroof Lid.>
4) Disconnect the four drain tubes (A) from sunroof
frame.
5) Disconnect sunroof harness connector.
6) Remove the bolts, and then remove the frame
bracket.
7) Remove bolts and nuts and then detach sunroof
frame.
B: INSTALLATION
Install in the reverse order of removal.
CAUTION:
Be careful not to snag harness.
NOTE:
• Make sure to connect harness connector.
• When installing drain tube, insert it securely into
drain pipe.
Length A:
15 mm (0.59 in) or more
C: DISASSEMBLY
1) Remove sunroof frame.
2) Cut the pawl (A) of front sunshade RH.
3) Remove the front slider RH.
4) Pull out the sunshade (B) from sunroof frame.
D: ASSEMBLY
Assemble in the reverse order of disassembly.
SR-00014
SR-00015
(A)
(A)
SR-00005
A
SR-00006
(A)
SR-00007
