Sunroof Assembly
E: INSPECTION
1. CHECK FOR MOVEMENT OF SUN-
SHADE

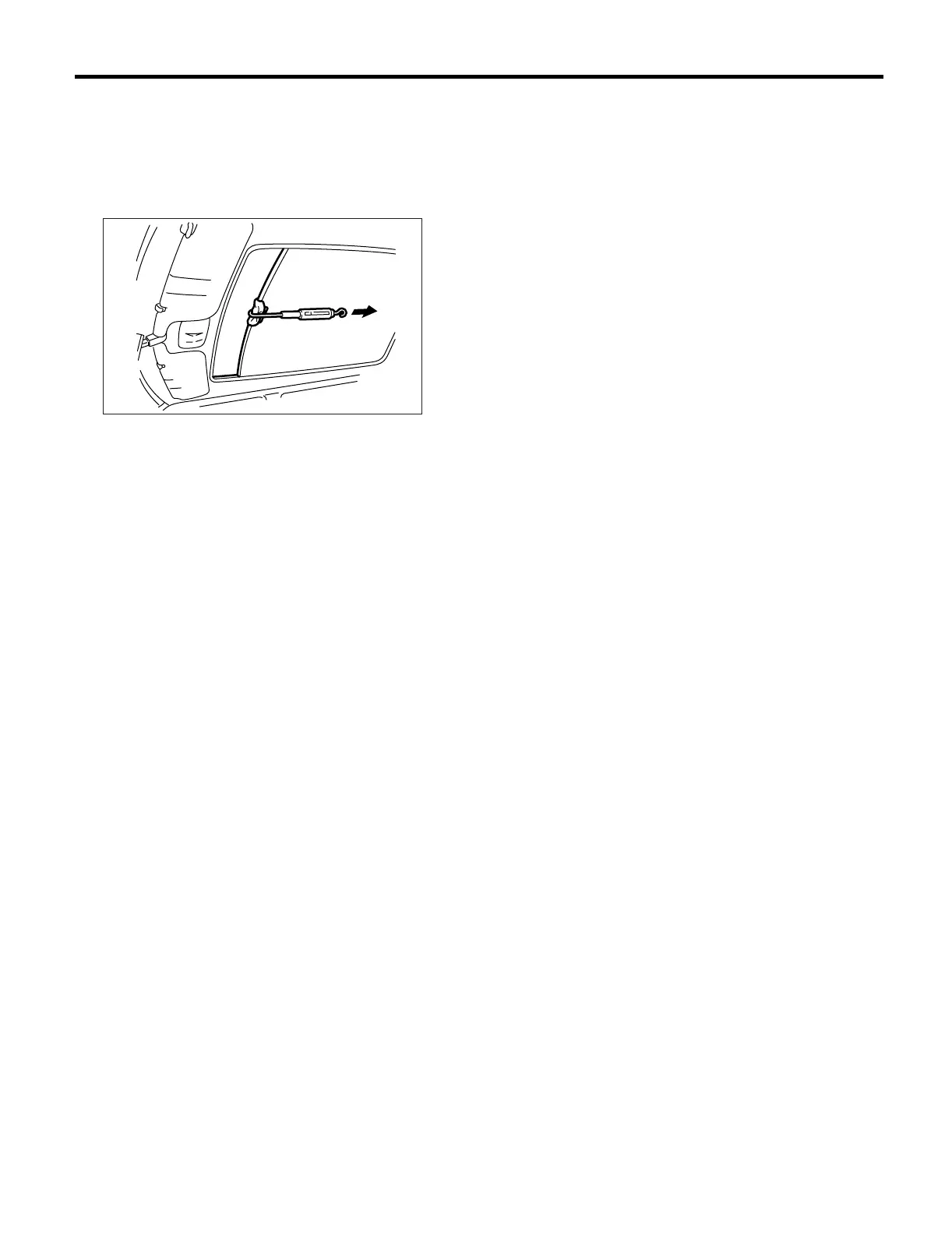

1) Attach a spring scale to sunshade edge using a
cloth.
2) Pull the spring scale to measure force required
to move the sunshade.
Force required to move sunshade:
25 N (2.5 kgf, 5.5 lb) or less
NOTE:
Considerable effort is required to start sunshade
moving, so take a scale reading while sunroof pan-
el is moving smoothly.
3) If force required exceeds specifications, check the
sunroof glass lid, sunshade, deflector, and guide rail
assembly for improper installation
