Pin # Signal
1 Differential +5 V
2 Differential -5 V
3 Ground
4 Single-ended 0-10 V
5 +5 V*
6 +10 V**
* This is a 5 V supply that can provide up to 100 mA for external use.
The supply is protected against short to ground and keeps the current below 400mA in a continuous short.
** This is a 10 V supply that can provide up to 25 mA for external use.
The supply is protected against short to ground and keeps the current below 100mA in a continuous short.

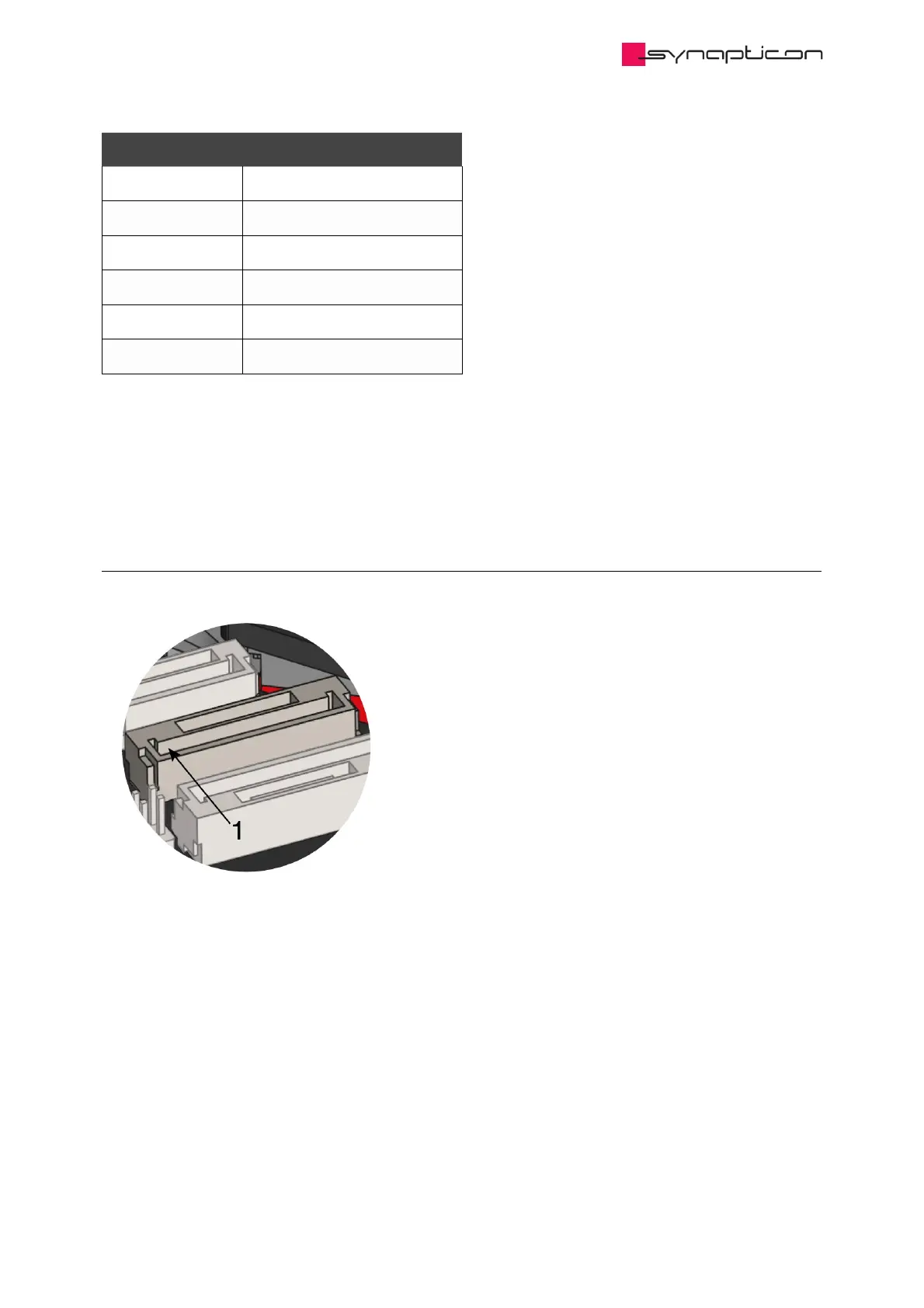

1.5.1.2.1.3.3 External Encoder
