*** This is a +5 V supply that can provide up to 250 mA for external use.
The supply is protected against short to ground and keeps the current below 400mA in a continuous short.
Note
The Digital I/Os are globally configurable as 3.3 V or 5 V.
This configuration is done in object 0x2214 “GPIO global options”
Note
Each Digital IO needs to be configured as a Digital Input or Output via object 0x2210 (“GPIO”).
The object can also be used to activate a pull-down resistor.
Changes may require to powercycle the servo drive.
1.5.2.2.1.2.5 EtherCAT / STO-SBC IN & OUT
Note

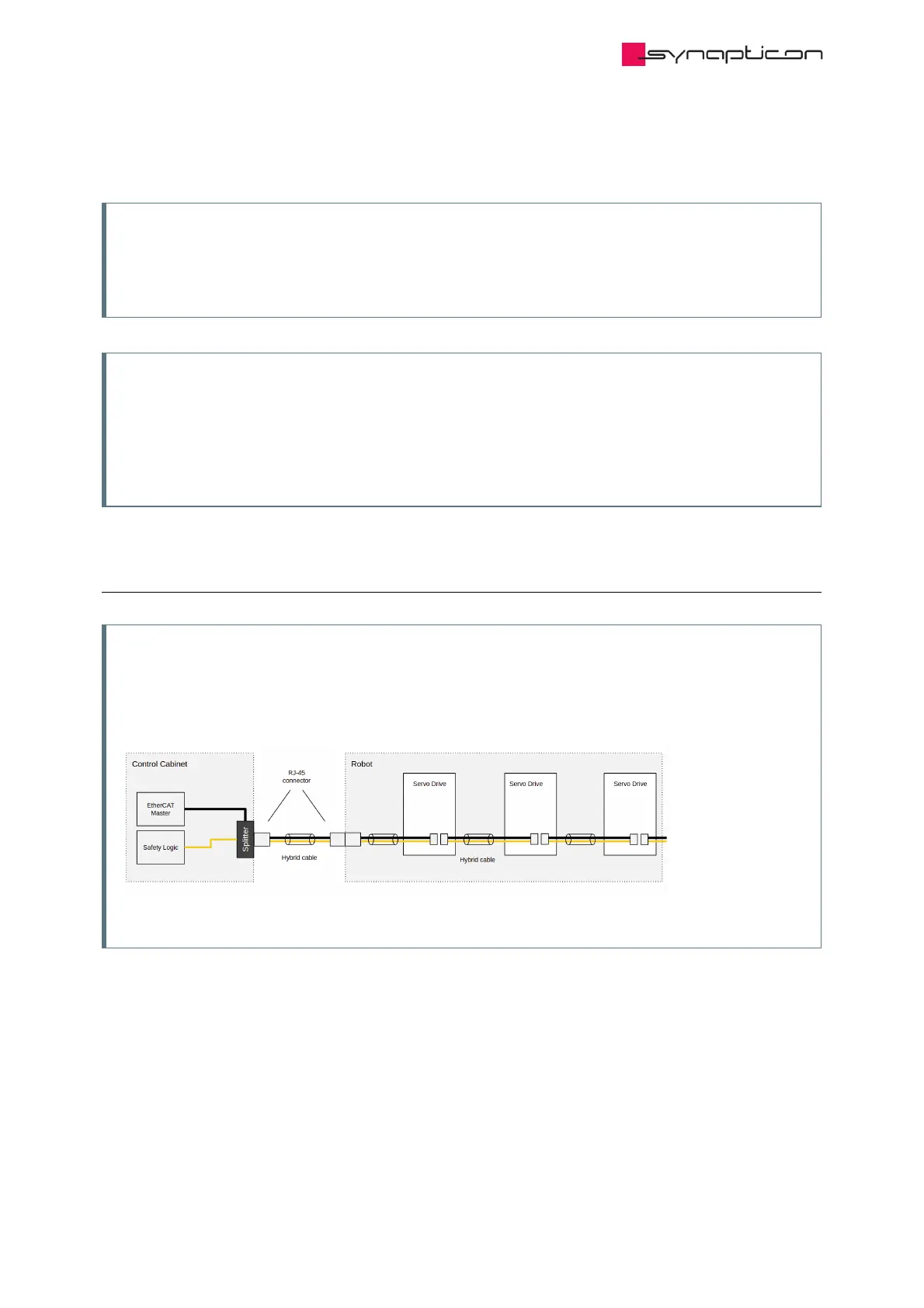

This connector features both pins, for EtherCAT as well as for STO/SBC to facilitate true daisy chaining.
Details for the required hybrid cable can be found here.
