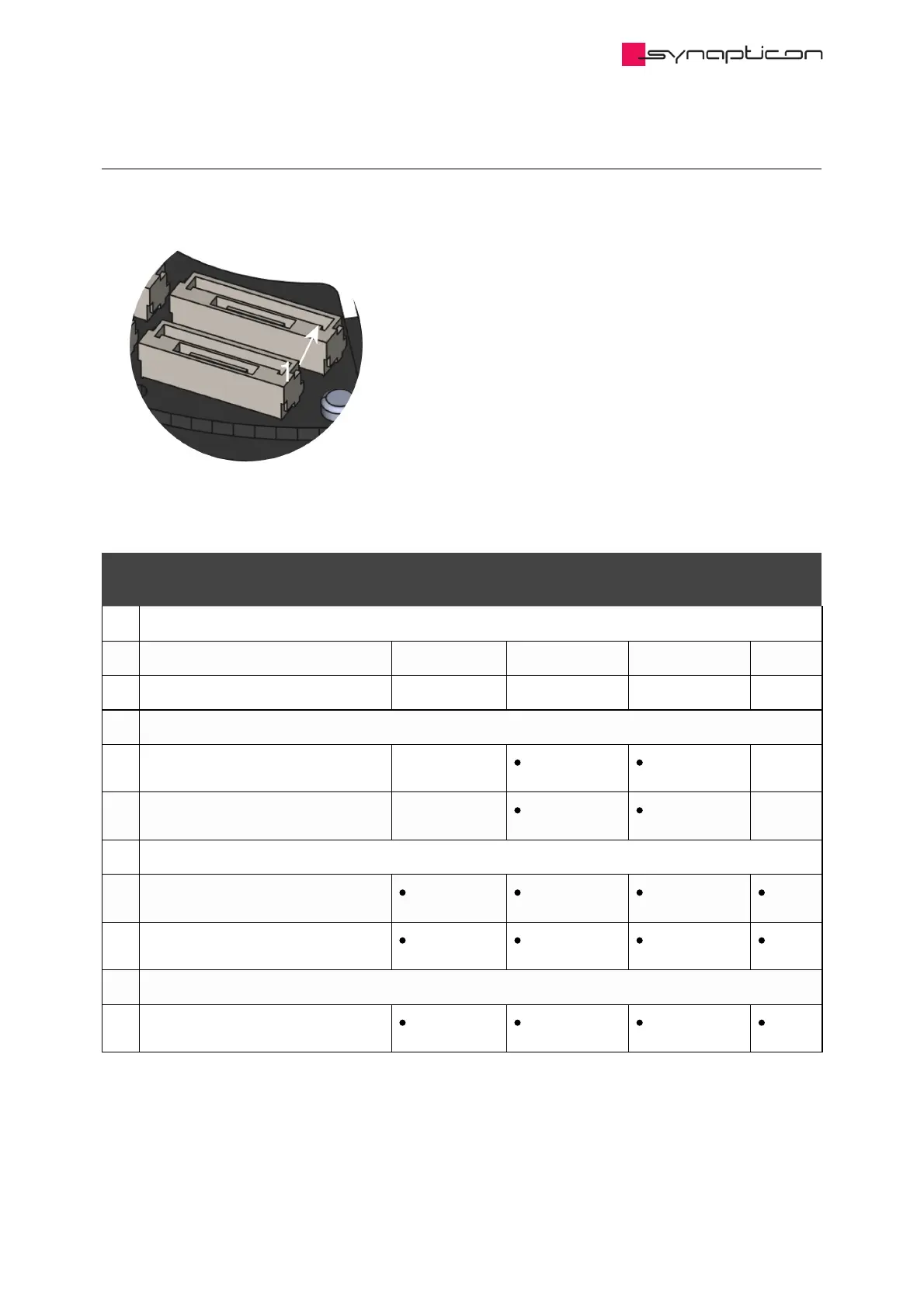

Circulo 9
Pin
#
GPIO REM14/16MT BiSS(LVTTL) SSI (LVTTL) SPI
1 +3.3 V OUT *
2 Digital I/O 1 (Fast Push-Pull) SCK SLO Data SCK
3 Digital I/O 2 (Fast Push-Pull) MISO MA Clock MISO
4 Ground
5 Digital I/O 3 (Fast Push-Pull) MOSI MOSI
6 Digital Output 4 (Slow Push-Pull) ** SS SS
7 +5 V OUT ***
8 Digital I/O 5 (Slow Bi-Directional)
9 Digital I/O 6 (Slow Bi-Directional)
10 Ground
11 Digital Input 7 (Slow 24 V)
* This is a +3.3 V supply that can provide up to 250 mA for external use.
The supply is protected against short to ground and keeps the current below 400mA in a continuous short.
** Current output capacity of all configured digital outputs is ±20 mA (Sink and source)
