1.5.2.2.1.4.2 Pinout of the connectors

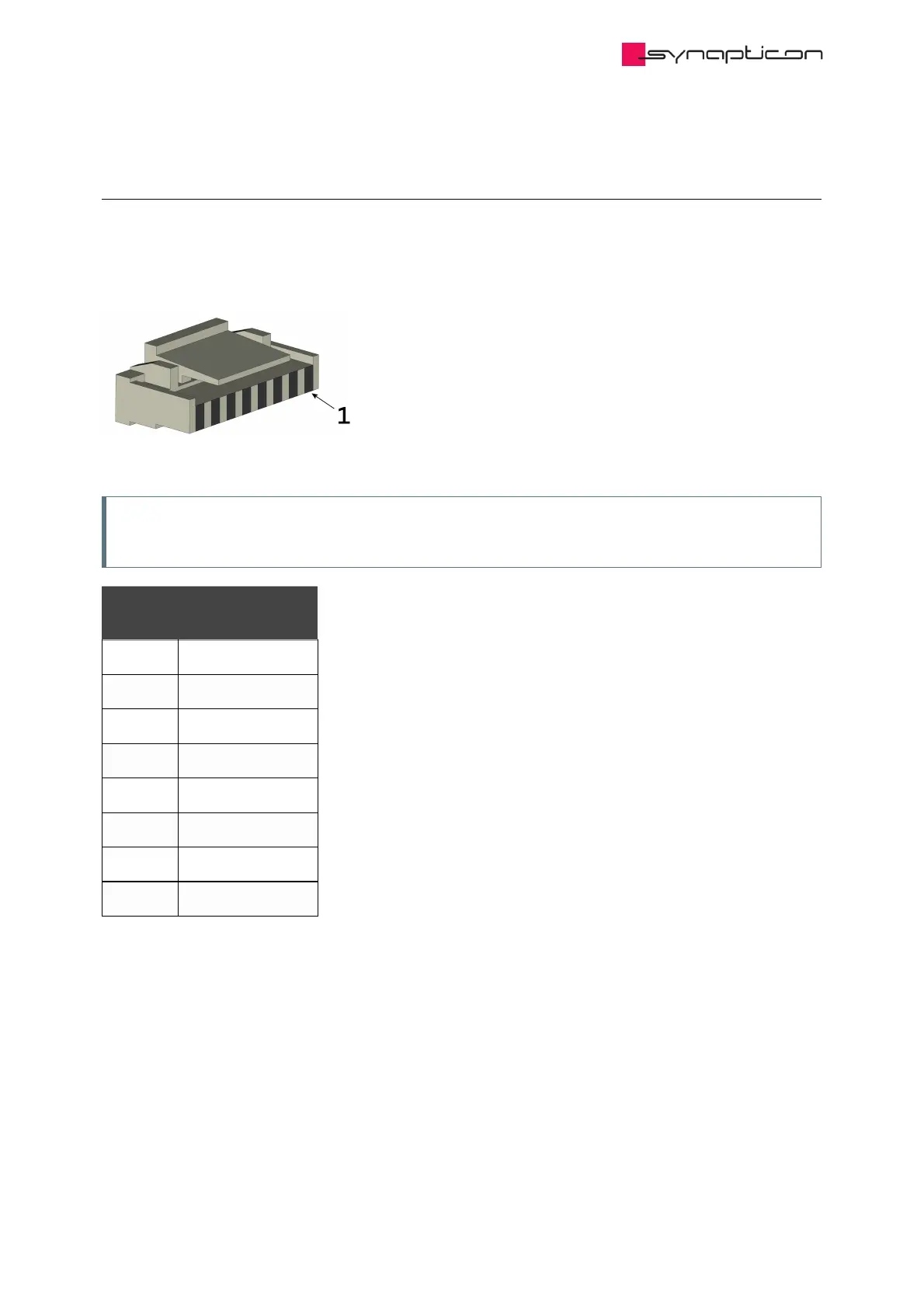

1.5.2.2.1.4.2.1 Hybrid connector (JST GHR-08V-S)
Note
This connector is on the drive side of the Y-Splitter cable and on both sides of the Drive-to-Drive cable.
Pin/Wire
#
Function
1 STO-SBC1
2 STO-SBC2
3 Safety Ground
4 RX_N
5 RX_P
6 TX_N
7 TX_P
8 PE
