1.5.2.2.1.4.2.2 STO/SBC Connections
Wire # Function
1 STO-SBC1
2 STO-SBC2
3 Safety Ground
Note
On the Y-Splitter cable these wires are open strands at the master side.
1.5.2.2.1.4.2.3 EtherCAT Connection
Note

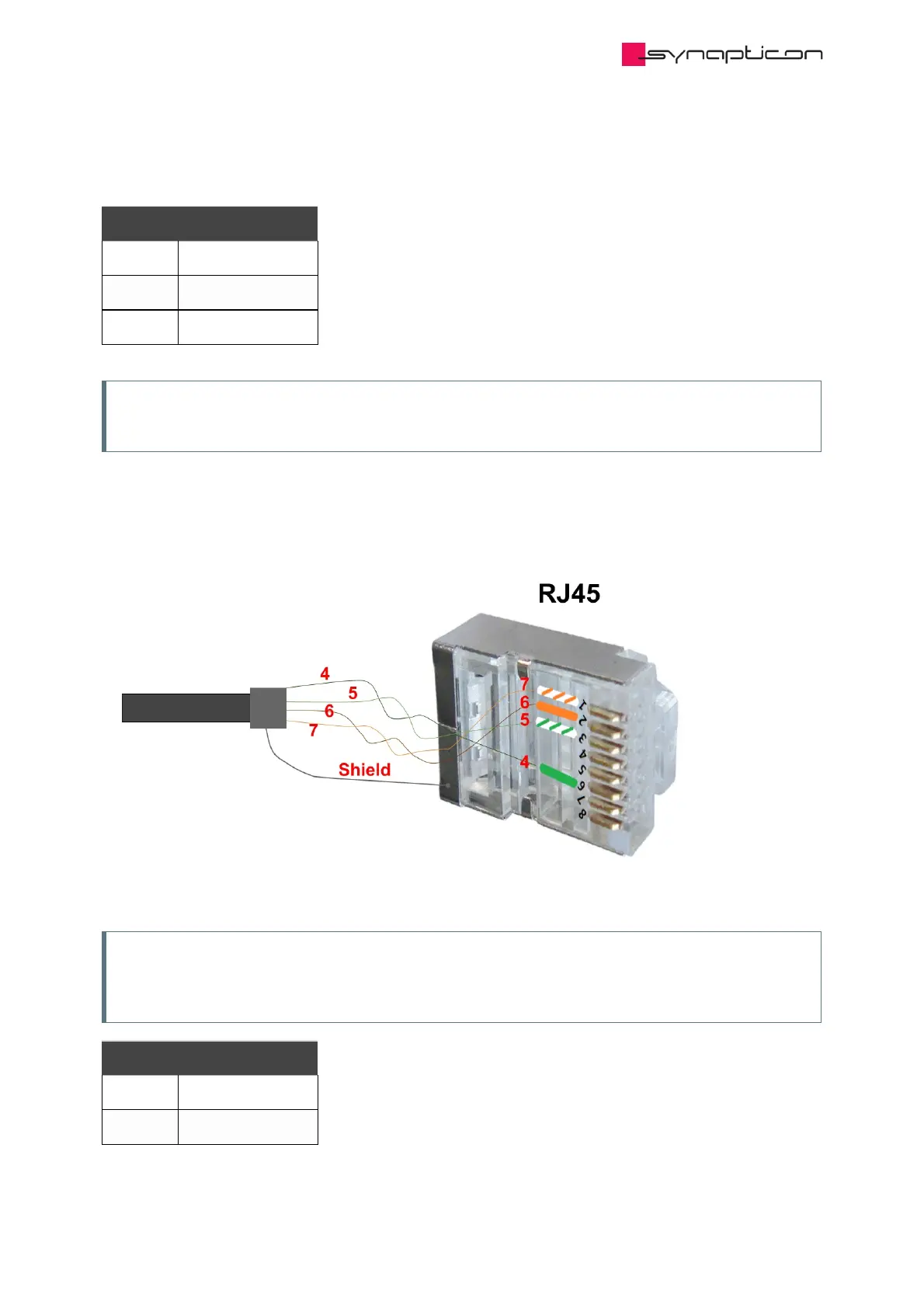

The Pins in the table below are the standard pins of a RJ45 while the red numbers in the image indicate
the reference pins of the hybrid connector.
Pin # Function
1 TX_P
2 TX_N
