Takeuchi TL150 Workshop Manual

IV-103

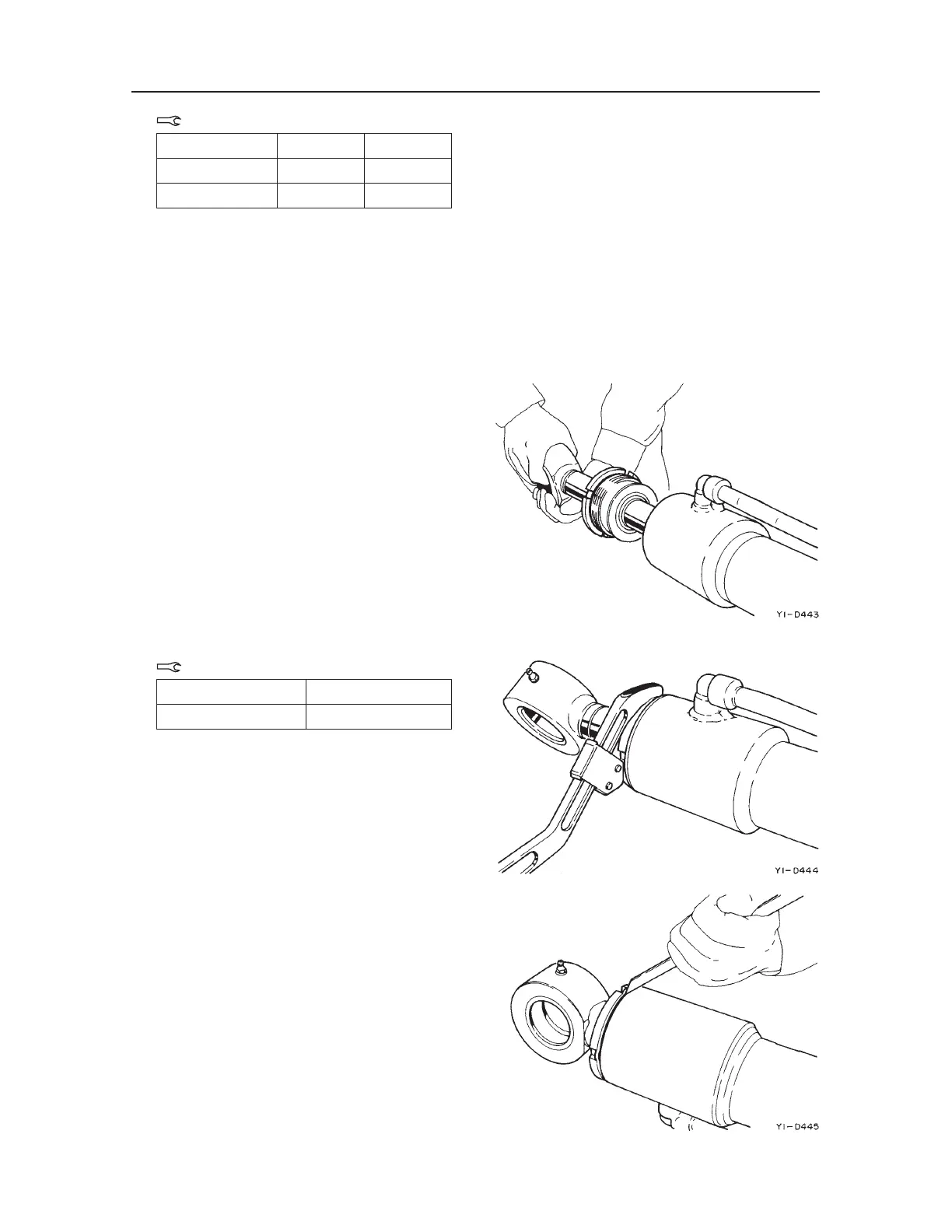

HYDRAULIC UNITSCYLINDERS
Piston Nut, Set Screw
Unit: N·m
Place Piston Nut Set Screw
Arm Cylinder 784 6.8
Bucket Cylinder 687 6.8
Cylinder Assembly
1. Fasten the tube in a horizontal position, then
insert the piston rod assembly in the tube.
• During insertion, align the center of the
piston rod with the center of the tube, insert-
ing it straight so that the seals will not be
scratched.
2. Tighten the rod cover.
Rod Cover
Unit: N·m
Arm Cylinder 324
Bucket Cylinder 324
3. Bend the lock rib on the tube down in a notch of
the rod cover to lock it.
