Takeuchi TL150 Workshop Manual

IV-102
HYDRAULIC UNITSCYLINDERS

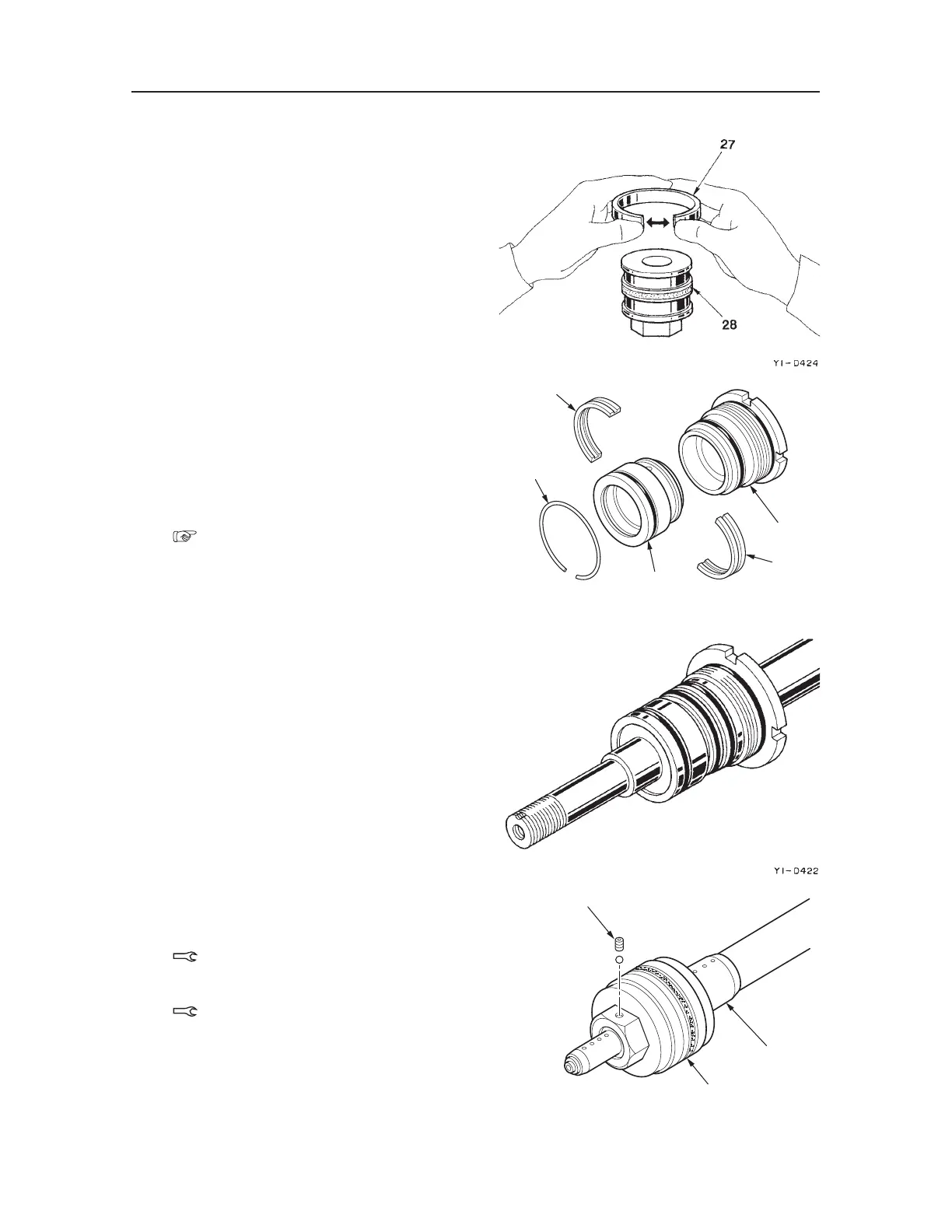

2. Install the wear ring (27).
a. Spread the wear ring (27) at the cut portion
the minimum amount necessary, installing it
on the piston from the shaft direction.
Piston Rod Assembly
1. Assemble the rod cover assembly (6) and re-
tainer assembly (7).
a. Combine the retainer assembly (7) and rod
cover (6), fit the divided connector (9) around
both sides, then fasten it with the stopper (8).
b. Assemble the retainer assembly (7) with ref
-
erence to the item.
“IV-87~88”
2. Insert the rod cover assembled above into the
piston rod.
3. Install the piston unit.
a. Fit the cushion bearing (3) and piston (2) and
tighten them.
Piston: Refer to the table below.
b. Insert the ball, tighten the set screw (1) and
stake at 2 points with a punch.
Set Screw: Refer to the table below.
E5D412
6
9
7
8
9
E5D408
1
3
2

Takeuchi TL150 Specifications

General

Travel Speed - High	11.2 mph (18 km/h)
Max Travel Speed	12.4 km/h
Width	1880 mm
Height	2320 mm
Lift Height	10.5 ft (3.2 m)
