Takeuchi TL150 Workshop Manual

IV-101
HYDRAULIC UNITS
CYLINDERS

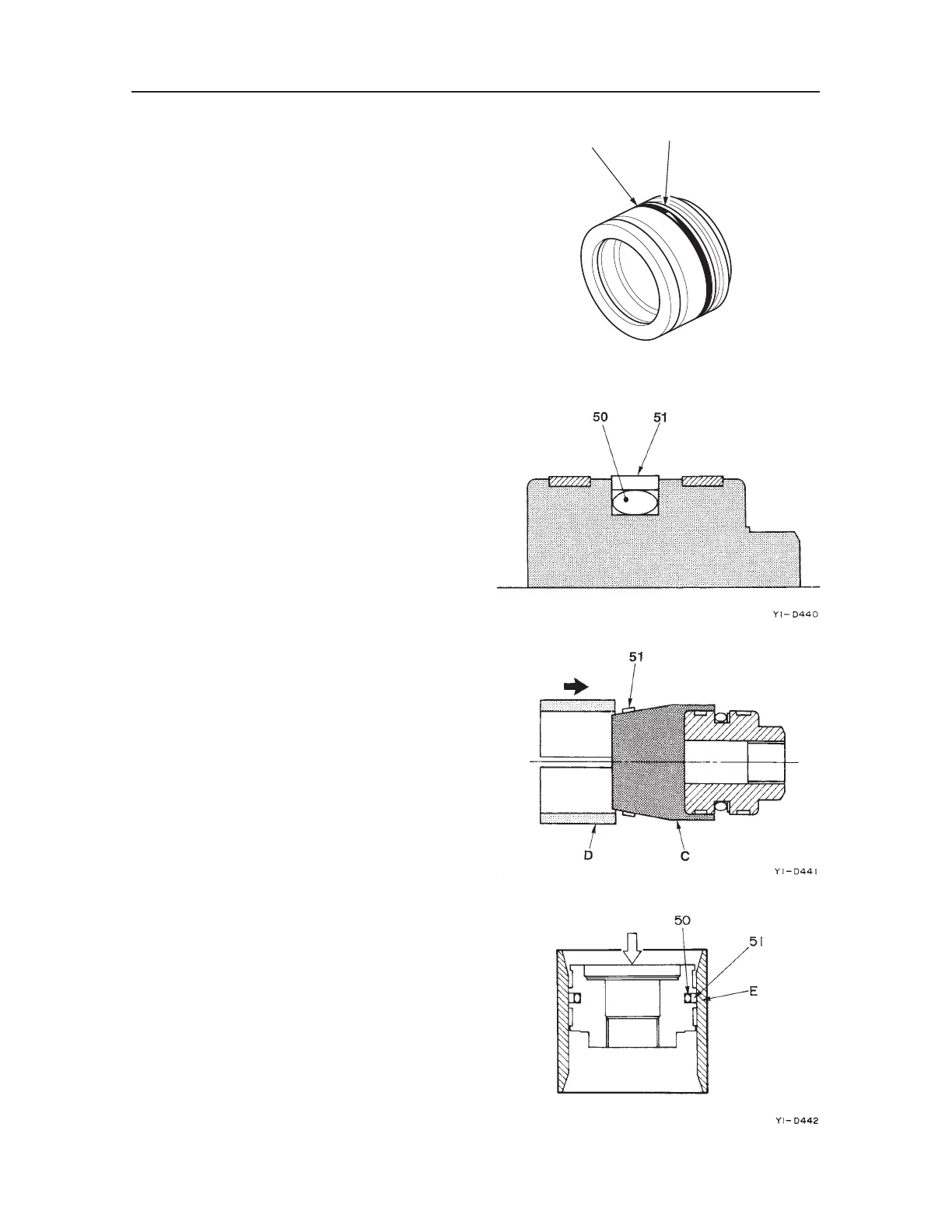

2. Install the O-ring (14) and the backup ring (15)
on the outer circumference of the retainer.
Piston
1. Assemble the piston assembly.
a. Fit the O-ring (50).
• If the O-ring is twisted after it is fitted, cor
-
rect it.
b. Cover the piston with the sliding jig (C), then
using the fitting jig (D), insert the slipper ring
(51) rapidly.
c. Since the slipper ring (51) is extended when it
is installed, correct it using the corrective jig
(E).
E5D428
14
15

Takeuchi TL150 Specifications

General

Travel Speed - High	11.2 mph (18 km/h)
Max Travel Speed	12.4 km/h
Width	1880 mm
Height	2320 mm
Lift Height	10.5 ft (3.2 m)
