Takeuchi TL150 Workshop Manual

IV-124
HYDRAULIC UNITSTRAVEL MOTOR

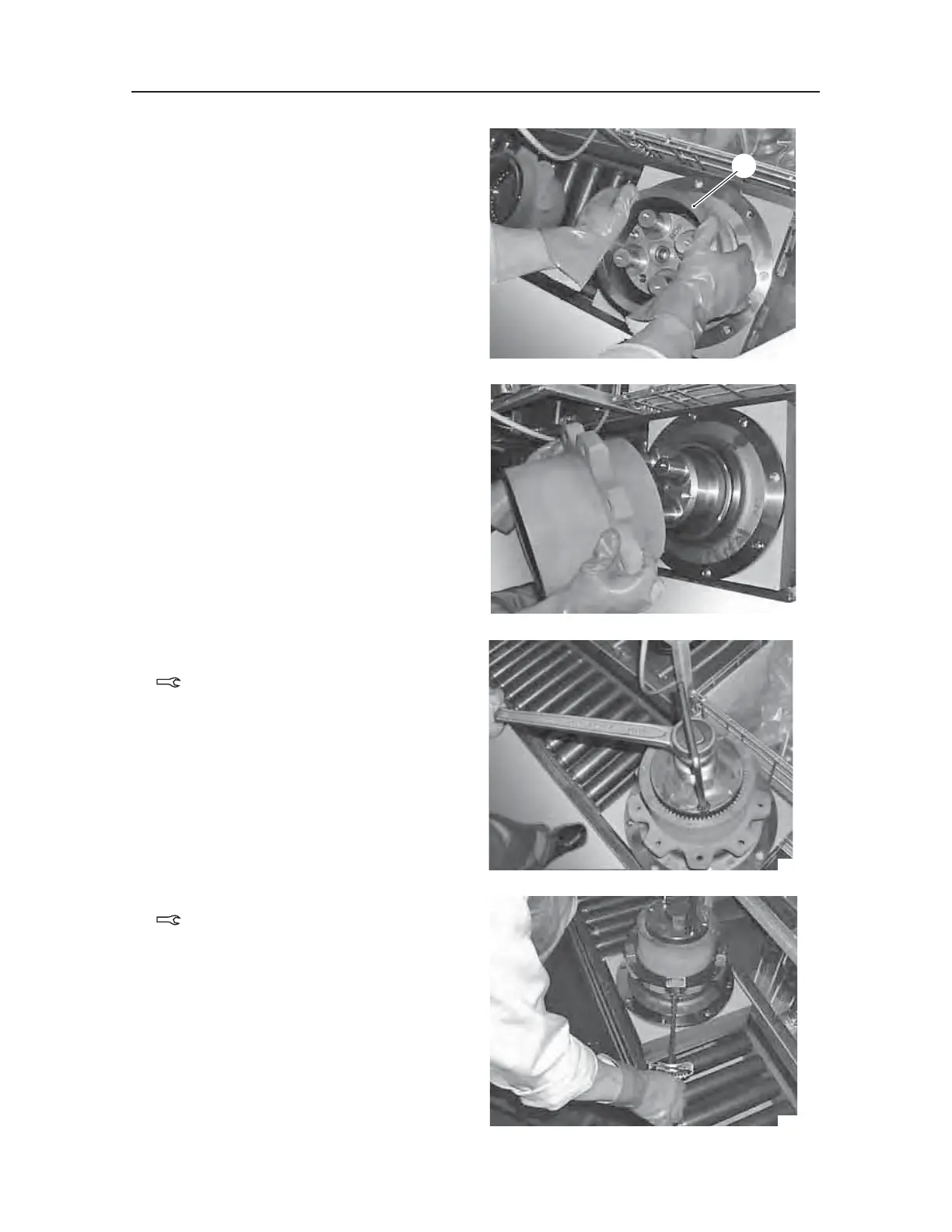

6. Press-fit the guide jig (G) with the jig (H), and
then install the floating seal (18).
• Apply gear oil on the sliding surface. Do not
apply grease.
Important:
• Be sure not to damage the sliding surface.
• The floating seal must be mounted horizon
-
tally.
7. Install the housing (1) on the flange holder.
8. Fit the ring nut (8).
• Use the jig (C).
280 ±60 N·m
9. Check the rotational torque of the housing (1).
Housing rotational torque: 11 to 15 N·m
4MAA27Z
H
4MAA28Z
4MAA21Z
4MAA29Z
