Takeuchi TL150 Workshop Manual

IV-123
HYDRAULIC UNITS
TRAVEL MOTOR
Assembly

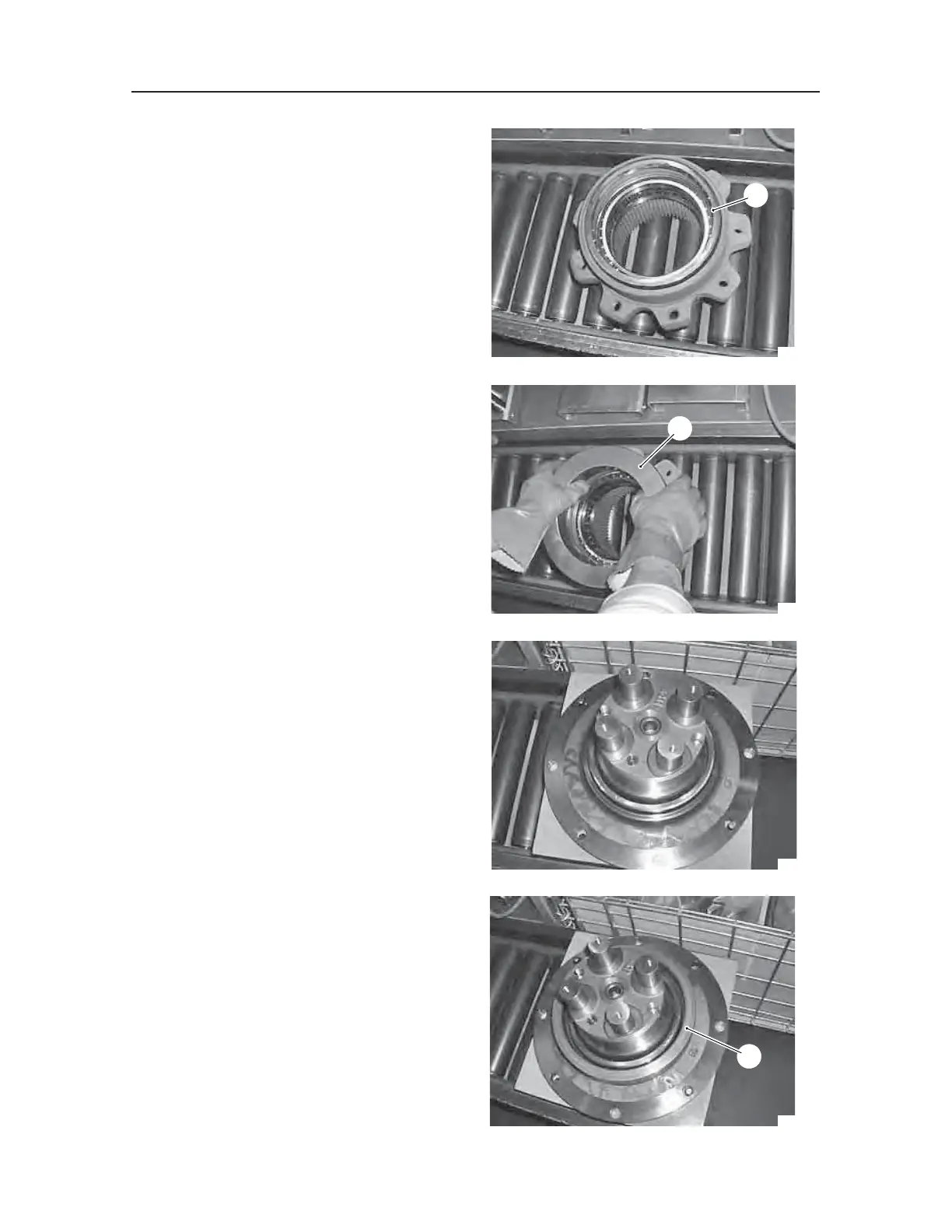

Floating seal
1. Place the floating seal (18) in the housing.
• Apply gear oil on the O-ring.
2. Place the guide jig (E).
3. Fit the floating seal (18) by pressing the guide
jig (E) with the jig (F).
• Apply gear oil on the sliding surface.
Important:
• Be sure not to damage the sliding surface.
• The floating seal must be mounted horizon
-
tally.
4. Place the floating seal (18) in the flange holder.
• Apply gear oil on the O-ring.
5. Place the guide jig (G) in the flange holder.
4MAA23Z
E
4MAA24Z
F
4MAA25Z
4MAA26Z
G

Takeuchi TL150 Specifications

General

Travel Speed - High	11.2 mph (18 km/h)
Max Travel Speed	12.4 km/h
Width	1880 mm
Height	2320 mm
Lift Height	10.5 ft (3.2 m)
