Takeuchi TL150 Workshop Manual

IV-126
HYDRAULIC UNITS
TRAVEL MOTOR

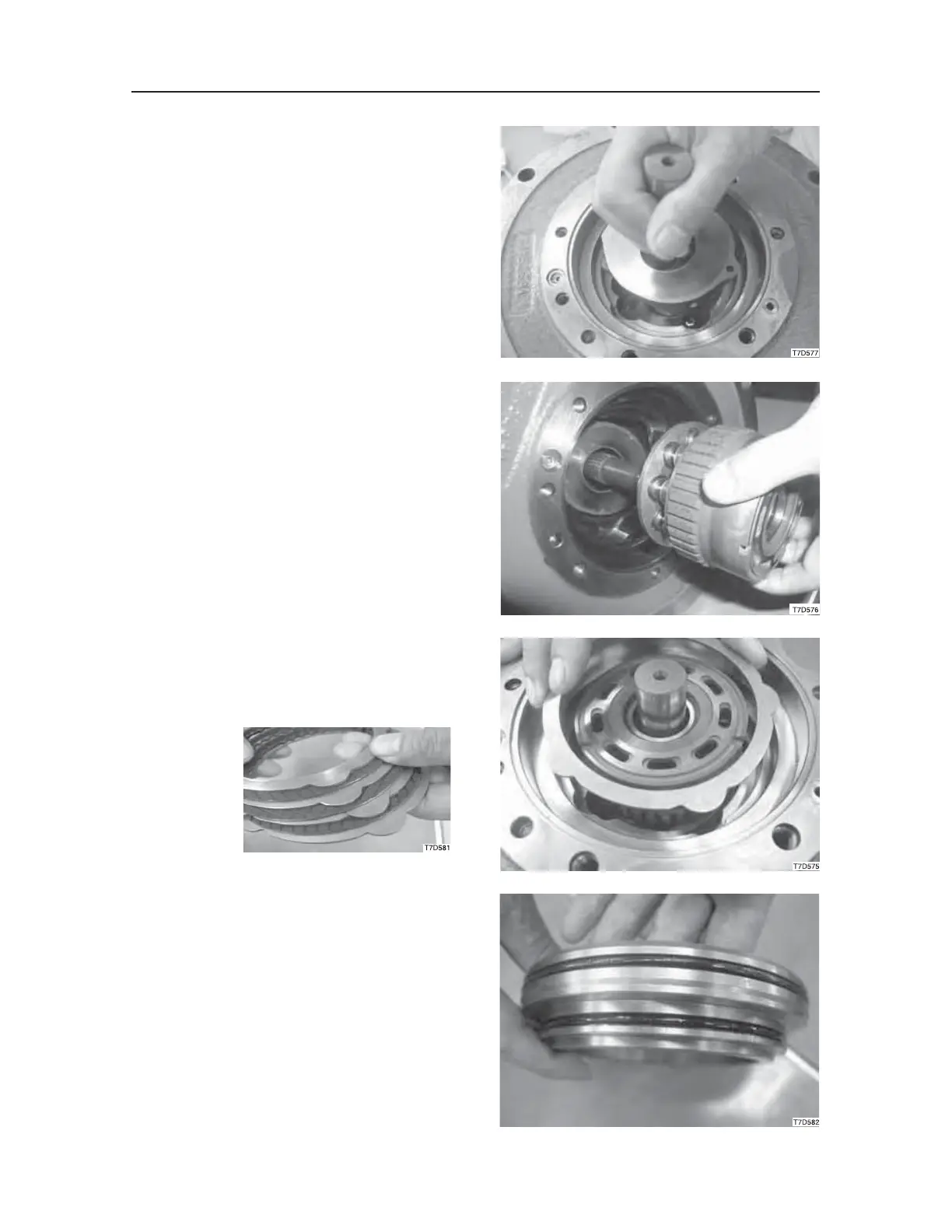

4. Install the shaft (7) and the swash plate (37).
• Apply hydraulic oil on the sliding surface of
the swash plate.
5. Install the cylinder block assembly (10).
• Use the spline of the shaft as a guide.
6. Install the center discs (29) and the friction discs
(30) alternately.
• The friction discs must be engaged with the
spline of the cylinder block.
7. Install the O-rings (33) and (34) on the brake
piston (31).
• Lightly apply gear oil on the O-rings.
